REMOVE OF TRIAC
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect 3 lead wires from the triac.
3. Remove 2 screws holding the triac to the heater tank ass’y.
4. Now the triac is free.
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect reed SW. lead wires from the PCB control ass’y.
3. Remove 2 screws holding the reed SW. from the body valve.
4. Now the reed SW. is free.
Note : Tighten the mounting screws of the reed switch at the specied torque ; 3-4 kgf.cm.
REMOVE OF REED SWITCH

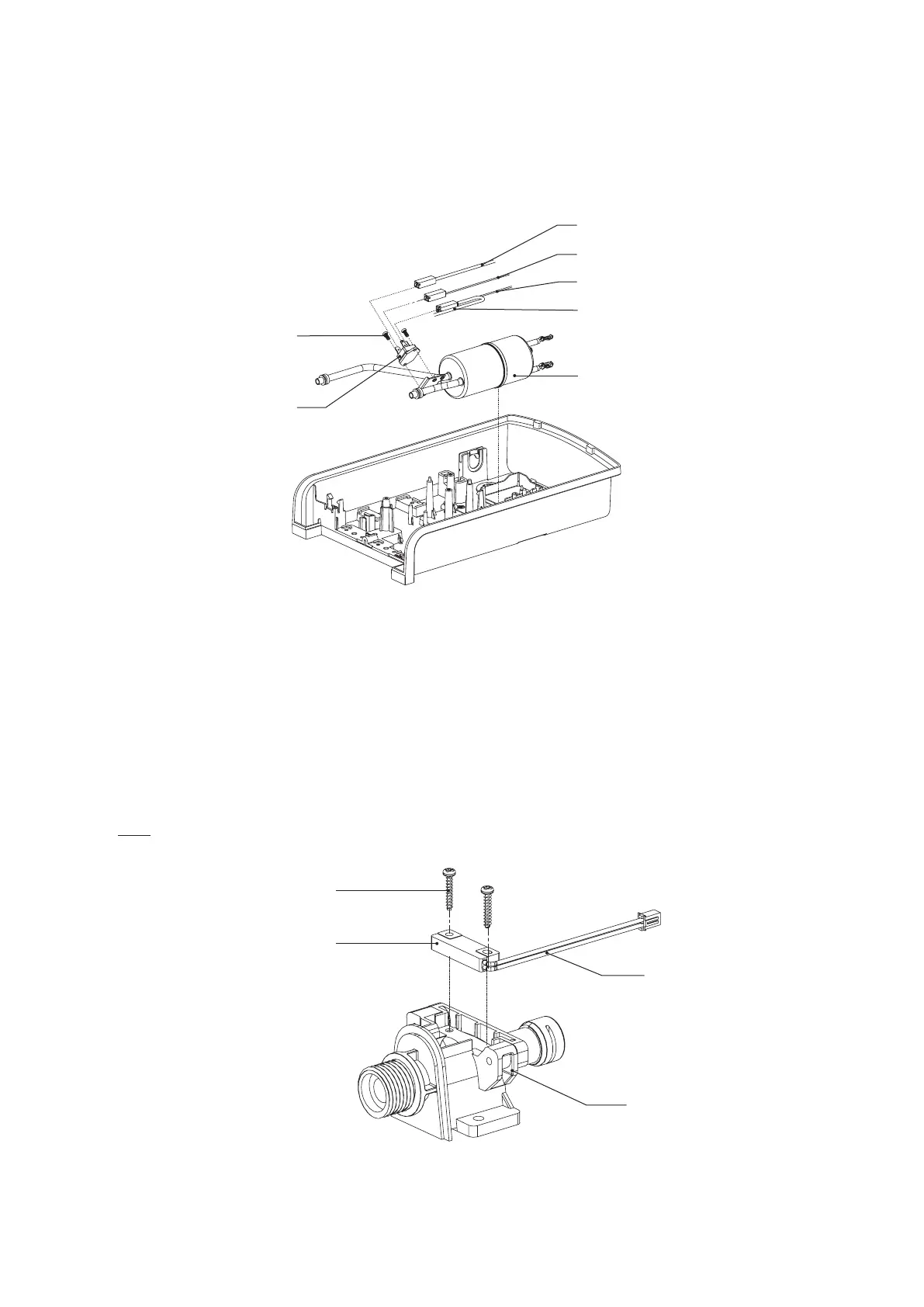

Fig. 23
Reed SW. lead wire
Fig. 22
Breaker lead wire
Heater tank
Screw
Triac
White lead wire
Triac lead wire
Brown lead wire
Body valve
Screw
Reed SW.
