Sharp WH-HOT HOT - Remove of Body Valve Assy and Water Outlet; Remove of Heater Tank Assy

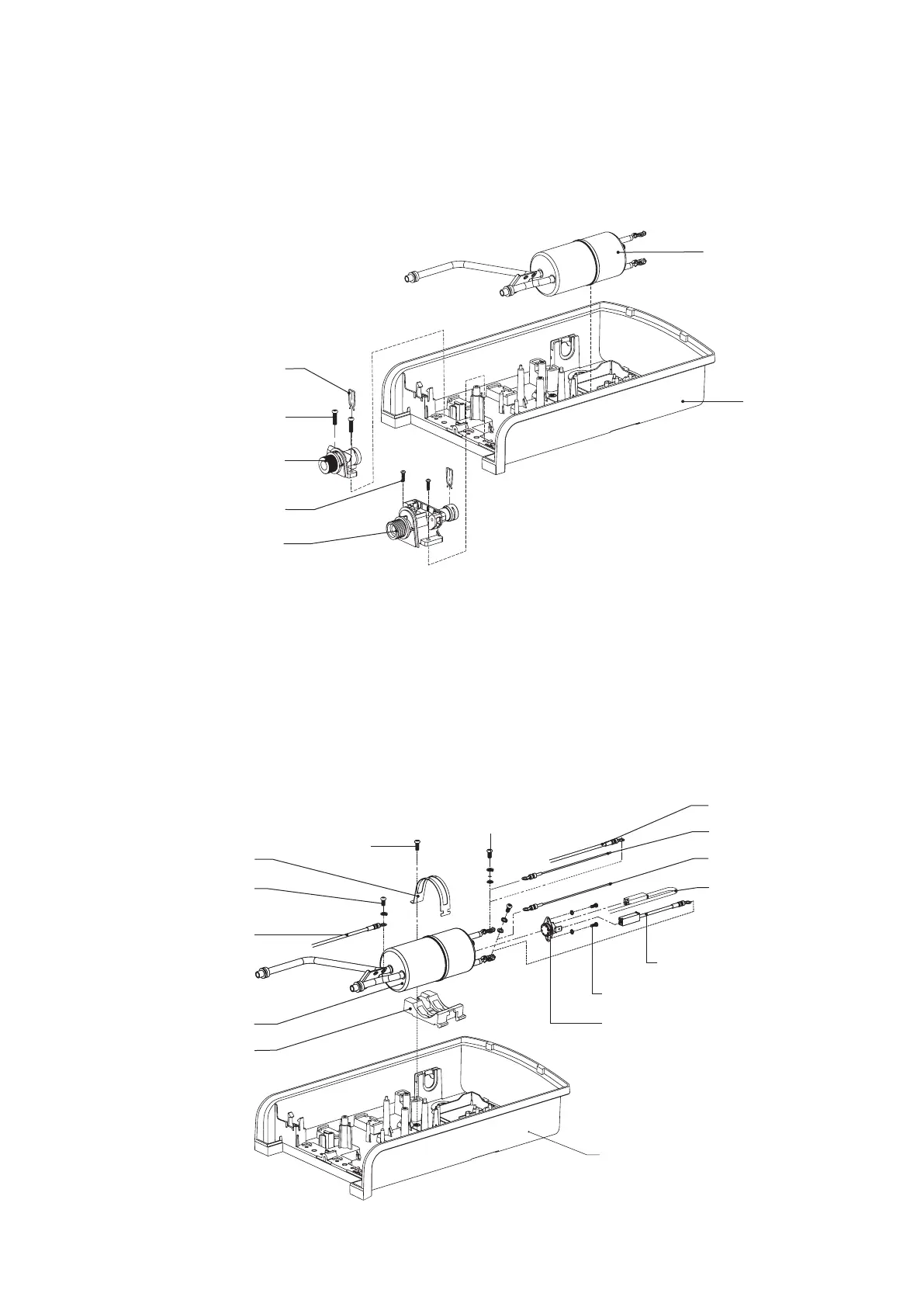

Fig. 24
12
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Remove the reed SW. in accordance with “REMOVE OF REED SWITCH”.
3. Detach 2 clamping springs holding the body valve ass’y and the water outlet to the heater tank ass’y.
4. Remove 2 screws holding the body valve ass’y.
5. Remove 2 screws holding the water outlet.
6. Now the body valve ass’y and the water outlet are free.
REMOVE OF BODY VALVE ASS’Y AND WATER OUTLET
1. Remove the triac in accordance with “REMOVE OF TRIAC”.
2. Remove the body valve ass’y and the water outlet in accordance with “REMOVE OF BODY VALVE ASS’Y
and WATER OUTLET”.
3. Remove the screw to L-Wire Earth from heater tank ass’y.
4. Remove the screw holding cable tie from the heater tank support.
5. Remove 2 screws holding triac lead wire (brown) and thermostat lead wire (black) to the heater tank ass’y.
6. Remove 2 screws holding the thermostat to the heater tank ass’y.
7. Now the heater tank ass’y is free.
REMOVE OF HEATER TANK ASS’Y
Back cover
Thermostat lead
wire black
Screw
Screw
L-wire earth
Brown lead wire
Triac lead wire brown
Black lead wire
Breaker lead
wire black
Screw
Screw
Cable tie
Heater tank support
Heater tank ass’y
Thermostat
Back cover
Heater tank
Water outlet
Screw
Clamping spring
Body valve ass’y
Screw
Fig. 25
