14

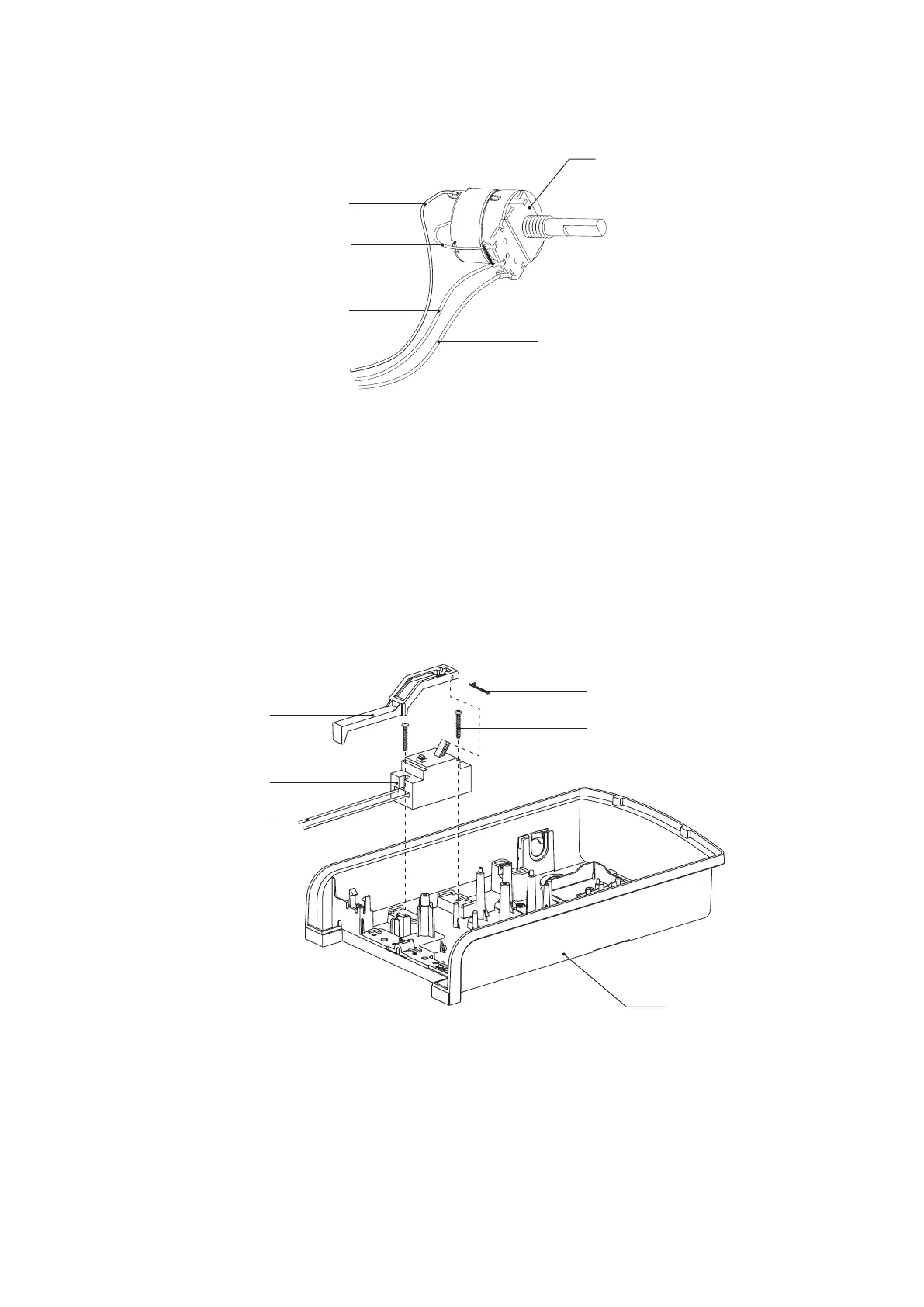

1. Remove the body in accordance with “REMOVE OF BODY”.
2. Remove split pin holding the breaker angle support to the breaker.
3. Remove 2 screws holding 2 breaker lead wires to the breaker.
4. Remove 2 screws holding the breaker to the back cover.
5. Now the breaker is free.
REMOVE OF BREAKER
Note : For disassembly
Cut off the lead wire from PCB control ass’y.
Volume SW.
Blue lead wire
Back cover
Screw
Split pin
Breaker angle support
Breaker
Breaker lead wire
White lead wire
Orange lead wire
Fig. 29
Fig. 28
Orange lead wire
To Next Page
