Sharp WQ-T281Z - Notes on Schematic Diagram

WQ-T2812

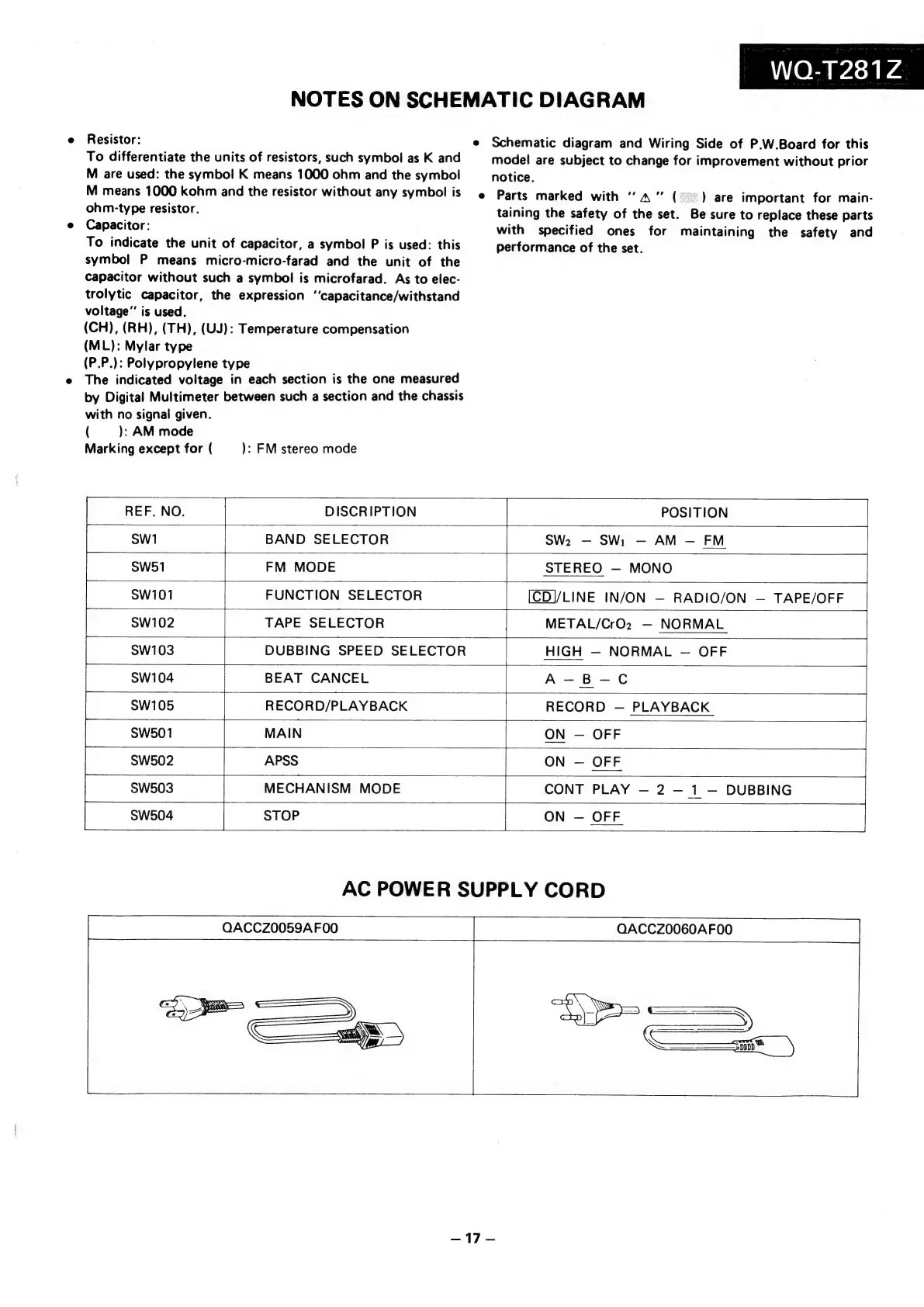

NOTES ON SCHEMATIC DIAGRAM
e Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor.
e Capacitor:
To
indicate
the
unit
of
capacitor,
a
symbol
P
is
used:
this
symbol P means micro-micro-farad and the unit of the
Capacitor without such a symbol is microfarad. As to elec-
trolytic capacitor, the expression ‘‘capacitance/withstand
voltage”’ is used.
(CH), (RH), (TH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
e The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chassis
with no signal given.
( ): AM mode
Marking except for (
REF. NO.
): FM stereo mode
DISCRIPTION
BAND SELECTOR
FM MODE
e Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
e
Parts
marked
with
“A”
(:
taining
the
safety
of
the
set.
with
specified
ones
for
performance
of
the
set.
.) are important for main-
Be sure to replace these parts
maintaining the safety and
POSITION
SW. — SWi — AM — FM
STEREO — MONO
FUNCTION SELECTOR
TAPE SELECTOR
BEAT CANCEL
RECORD/PLAY BACK
MAIN
APSS
DUBBING SPEED SELECTOR
SW503 MECHANISM MODE CONT PLAY — 2 — 1 — DUBBING
SW504 STOP
[CD//LINE IN/ON — RADIO/ON — TAPE/OFF
ee 7 ee
