AR-D34/AR-D35 5 - 1
[5] AR-D34/AR-D35

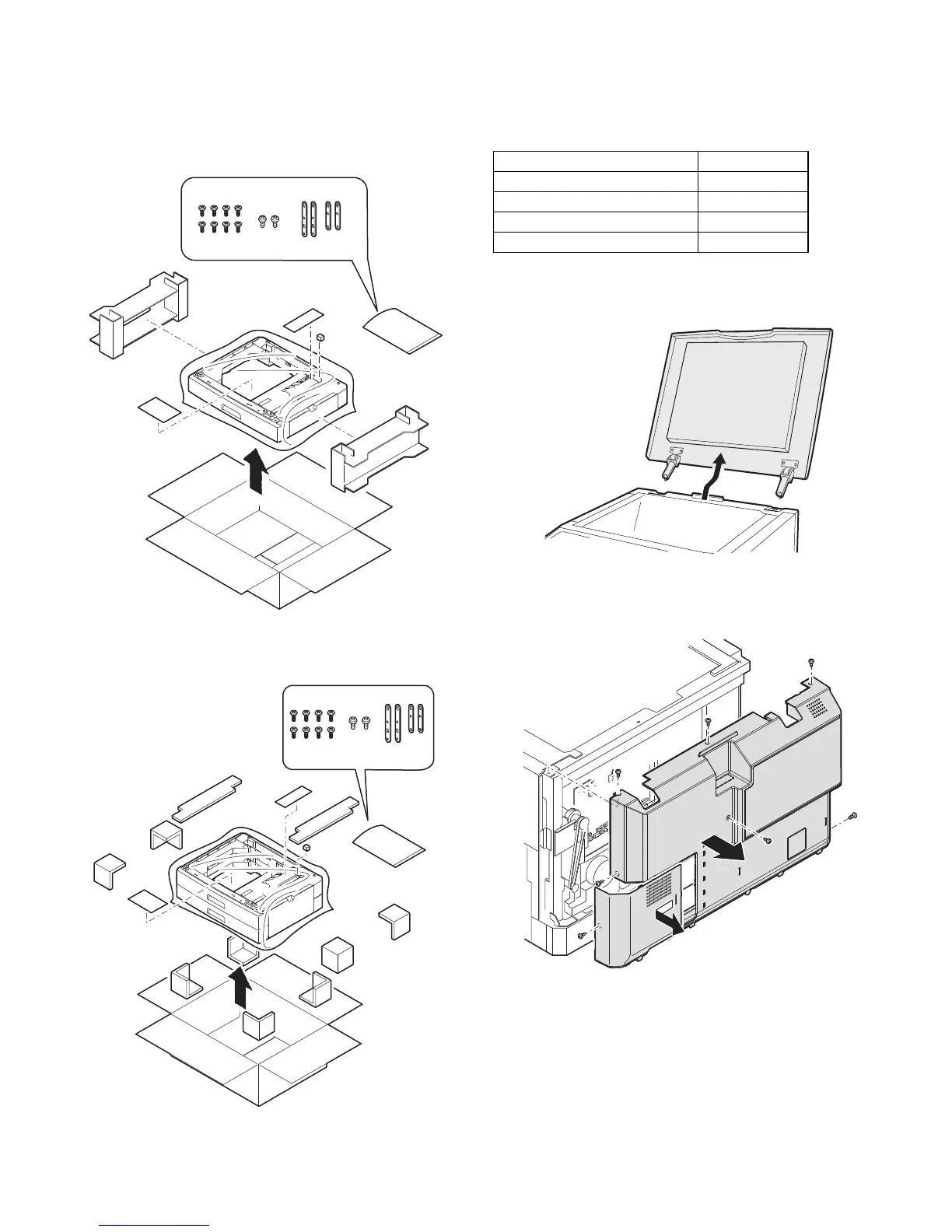

1. Unpacking
(AR-D34)
(AR-D35)
2. Installation
Included parts
1) Remove the document cover.
Lift the document cover from the copier and tilt it to the rear side to
remove it.
2) Remove the rear cabinet.
Remove the screw and remove the cover. Then, remove the five screws
and remove the rear cabinet.
Part name Quantity
Screw M4 x 12 (Fixing plate) 8
Screw M4 x 10 2
Fixing plate 4
Paper size label 1
