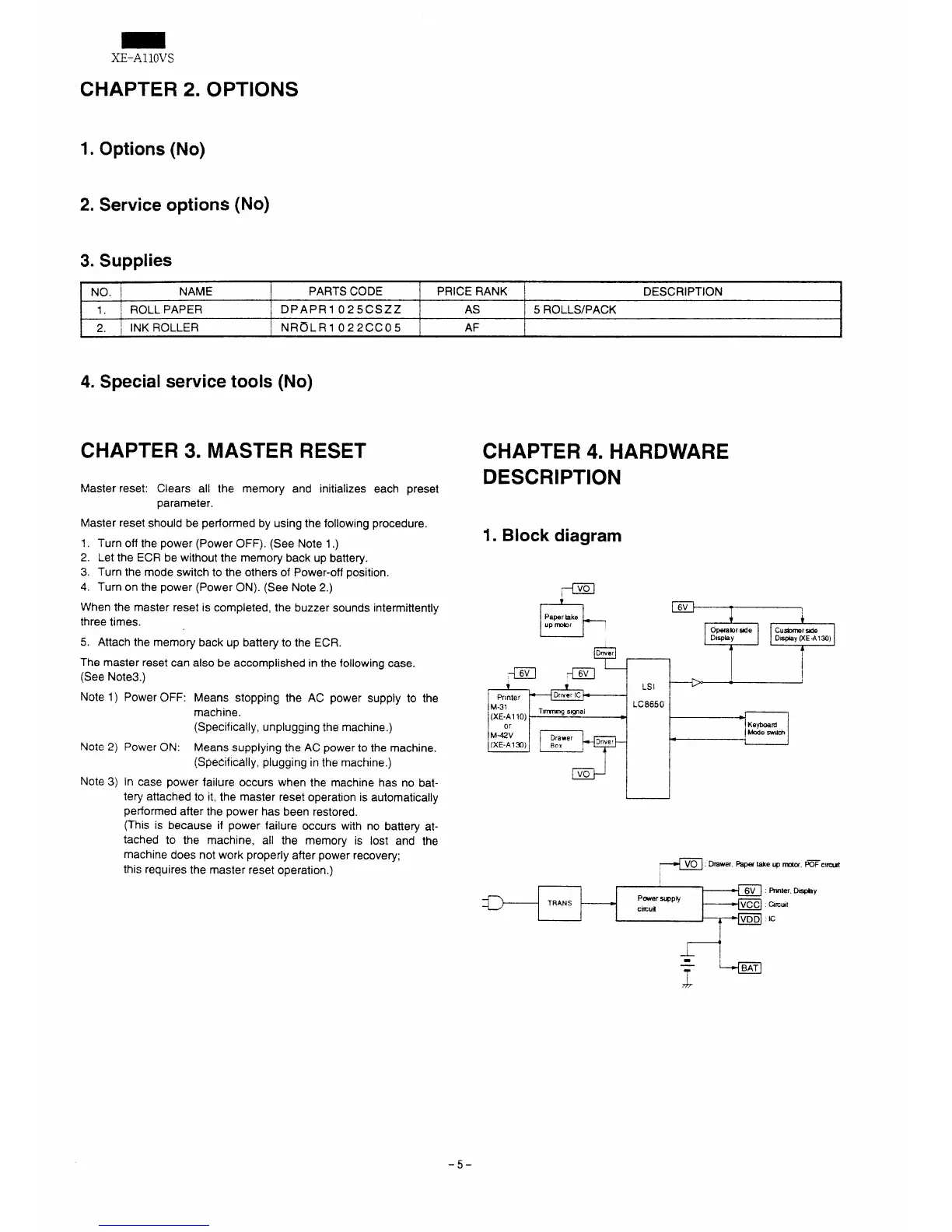

XE-A11OVS
CHAPTER 2. OPTIONS
1. Options (No)
2. Service options (No)
3. Supplies
NO.
NAME
PARTS CODE
PRICE RANK DESCRIPTION
1.
ROLL PAPER
DPAPR 10 25CSZZ
AS 5 ROLLS/PACK
2. , INK ROLLER
NR~LR 10 22CC05
AF
4. Special service tools (No)
CHAPTER 3. MASTER RESET
Master reset: Clears all the memory and initializes each preset
parameter.
Master reset should be performed by using the following procedure.
1. Turn off the power (Power OFF). (See Note 1,)
2. Let the ECR be without the memory backup battery.
3, Turn the mode switch to the others of Power-off position.
4. Turn on the power (Power ON). (See Note 2.)
When the master reset is completed, the buzzer sounds intermittently
three times.
5. Attach the memory backup battery to the ECR.
The master reset can also be accomplished in the following case.
(See Note3.)
Note 1) Power OFF: Means stopping the AC power supply to the
machine.
(Specifically, unplugging the machine.)
Note 2) Power ON: Means supplying the AC power to the machine.
(Specifically, plugging in the machine.)
Note 3) In case power failure occurs when the machine has no bat-
tery attached to it, the master reset operation is automatically
performed after the power has been restored.
This is because if power failure occurs with no battery at-
tached to the machine, all the memory is lost and the
machine does not work properly after power recovery;
this requires the master reset operation.)
CHAPTER 4. HARDWARE
DESCRIPTION
1. Block diagram
m -y
E
‘ Printer
DrwerIC
M-31
(XE-A1 10)
Tumungsignal
or
M*V
Drawer
[XE-Al~)
~ Eox ,
Driver
L
LSI
.Ci3650
d
Vo’
-5-
