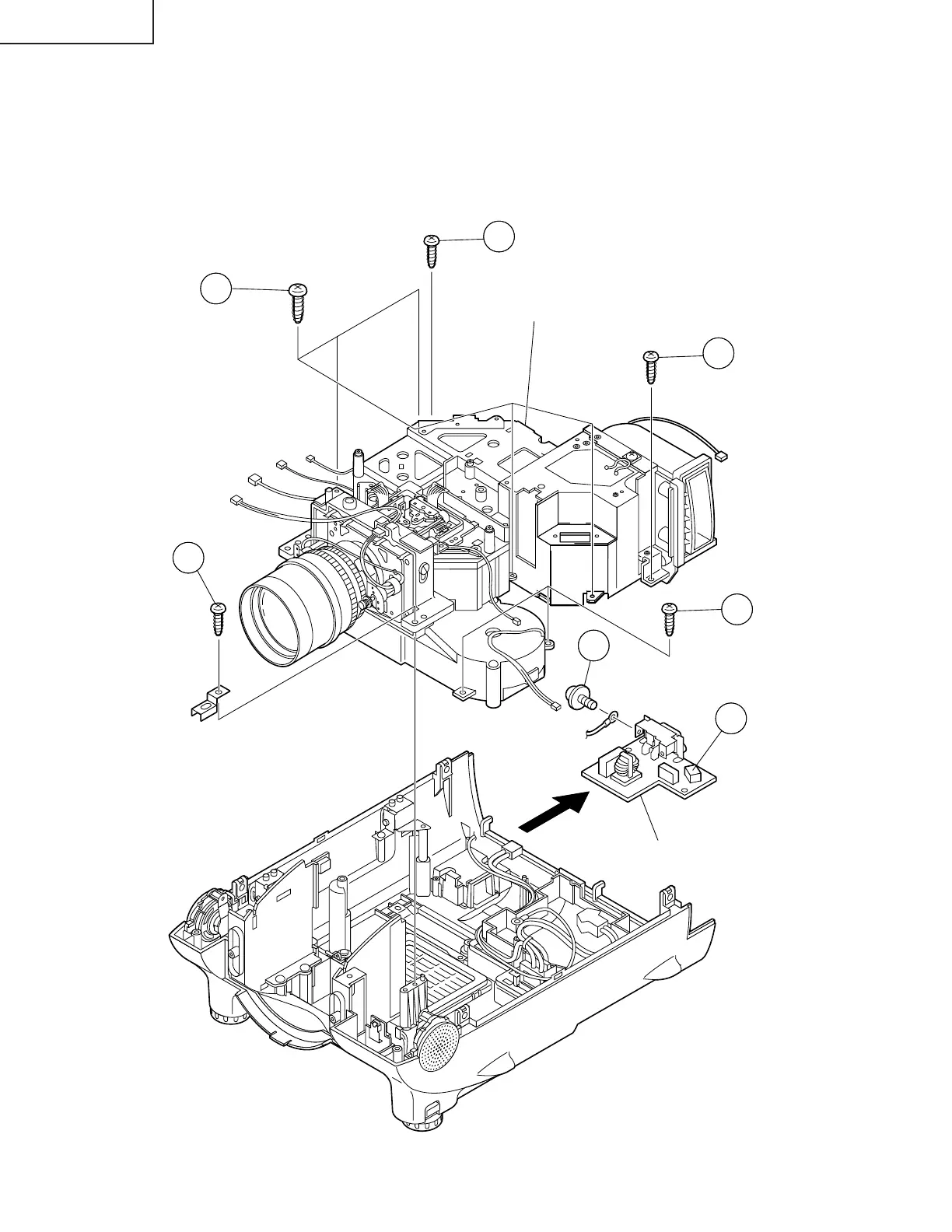

7. Removing the optical mechanism unit
7-1. Remove the two screws off the optical mechanism intake fan.
7-2. Remove the eight screws and take out the optical mechanism unit.
7-3. Remove the screw and disconnect the grounding wire.
7-4. Disconnect the connector and detach the AC inlet unit.
7-2
7-2
7-1
7-3
7-4
7-2
7-2
Optical Mechanism Unit
AC Inlet Unit
