Sharp XL-505 User Manual

– 7 –
XL-505/505C,CP-505B
1 Top Cabinet/ 1. Screw...................(A1) x4 7-1
Switch PWB 2. Socket.................. (A2) x3
3. Screw...................(A3) x1
2 Side Panel 1. Screw................... (B1) x7 7-1
(Left/Right)
3 Back Board 1. Screw...................(C1) x2 7-1
4 Main PWB/ 1. Screw...................(D1) x3 7-2
Headphones PWB 2. Socket.................. (D2) x4
5 Front Panel 1. Screw................... (E1) x2 7-2
6 Display PWB 1. Screw...................(F1) x6 7-2
2. Socket.................. (F2) x1
7 Power Supply PWB 1. Screw...................(G1) x4 7-2
8 Tape Mechanism 1. Screw...................(H1) x4 7-3
9 CD Mechanism 1. Screw...................(J1) x3 7-4

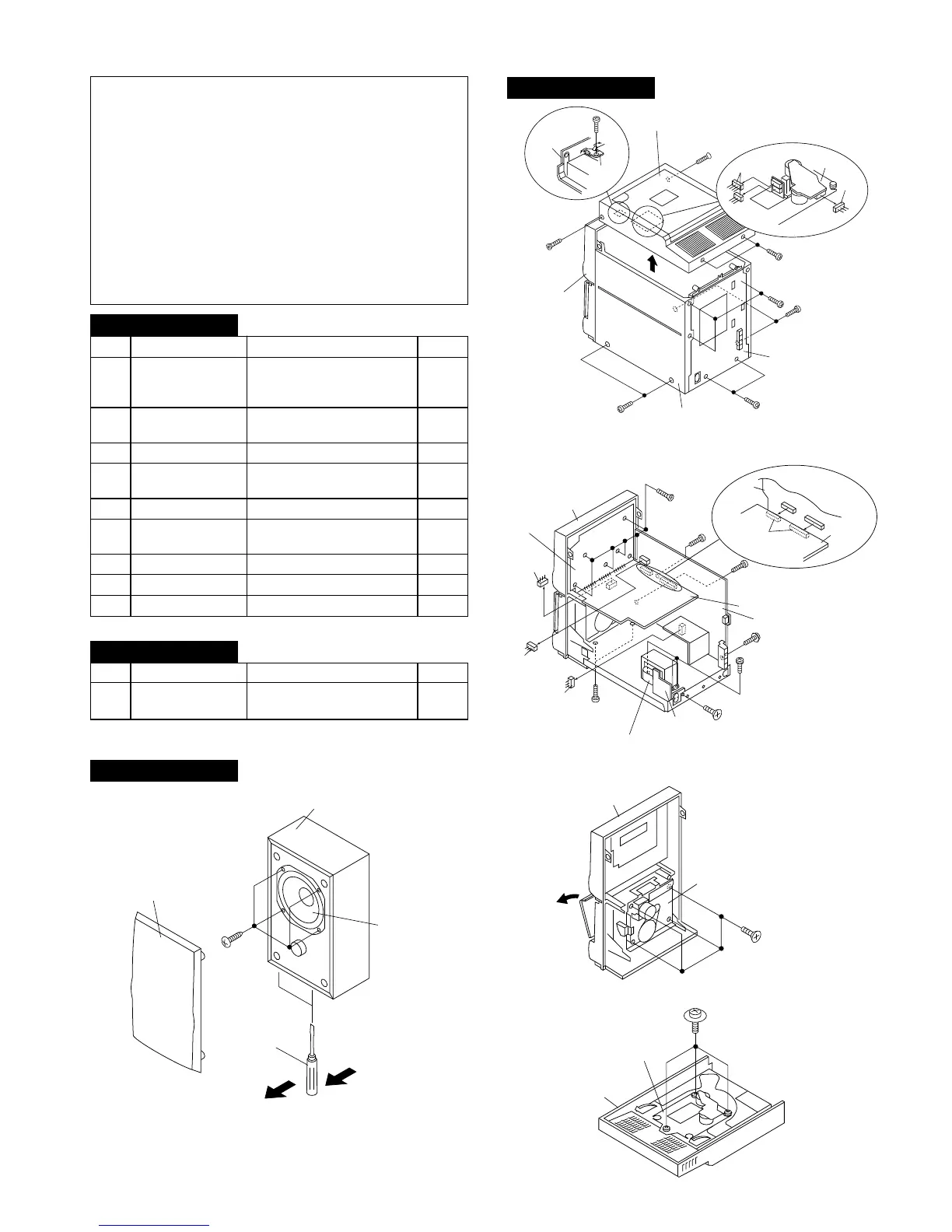

DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
STEP REMOVAL
PROCEDURE
FIGURE
Figure 7-1
XL-505/505C
STEP REMOVAL
PROCEDURE
FIGURE
1 Speaker 1. Net ....................... (A1) x1 7-5
2. Screw .................. (A2) x4
CP-505B
(A2)x4
ø4x12mm
Net
(A1x1)
Speaker
Speaker Box
Screw
driver
Direction of handle
XL-505/505C
Figure 7-4
CP-505B
Figure 7-5
(A1)x1
ø3x12mm
(A1)x1
ø3x12mm
(B1)x2
ø3x10mm
(C1)x2
ø3x10mm
(B1)x2
ø3x10mm
(B1)x3
ø3x10mm
(A1)x2
ø3x10mm
(A2)x2
(A2)x1
CD 
Mechanism
(A3)x1
ø3x10mm
Swicth 
PWB
Top Cabinet
Top 
Cabinet
Side Panel
Front 
Panel
Rear Panel
(F1)x6
ø3x10mm
(D1)x1
ø3x10mm
(D1)x1
ø3x10mm
CD Servo PWB
Main PWB
Power Supply
PWB
Power 
Transformer
Front Panel
Display PWB
(G1)x3
ø4x6mm
(D1)x1
ø3x10mm
(G1)x1
ø3x10mm
(E1)x2
ø3x10mm
(D2)x1
(D2)x1
(F2)x1
(D2)x2
CD Servo
PWB
Main 
PWB
Tape MechanismOpen
(H1)x4
ø3x10mm
Front Panel
CD Mechanism
(J1)x3
ø2.6x10mm
Top Cabinet
