Sharp XL-505 - REMOVING AND REINSTALLING THE MAIN PARTS; CD MECHANISM SECTION; How to remove the pickup

XL-505/505C,CP-505B
– 8 –

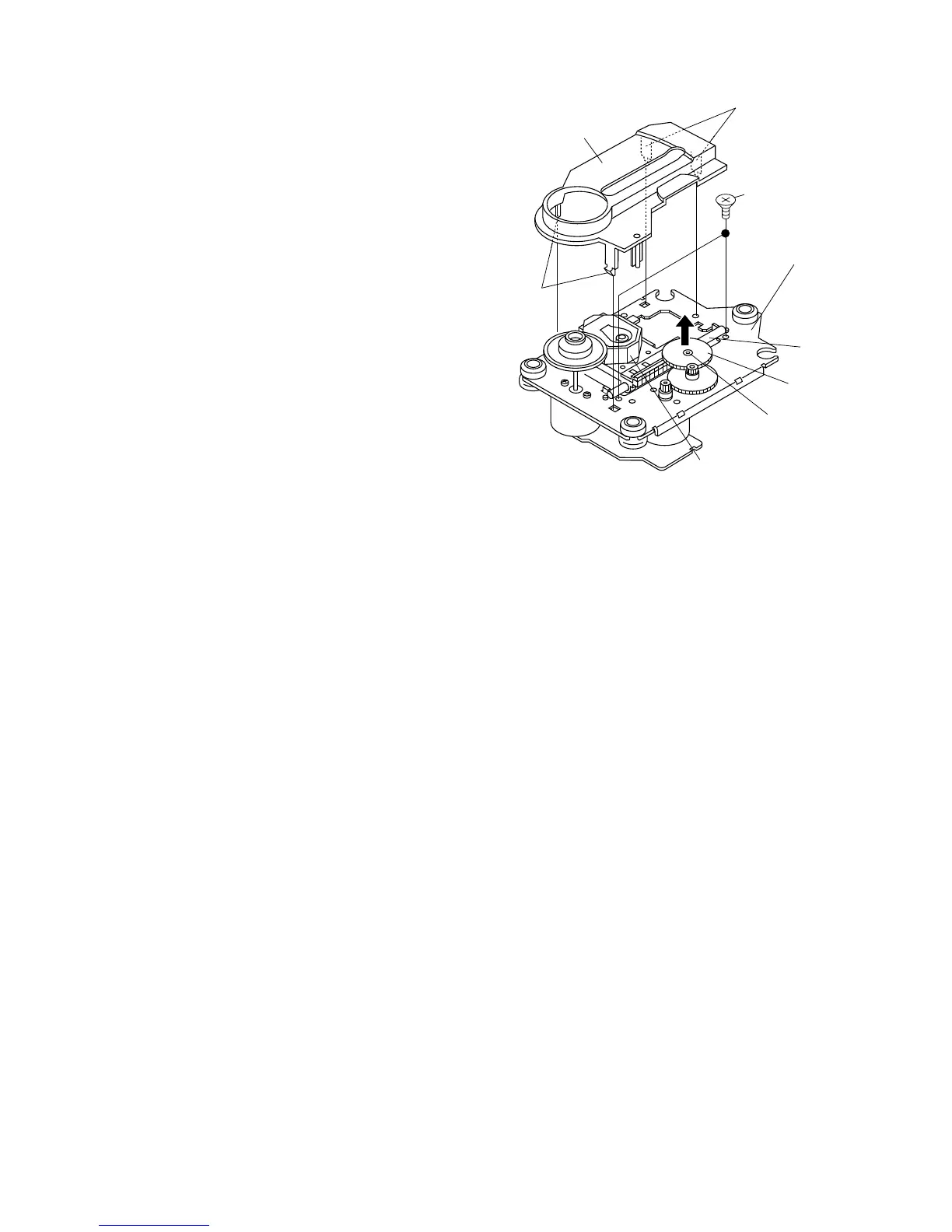

Figure 8
How to remove the pickup (See Fig. 8)
1. Remove the mechanism cover, paying attention to the
pawls (A1) x 4 pcs.
2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3)
x 1 pc.
3. Remove the stop washer (A4) x 1 pc., to remove the gear
(A5) x 1 pc.
4. Remove the pickup.
Note:
After removing the optical pickup connector wrap the front
end of connector in conductive aluminium foil so as to
prevent damage of optical pickup by static electricity.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1 and 9 of the disassembly method to remove
the CD mechanism.
Pickup Unit
( A2 ) x2
ø2.6 x6mm
( A1 ) x2
CD Mechanism
Shaft
( A3 ) x1
Gear
( A5 ) x1
StopWasher
( A4 ) x1
Mechanism Cover
( A1 ) x2
