XL-MP110H/MP110E
1 – 4

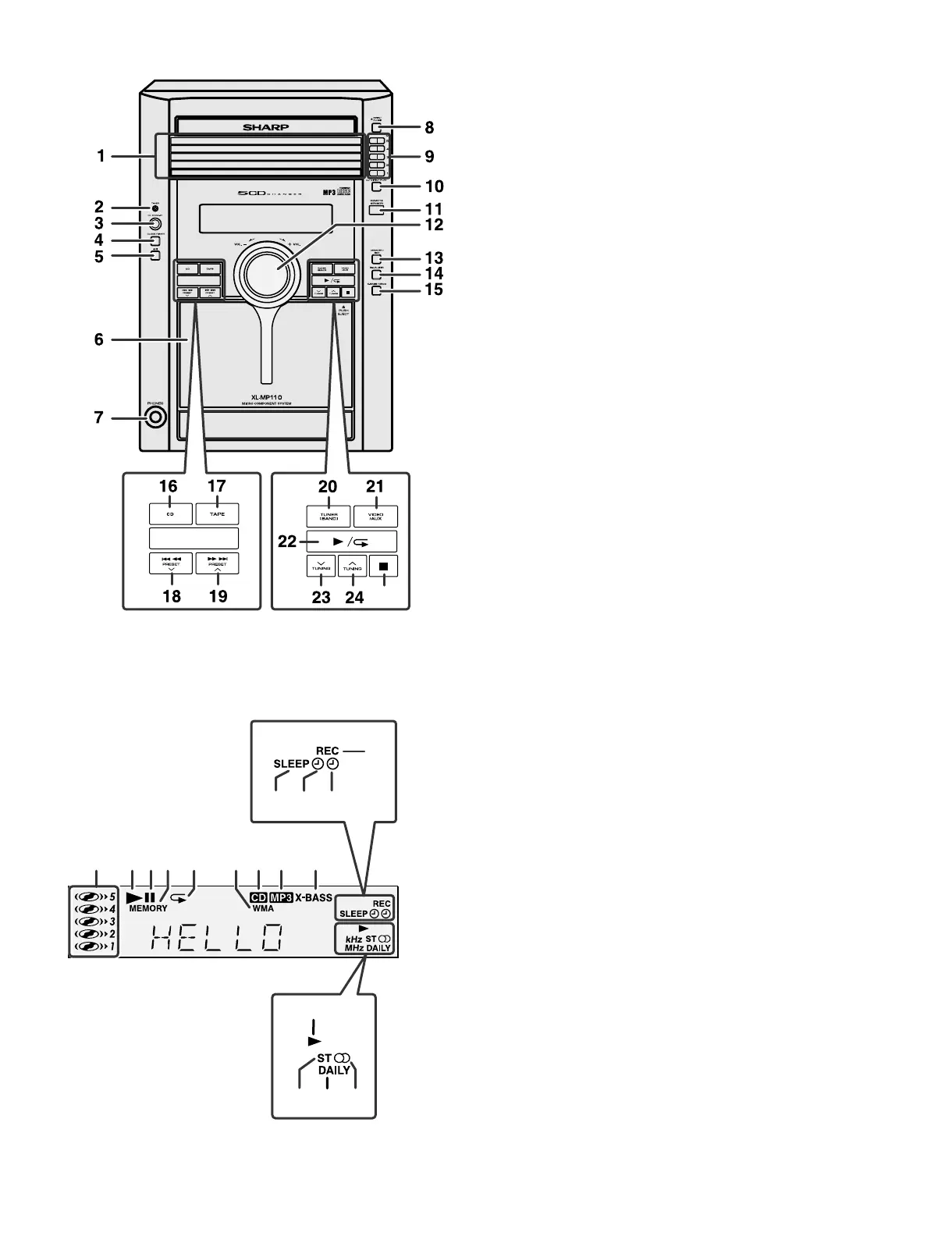

Illustration XL-MP110E
Front panel
1. Disc Trays
2. Timer Indicator
3. On/Stand-by Button
4. Clock/Timer Button
5. Tape Record Pause Button
6. Cassette Compartment
7. Headphone Socket
8. Disc Tray Open/Close Button
9. Disc Number Select Buttons
10. CD Direct Play Button
11. Remote Sensor
12. Volume Control
13. Memory/Set Button
14. Equalizer Mode Select Button
15. Extra Bass/Demo Mode Button
16. CD Button
17. Tape Button
18. Disc Track Down or Fast Reverse, Tape Rewind,
Tuner Preset Down, Time Down Button
19. Disc Track Up or Fast Forward, Tape Fast Forward,
Tuner Preset Up, Time Up Button
20. Tuner (Band) Button
21. Video/Auxiliary Button
22. Disc Play or Repeat, Tape Play Button
23. Tuning Down Button
24. Tuning Up Button
25. Disc or Tape Stop Button
/
25
■
■
Illustration XL-MP110E
Display
1. Disc Number Indicators
2. Disc Play Indicator
3. Disc Pause Indicator
4. Memory Indicator
5. Disc Repeat Play Indicator
6. WMA Indicator
7. CD Indicator
8. MP3 Indicator
9. Extra Bass Indicator
10. Tape Record Indicator
11. Sleep Indicator
12. Timer Play Indicator
13. Timer Recording Indicator
14. Tape Play Indicator
15. FM Stereo Mode Indicator
16. Daily Timer Indicator
17. FM Stereo Receiving Indicator
976 8321 4 5
1615 17
14
1211
10
13
