Preparation for Use

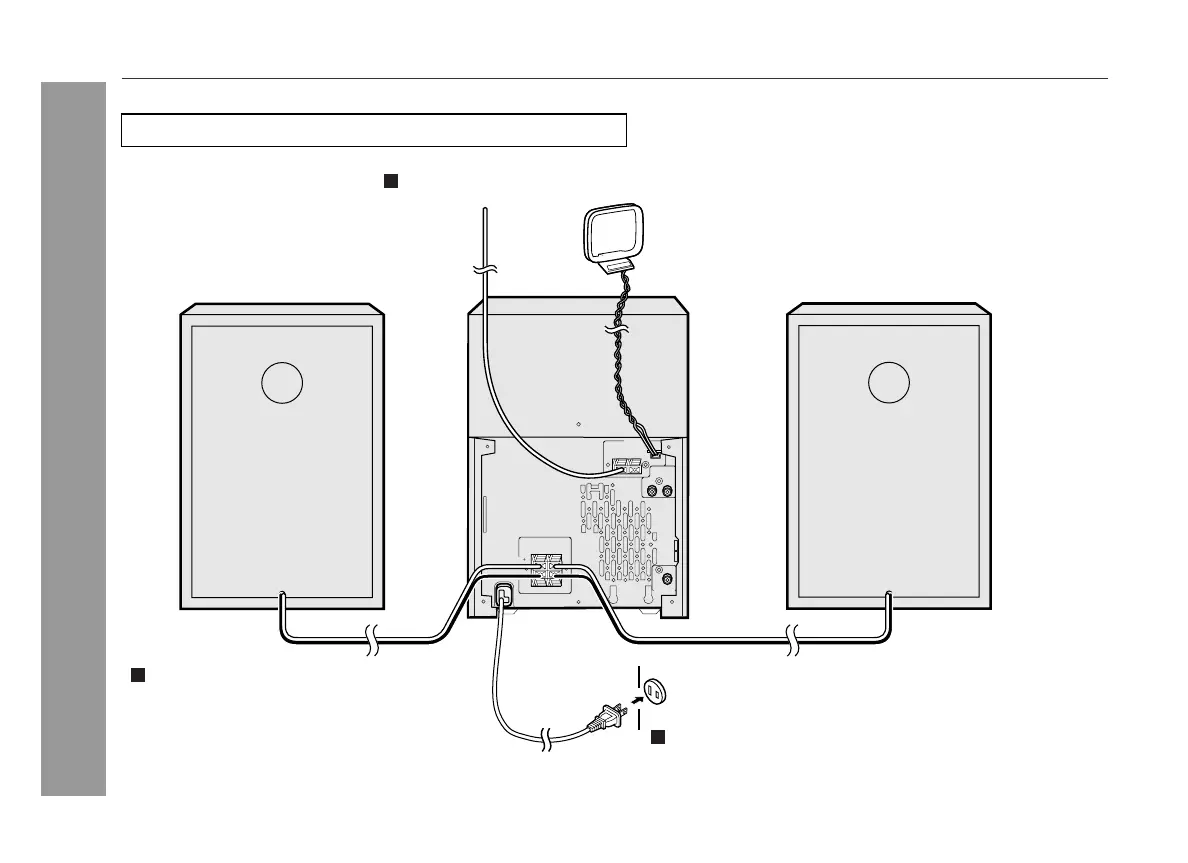

System connections
RATED SPEAKER IMPEDANCE:
6 OHMS MIN.
AC INPUT
ANTENNA
RIGHT
RIGHT LEFT
GND
FM
75 OHMS
AM
LOOP
VIDEO/AUX
IN
SUBWOOFER
PRE-OUT
SPEAKERS
LEFT
Left speaker
Right speaker
AC outlet
(AC 120 V, 60 Hz)
Speaker connection (see page 11)
AM loop antenna
FM antenna
Make sure to unplug the AC power cord before any connections.
Antenna connection (see page 11)
AC power connection (see page 12)
