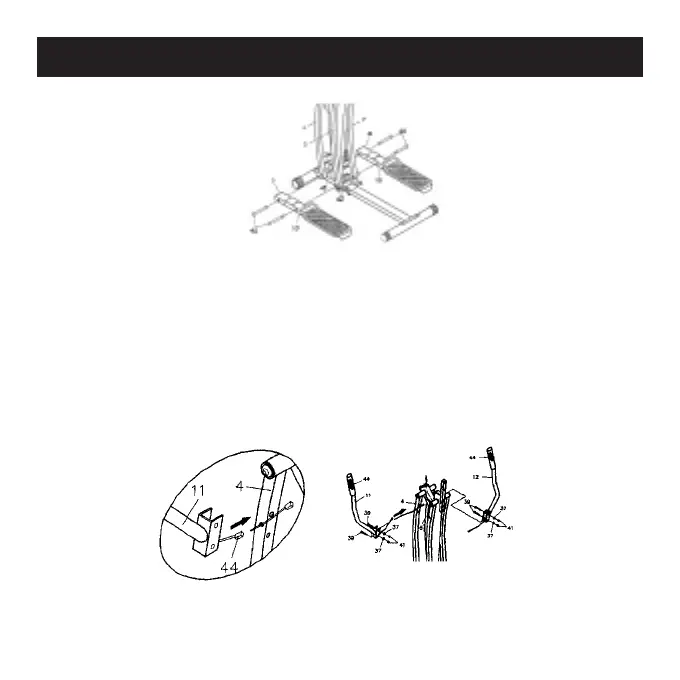

Step 4
Attach the Front Pedal Arm (9) onto the Left Front Leg (4) with
Bolt (12.7 x 143 mm, 9.5 mm threaded) (40) and Nylock Nut
(9.5 mm) (34). Insert the Pedal Arm (10) into the Front Pedal
Arm (9) and bolt them onto the Left Rear Leg (5) with Bolt (12.7
x 143 mm, 9.5 mm threaded) (40) and Nylock Nut (9.5 mm)
(34). Follow the same instructions to attach the Front Pedal Arm
(9) and Pedal Arm (10) to the Legs (6 and 7).
Step 5
Feed the Hand Pulse Wire (44) on the Left Handlebar (11)
through the hole on the Left Front Leg (4). Attach the Left
Assembly Guide
