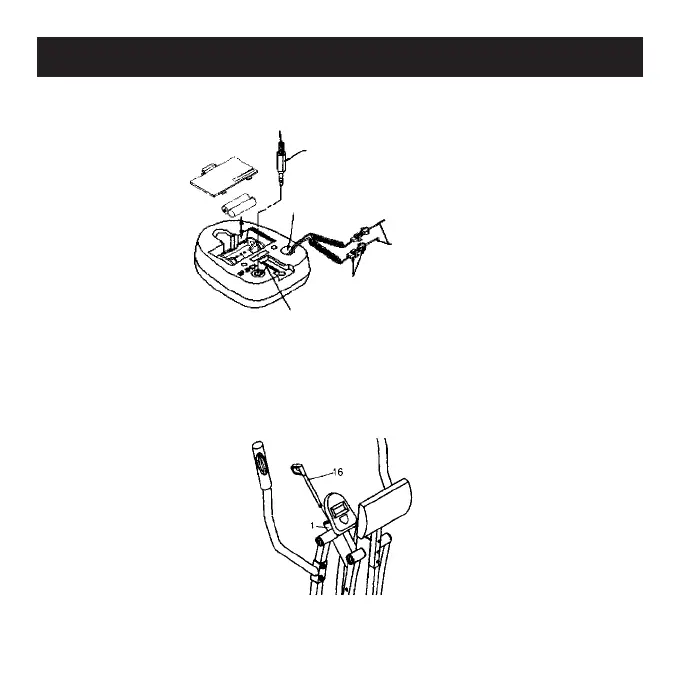

Connect the two Hand Pulse Wires (44) so you can measure yur
heart rate.
NOTE: Be careful not to damage the Sensor Wire (19) and Hand
Pulse Wires (44) when sliding it into the Electronic Meter (15)
Ensure the two Hand Pulse Wires (44) are properly connected
and tightened.
Step 8
To store the Safety Pin (16), insert it into Oval Plug with Hole
(30 x 70 mm) (18) on the top of the Main Frame (1).
Assembly Guide
Put the speed sensor
into the left socket
For hand pulse sensor
For speed sensor
Cables from
strider
Connect hand pulse wires
To Next Page
