Sharper Image SR410 - Assembly Step 2: Poster and Console Attachment

Step 2

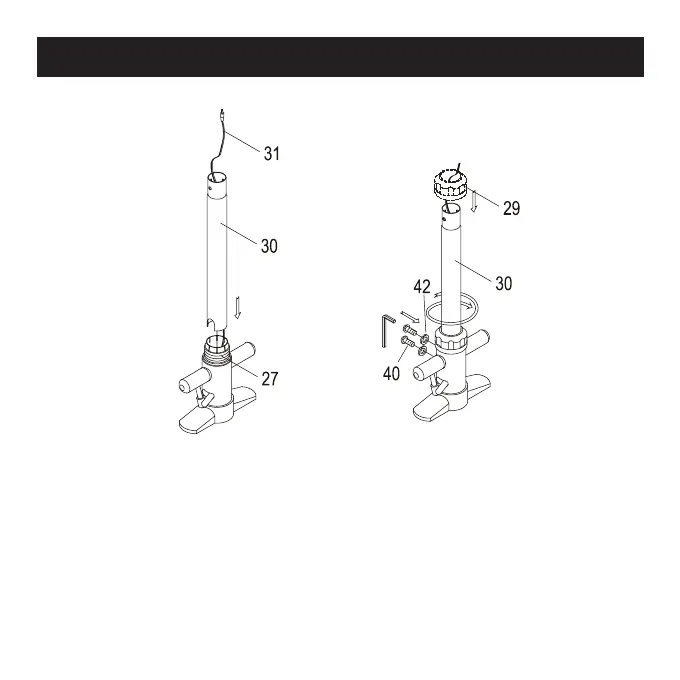

•Slide the Sensor Wire (31) through the Poster (30). (See Figure D.)
•Attach the Poster (30) into the Base Console (27) with Bolt (40)
and Spring Washer (42).
•Tighten Sleeve Cover (29) onto the Base Console (29).
(See Figure E.)
Figure D. Figure E.
Assembly Guide
