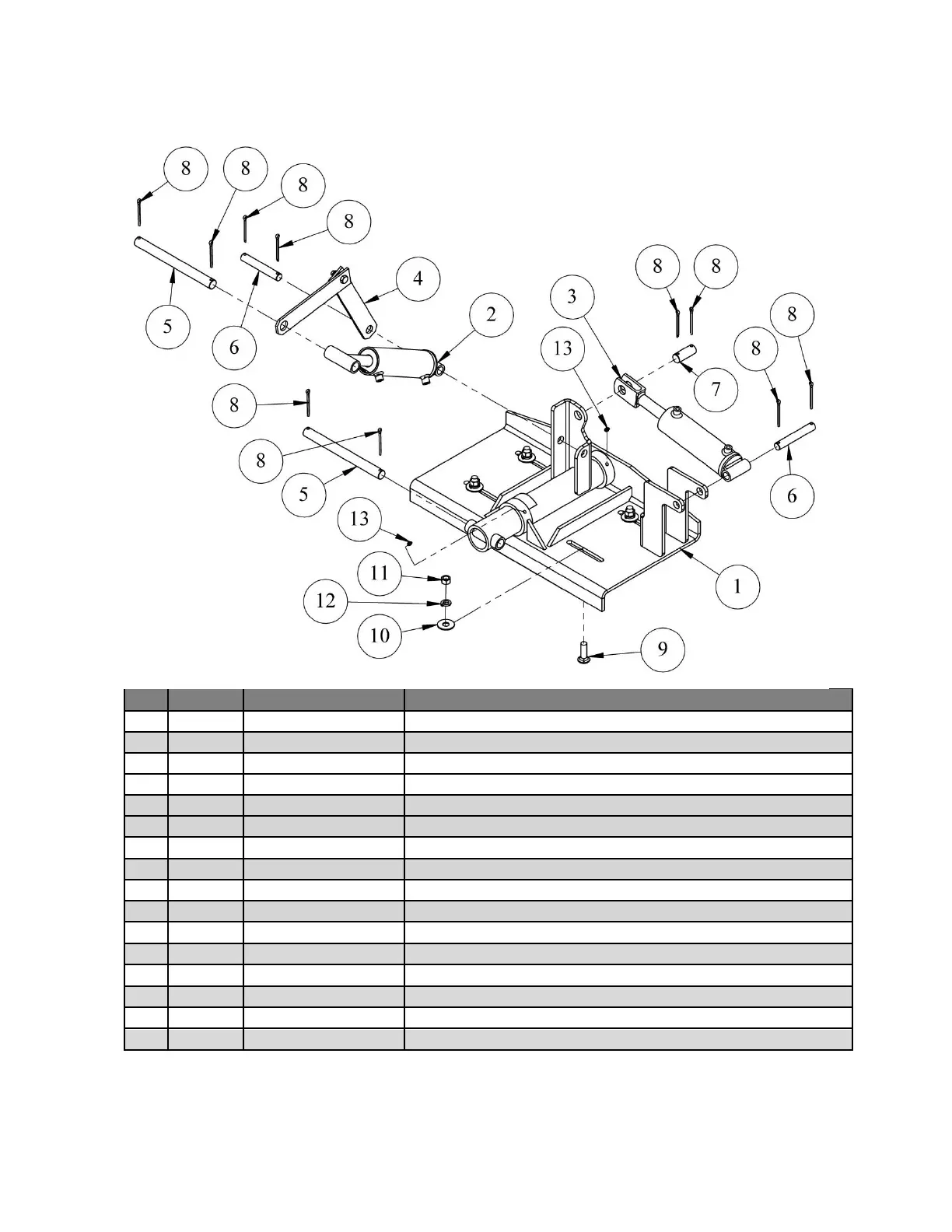

Hydraulic Base Plate Assembly
HD-12 & SHD-10 Hydraulic Base Plate
Item
Qty.
Part No.
Description
-
-
HBP-912111
HD-12 Hydraulic Base Plate Assembly (Includes mounting hardware)
1
1
HBP-912115
Plate Weldment, Base, Hyd. HD-10
2
1
HBP-91217
Cylinder, Hyd. Forward Tilt
-
-
HBP-912177
Seal Kit, 2-1/2” Tilt Cylinder (Not Shown)
3
1
HBP-91218
Cylinder, Hyd. Side Tilt
-
-
HBP-912177
Seal Kit, 2-1/2” Tilt Cylinder (Not Shown)
4
1
HBP-9012-6
Stop Assembly, Scissor
5
2
SM-1207
Pin, Stabilizer Base Plate HD-12
6
2
HBP-908133
Pin, Cylinder, 13/16” Dia. x 5-1/4”
7
1
HBP-908134
Pin, Cylinder, 1” Dia. x 2-1/2”
8
10
300106
Pin, Cotter 3/16 x 2-1/2 Zn
9
4
300221
Bolt, Carriage 5/8-11 x 2 Gr5 Zn
10
4
300213
Washer, Flat 5/8 Zn
11
4
300107
Nut, Hex 5/8-11 Zn
12
4
300216
Washer, Lock 5/8" Zn
13
2
300346
Fitting, Grease Straight 5/16 Drive
