Shaver HD-8-S - Driver Cylinder Assembly

65

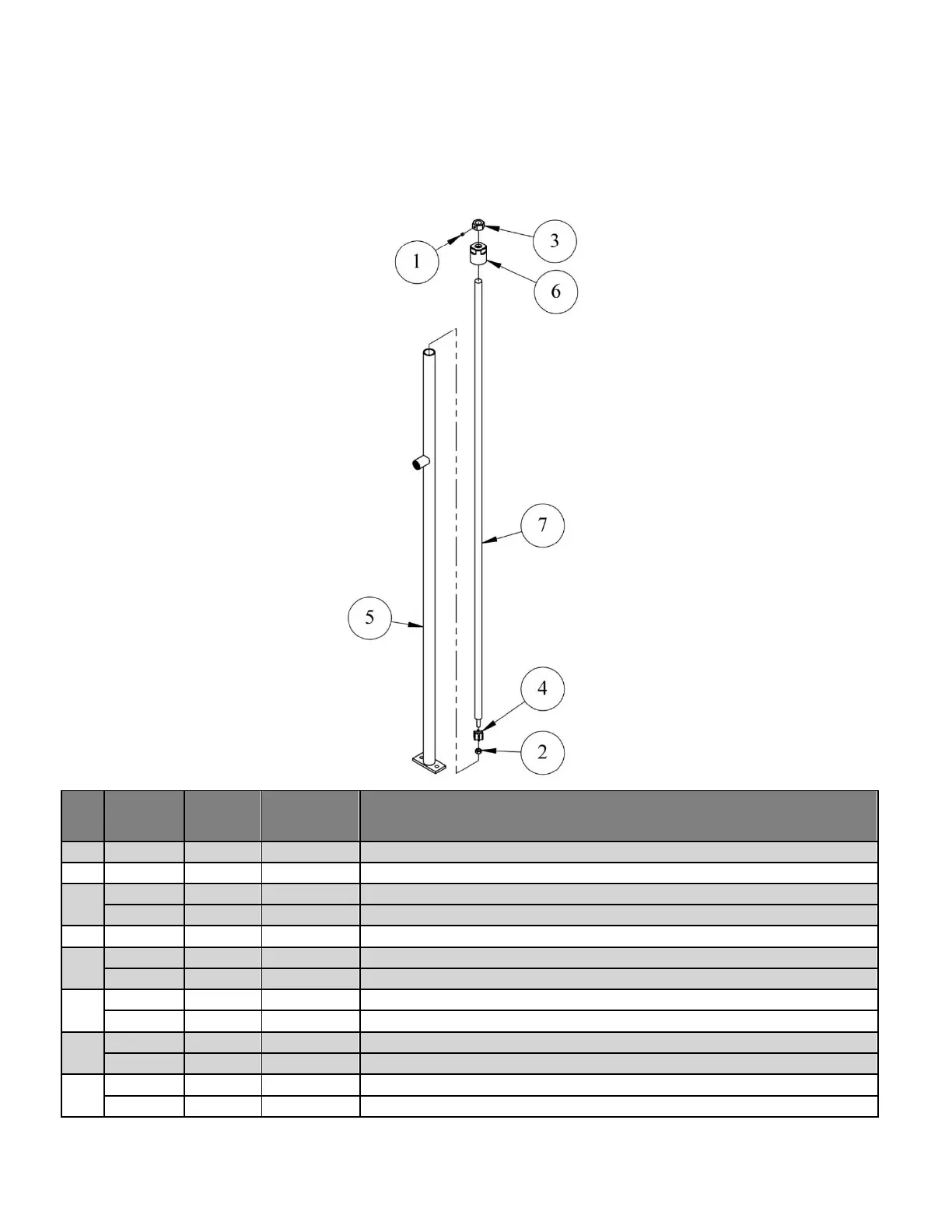

Driver Cylinder Assembly
SM-0263-S - Cylinder Assembly, Complete HD-8
SM-1026-S - Cylinder Assembly, Complete HD-10/12 (Shown) & SHD-10
Item
Qty.
SM-0263-S
HD-8
Qty.
SM-1026-S
HD-10/12
Part No.
Description
1
1
1
300111
Screw, HSSS 5/16-18 x 5/16
2
1
1
S-0269
Nut, 1/2 F. Piston Guide, HD-8/10
3
-
1
SM-0936C
Nut, Cylinder Coarse Machine
1
-
SM-018
Nut, 3/4-10 Side Tilt Crank
4
1
1
SM-02610
Guide, Piston, HD-8/10
5
-
1
SM-10261-S
Tube Weldment., Cylinder. HD-10/12
1
-
SM-0264-S
Tube Weldment., Cylinder. HD-8
6
-
1
SM-10262
Cap & Seal Assy, HD-10/12
1
-
SM-0262-D
Cap & Seal Assy, HD-8
-
-
1
SM-10265-D
Seal, Cup, HD-10/12 (included in SM-10262)
1
-
SM-0265-D
Seal, Cup, HD-8 (included in SM-0262-D)
7
-
1
SM-10266
Rod, Piston, HD-10/12
1
-
SM-0266
Rod, Piston, HD-8
