ShelterLogic 62693 User Manual

05_62693_62696_0FPage 6
10115
10110
10112
802842
01010
10115
10110
10110
10111
802843
01010

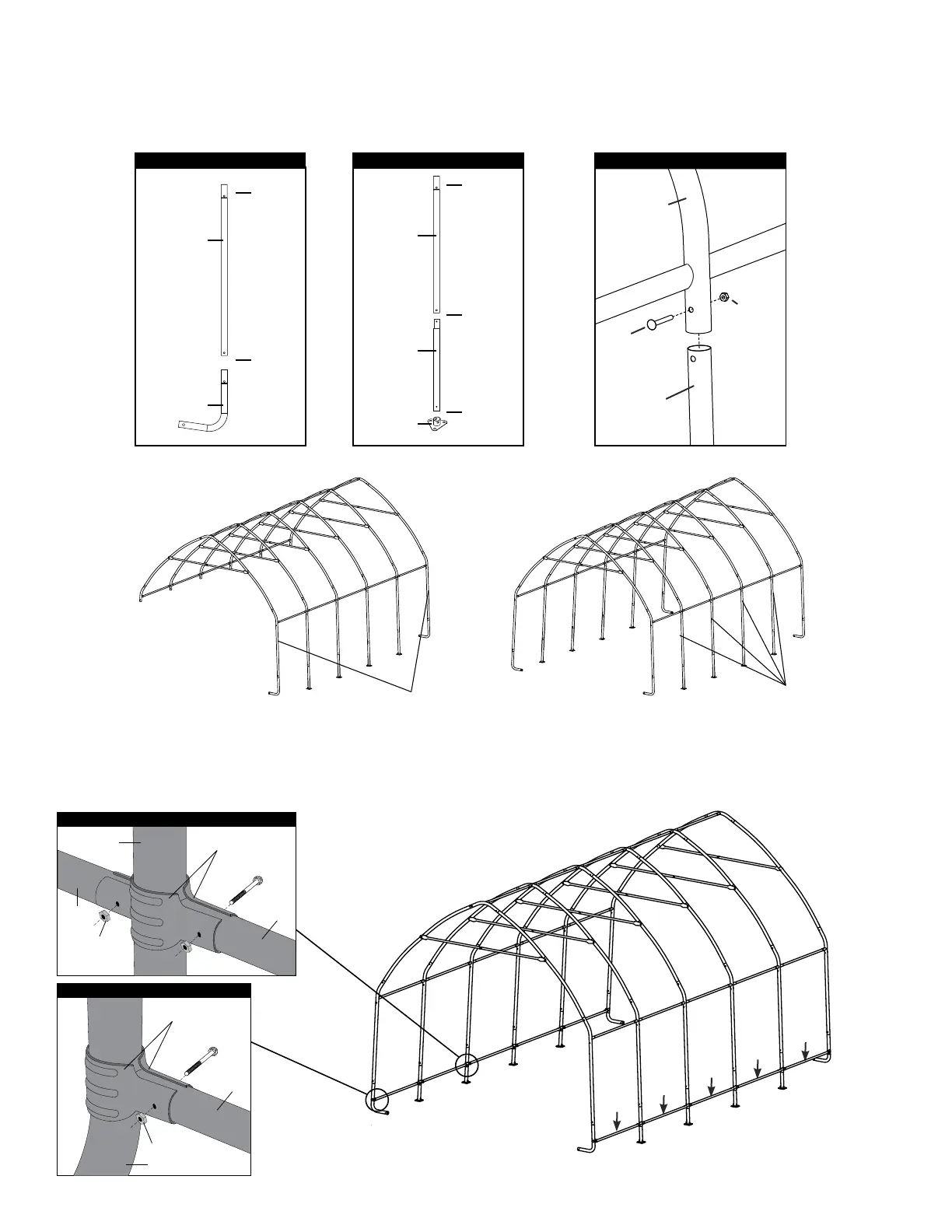

3. ASSEMBLE LEGS & ATTACH TO ROOF FRAME Use bolts as shown in illustrations.
4. ASSEMBLE COVER RAILS
A. Assemble Corner and Middle legs.
B. Attach legs with bolts on one side of roof frame, let the other side of roof frame rest on the ground.
C. Attach remaining legs with bolts to opposite side of roof frame.
802844
Use Bolt
10114
Use Bolt
10114
802842
Corner Legs
Use Bolt
10114
Use Bolt
10114
Use Bolt
10114
802845
802844
802843
Middle Legs
10110
Corner Legs
Middle Legs
FRONT
REAR
Middle Rib Cross Rail Clamps
End Rib Cross Rail Clamps
A. Place the cover rail (10110) at each leg and secure it at each leg with a cover clamp as shown below.
B. Slide the cover rails so they are 8 inches up from the ground and hand tighten bolts on clamps.
10110
10110
10110
10110
802797
802844
(Assembled Leg)
01010
10114
Attach Legs to Roof Frame

ShelterLogic 62693 Specifications

General

Brand	ShelterLogic
Model	62693
Category	Tent
Language	English
