Extension
Panel
12082
Interior View Extension Panel Setup

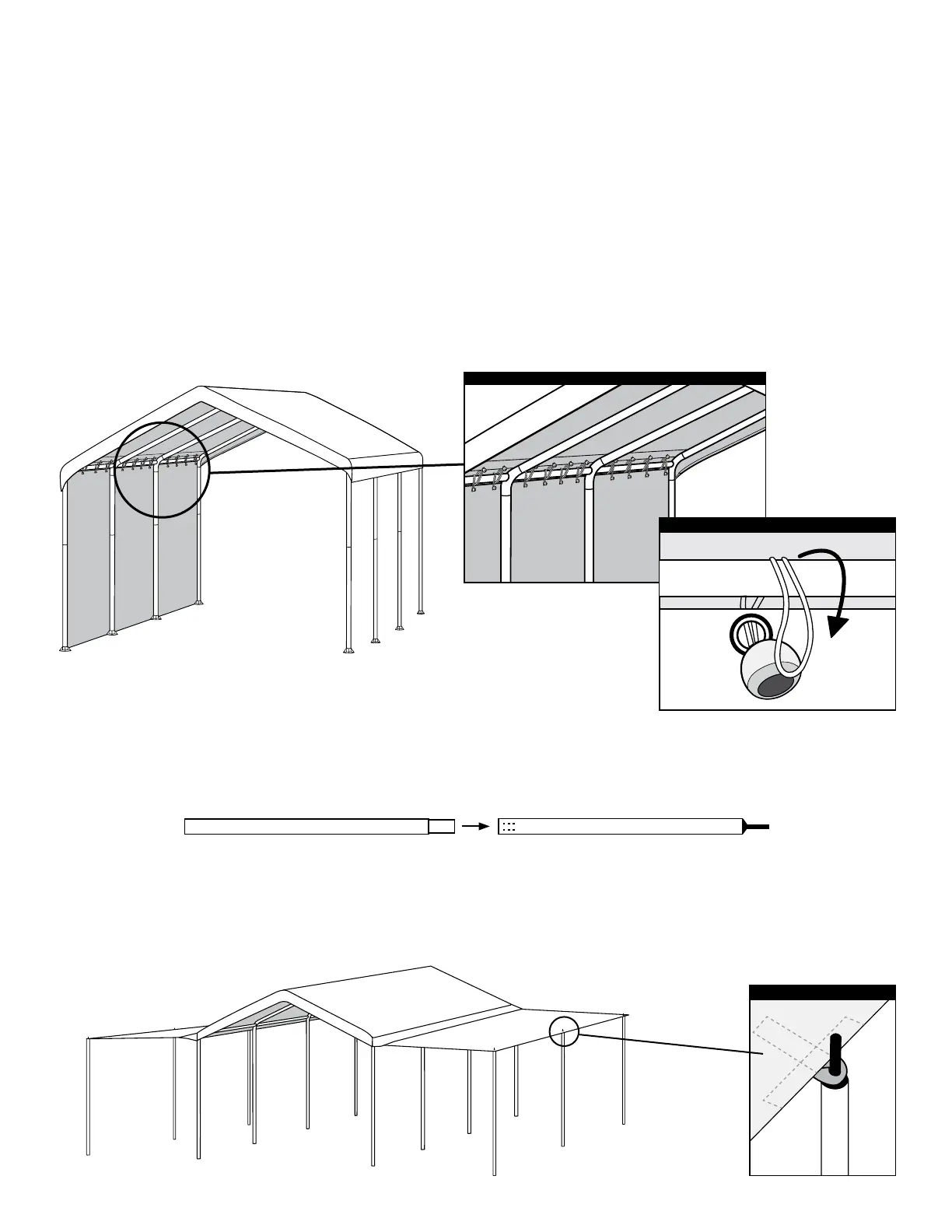

1. ATTACH SIDE WALLS TO FRAME
NOTES:
A. If tightened at corner leg poles, disengage the TwistTite
™
cord and “S” hook from canopy cover and corner
legs. Wrap up TwistTite
™
cord and secure inside the shelter with one of the cover panel bungee cords.
B. Attach the extension panels with bungees to the cross rails at the top rst. Adjust the panels as needed to
ensure a tight and even t before extending panel and securing to the tent poles.
CAUTION:
recommended to prevent injury.
2. ASSEMBLE EXTENSION PANEL TENT POLES
3. RAISE EXTENSION PANELS AND ATTACH TENT POLES
1045810459
Insert Bungee Cord Through Grommet
Top of Extension Pole
To Next Page
