05-70401-70402-70405-0HPage 7
WRAP END PANEL EDGES TO INSIDE OF FRAME

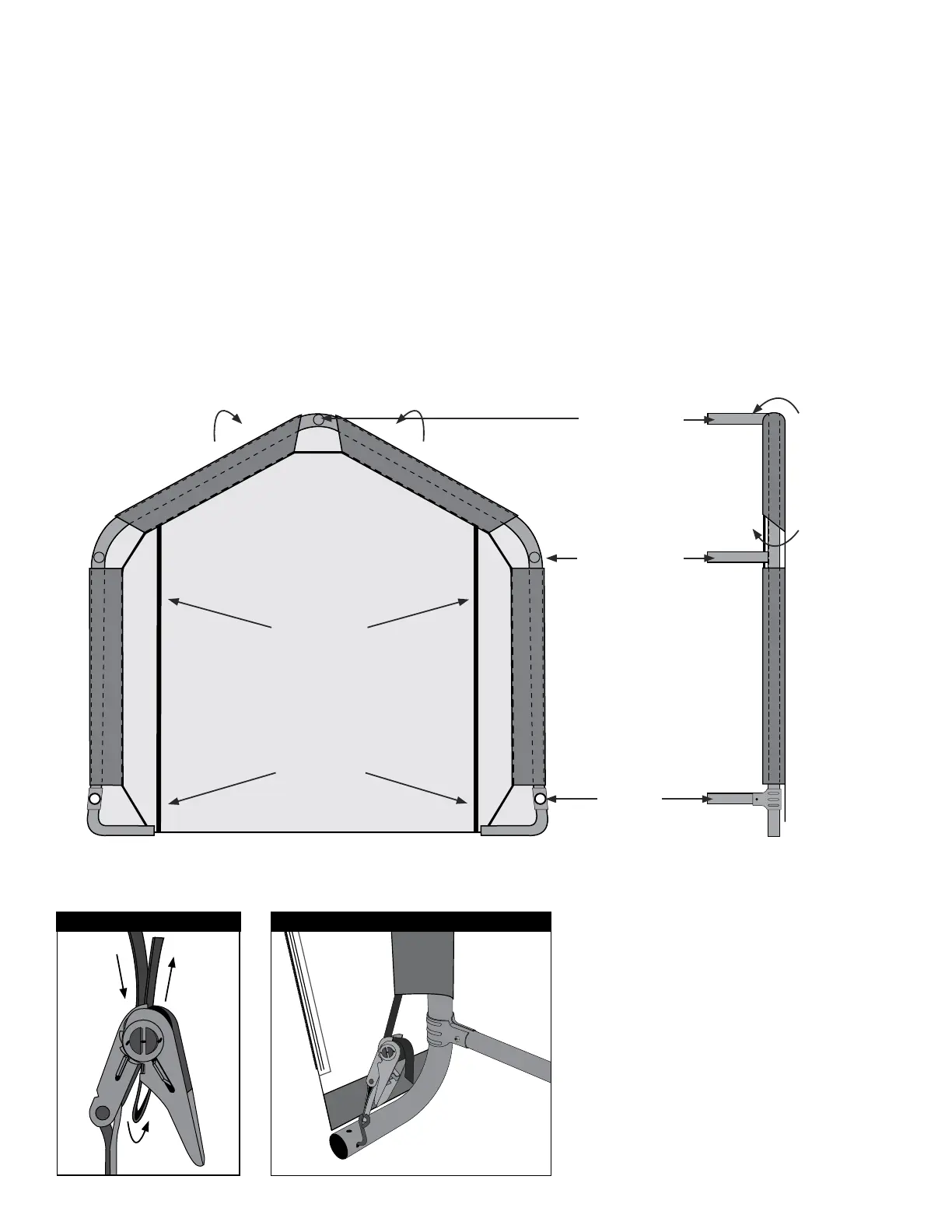

7. DOOR AND SOLID END PANEL INSTALLATION
A. Hold end panel at the top center with white inner surface facing inside of the shelter. Wrap the edges of the
fabric panel around the end rib.
B. Disconnect top rail from the end rib. Pass the top cross rail through the gap in the fabric, in between the
webbing and rib frame. Re-attach top cross rail to end rib. Repeat Step B for side cross rails.
C. At the bottom, where the webbing exits the pocket on each side of end panel, pull webbing to remove the
slack. Be careful not to pull the webbing through the other side of the webbing pocket.
D. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself.
Position the end panel so that it is centered on the building before fully tightening the end panel.
E. Tighten ratchets, alternating from one side to the other, until the end panel is centered and tight.
Zipper Door Panels: Zippers must be closed when tightening end panel.
Thread Webbing Into Ratchet
SIDE CROSS
RAILS
WEBBING
ZIPPERS
TOP CROSS
RAIL
WRAP END
PANEL EDGES
TO INSIDE OF
FRAME
INSIDE VIEW OF END RIB SIDE VIEW OF END RIB
COVER
RAIL
Webbing and Ratchets Securing End Panel
To Next Page
