Shibaura SG280E - Engine Control and Meter Functions

18
1818
18
②
②②

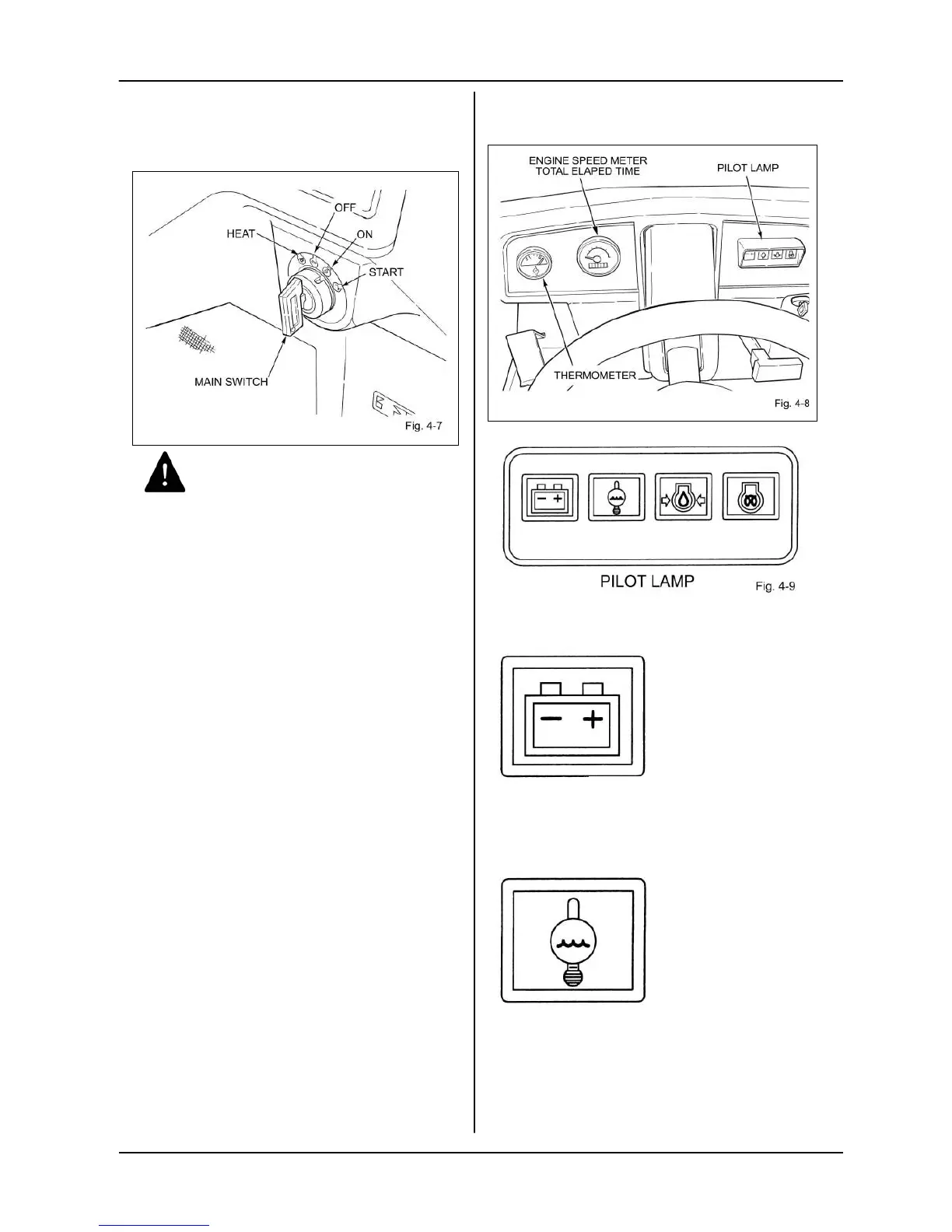

② Meters and Pilot Lamp
• Charge lamp
• Engine water temperature warning lamp
FUNCTION OF EACH PART
2. Engine Control System
①
①①
① Main switch
●
While the machine is not in service, be sure
to pull ou
t the key and store it in a safe
storage place.
If not, some accident may be caused.
The key is used to start the engine.
[HEAT]
If you release your hand from the
key at the position to preheat the combustion
chamber, the key will automatically return to
the “OFF” position.
[OFF]
Engine stops at this position and
the key may be inserted or removed.
[ON]
Key stays at this position while the
engine is running.
[START]
Position to start the engine.
When you release your hand from the key, it
automatically returns to the “ON” position.
The vehicle is equipped with 4 safety switches
to start the engine safely.
The safety switch functions to start the engine
only when the following 4 conditions are met:。
1. Operator takes is seated.
2. He presses the brake pedal.
3. He turns OFF the PTO clutch.
4.
He releases his foot from the running
pedal.
Caution
When the main switch
is turned to the “ON”
position, the lamp
lights up. After
the
engine starts, number
of engine revolutions
increases. When
charging is started, the
lamp goes out.
Even though the main
switch is turned to
the
“ON”
position, the
lamp does not light up.
The lamp lights up if
the engine is
overheated during
operation. In such a
case, stop the
operation and check
the cause.
Fig. 4-10
Fig. 4-11
