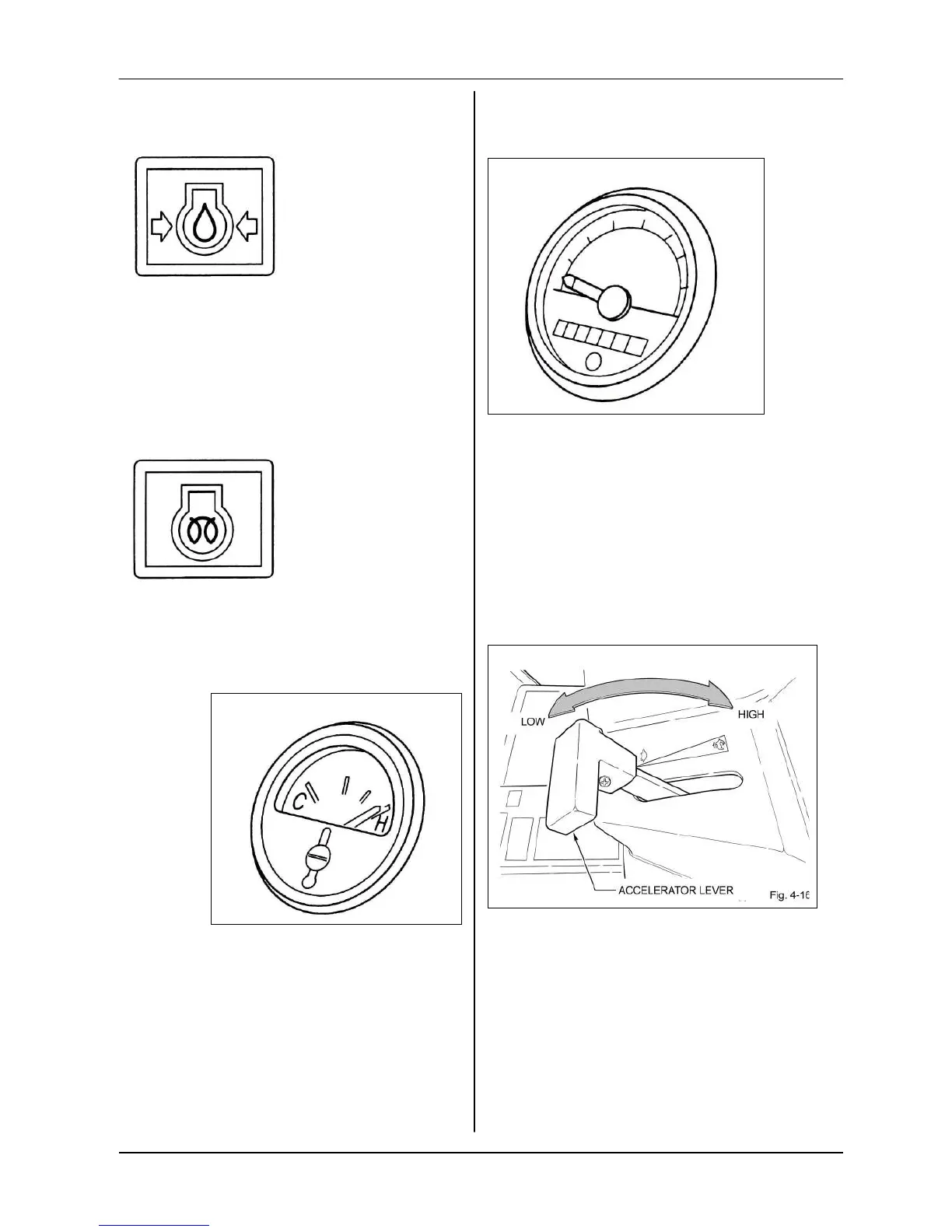

FUNCTION OF EACH PART
• Engine rev. counter / elapsed time integrator
While the engine is running, its number of
revolutions is indicated by the pointer. The
elapsed time integrator indicates the time by a
number for which the machine was operated.
By multiplying the white number on the right
by 6, time in the minute unit is obtained.
③
③③
③ Accelerator lever
The accelerator lever is used to increase or
decrease the engine revolutions.
By pulling the lever toward the operator, the
engine revolutions decrease and by pushing it
forward, the engine revolutions increase.
• Engine oil pressure pilot lamp
• Glow lamp
• Water temperature meter
Temperature of cooling water is indicated by a
pointer during operation.
When the pointer points to
the “H” position,
engine may be overheated. Stop operation
even when the engine water temperature
meter lamp does not light up and check for
the
cause.
When the main switch
is turned to the “ON”
position, the lamp
lights up.
When the engine
starts operation, the
lamp goes out. If the
lamp lights up while
the engine is rotating,
there is a fault in the
lubrication pressure
circuit.
Stop the engine
immediately and check
for the trouble.
By setting the main
switch to the “Glow”
position, the lamp
lights up indicating that
the power is supplied
to the heater. Keep the
switch at the “Glow”
position for about 5
seconds and then turn
it to the “START”
position to start the
engine.
Fig. 4-12
Fig. 4-13
Fig. 4-14
Fig. 4-15
