2. RANGE SHIFT, PTO AND 4WD CHANGE LEVER
(Remove the covers referring to 1-5, Removal of outside.)
1) Disassembly and reassembly
(1) Range shift and PTO change lever
① Remove the split pins, 19, from each change lever, and separate the shift plates, 8, 9 and 11.
② Remove two bolts, 10, for the bracket.
③ Remove the change lever assembly as a set by turn the shaft, 1.
(2) 4WD change lever
① Remove the split pin, 19, and remove the 4WD change lever, 14, from the shift arm.
442Y

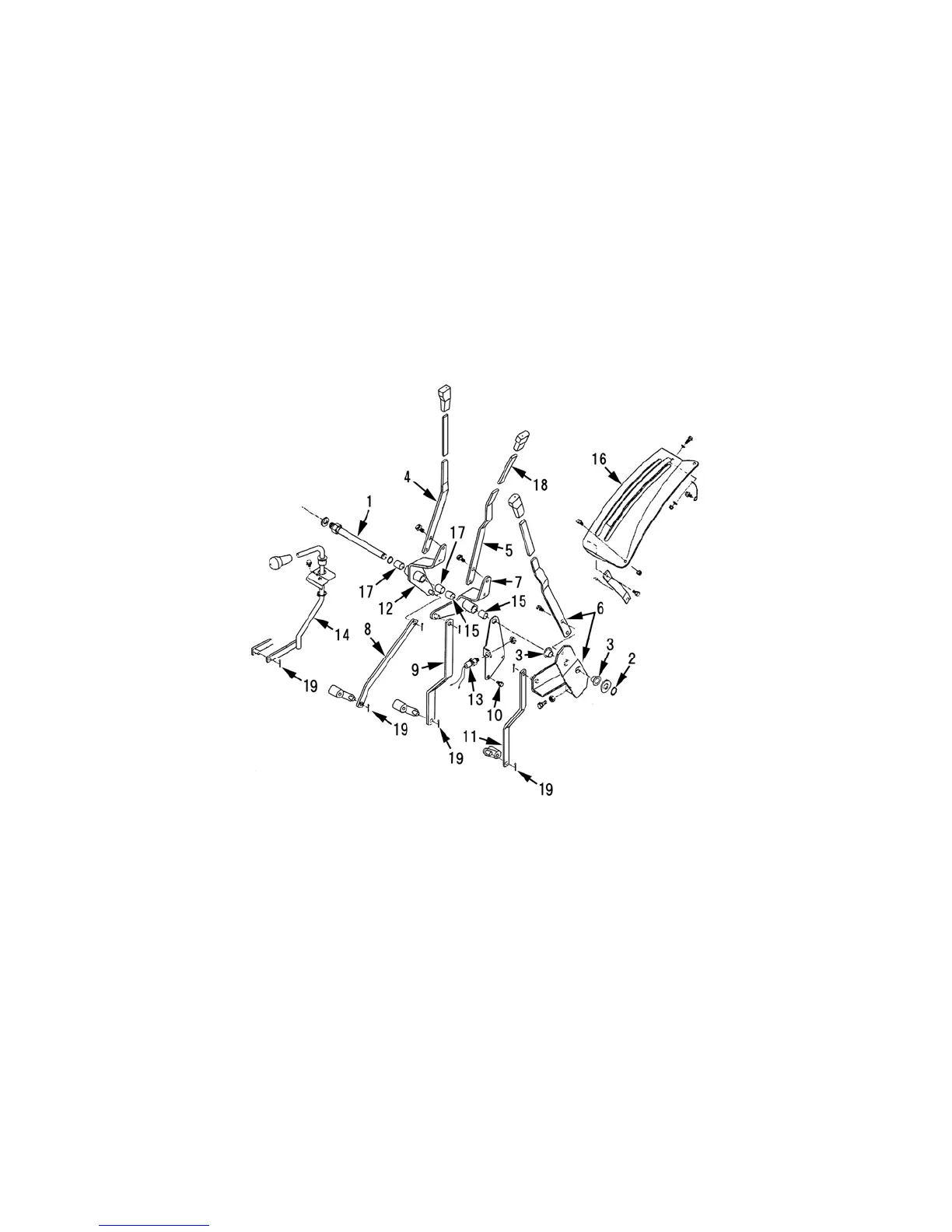

1. Shaft; shift guide
2. Snap ring
3. Bushing
4. Change lever；range shift
5. Change lever；PTO
6. Change lever；mid PTO
7. Change lever；rear PTO
8. Shift plate；range shift
9. Shift plate；PTO (one speed)
10. Bracket
11. Shift plate；mid PTO
12. Change lever：range
13. Safety switch (mid PTO ｰ only)
14. Change lever；4WD
15. Bush
16. Lever Guide
17. Bush
18. Change lever；PTO
19. Split pin
NOTE : Reassemble units in the reverse order to disassembly
