SECTION 4 – SXM54, SXM60 MOWER DECK
4-14

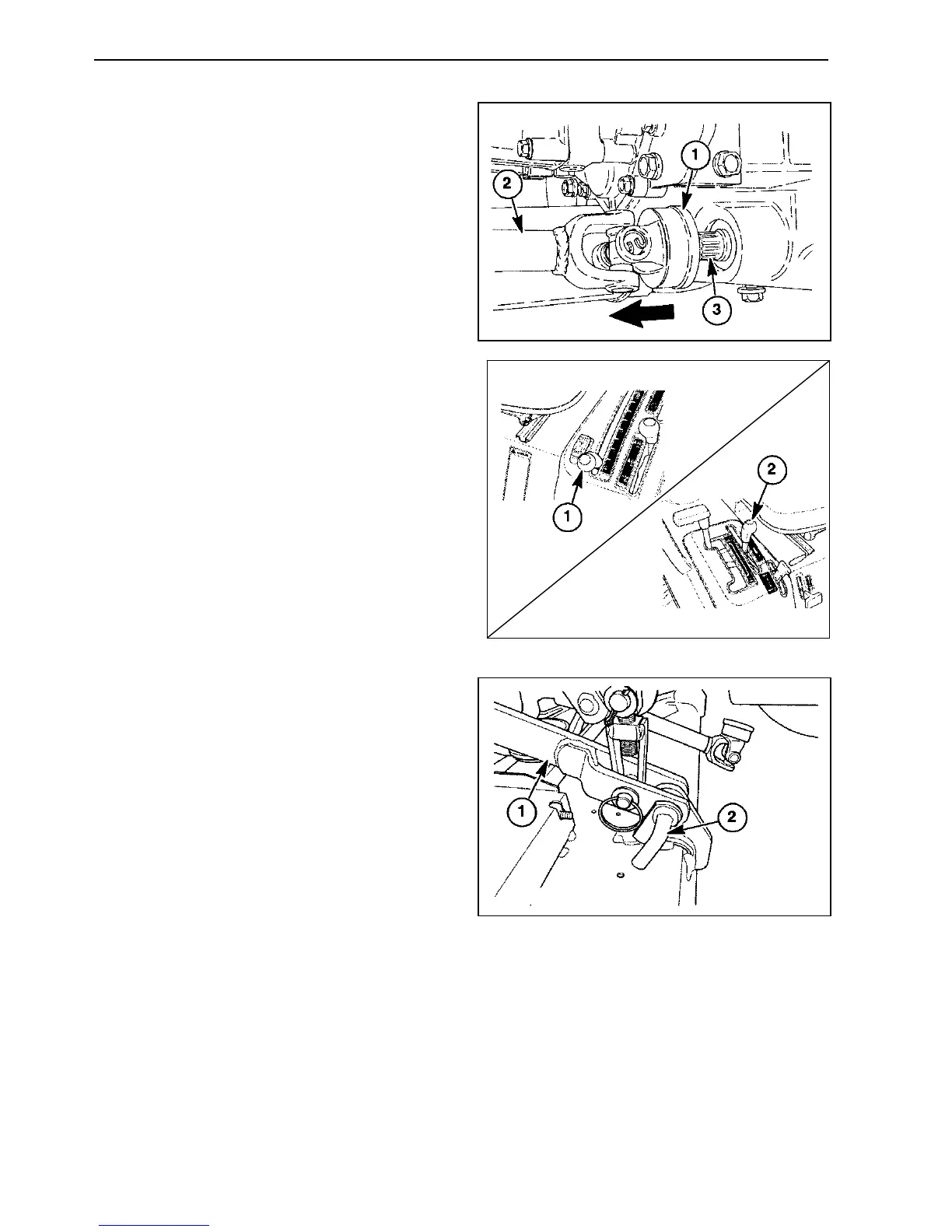

3. Pull the driveshaft locking collar ① towards
the front of the tractor and slide the
driveshaft ② off the PTO shaft ③.
4. Install the PTO cap on the PTO shaft.
5. Place the mower height adjustment lever ①
in the 1" cutting height position.
6. Start the engine on the tractor.
7. Shift the 3 PT lever ② to the "lower"
position.
8. Turn the engine off.
9. Disconnect the rear linkage ① from the
deck using the spring-loaded handle ②.
10. Repeat for the opposite side.
