37
Installation/removal
Wiring around the cockpit (bracket installation type cycle computer)

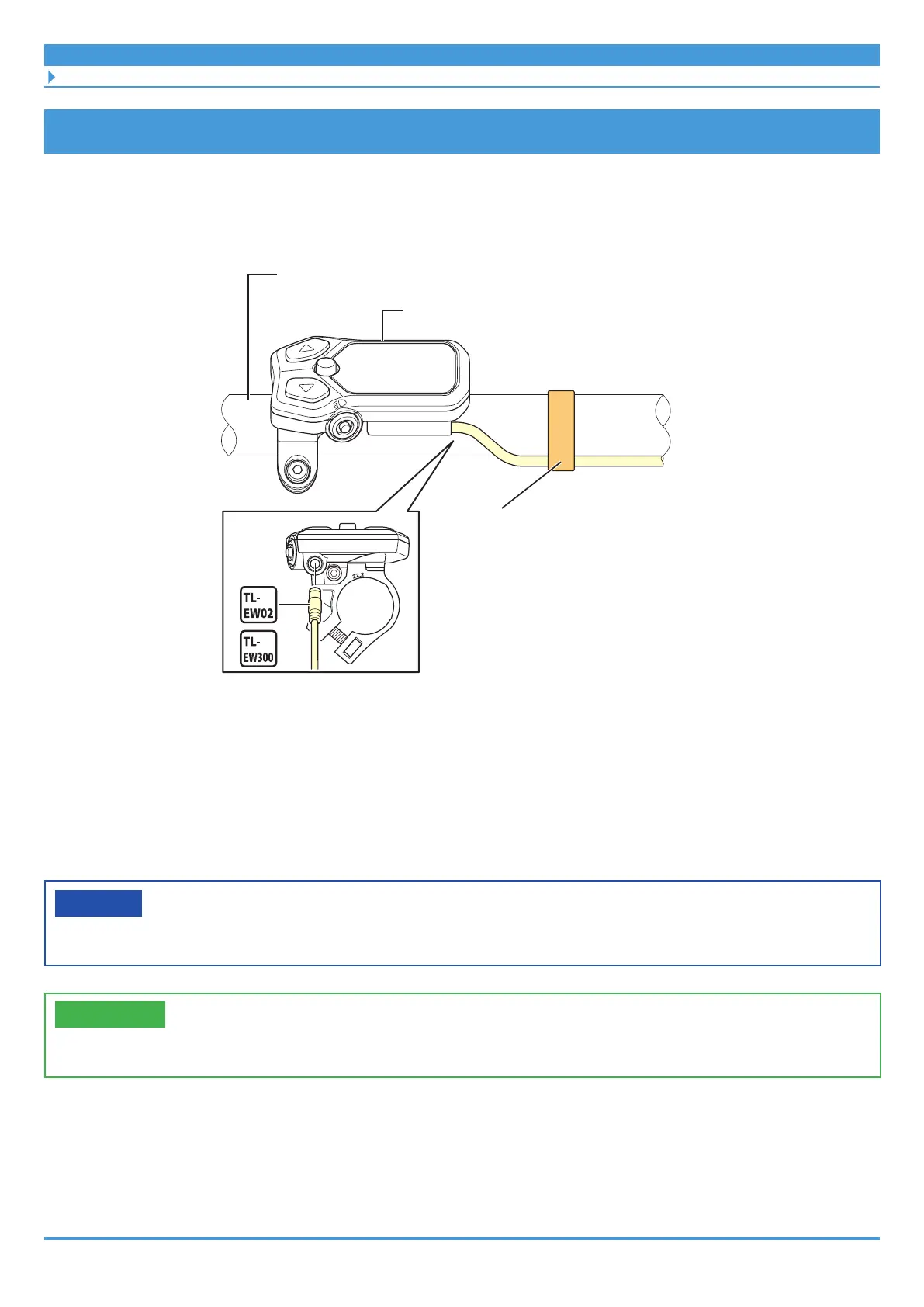

Example: Routing the electric wire
When using cord bands, the electric wire connected to the cycle computer can be secured along
the handlebar. The same applies when connecting the switch unit to the right side of the
handlebar.
Handlebar
Cord band
Cycle computer
SM-EWE1 (EW-SD50 type)
EW-CB300 (EW-SD300 type)
Wiring around the cockpit (bracket
installation type cycle computer)
For models: SC-E6100
As an example, this section explains how to connect two switch units.
NOTICE
• Be sure to attach dummy plugs to any unused E-TUBE ports.
TECH TIPS
• Configurations without a switch unit are possible, depending on the cycle computer.
1. Wire around the cockpit.
• Connect the cycle computer and the switch units using the electric wires.
To Next Page
