Installation/removal
Wiring around the cockpit (junction [A])
1. Wire around the cockpit.
To connect the switch unit, use the electric wire to connect junction [A] and the switch
unit.
To drive unit
Junction [A]
2. Prepare to wire to the drive unit.
Refer to the “SHIMANO STEPS Dealer's Manual.”
Example: Routing the electric wire

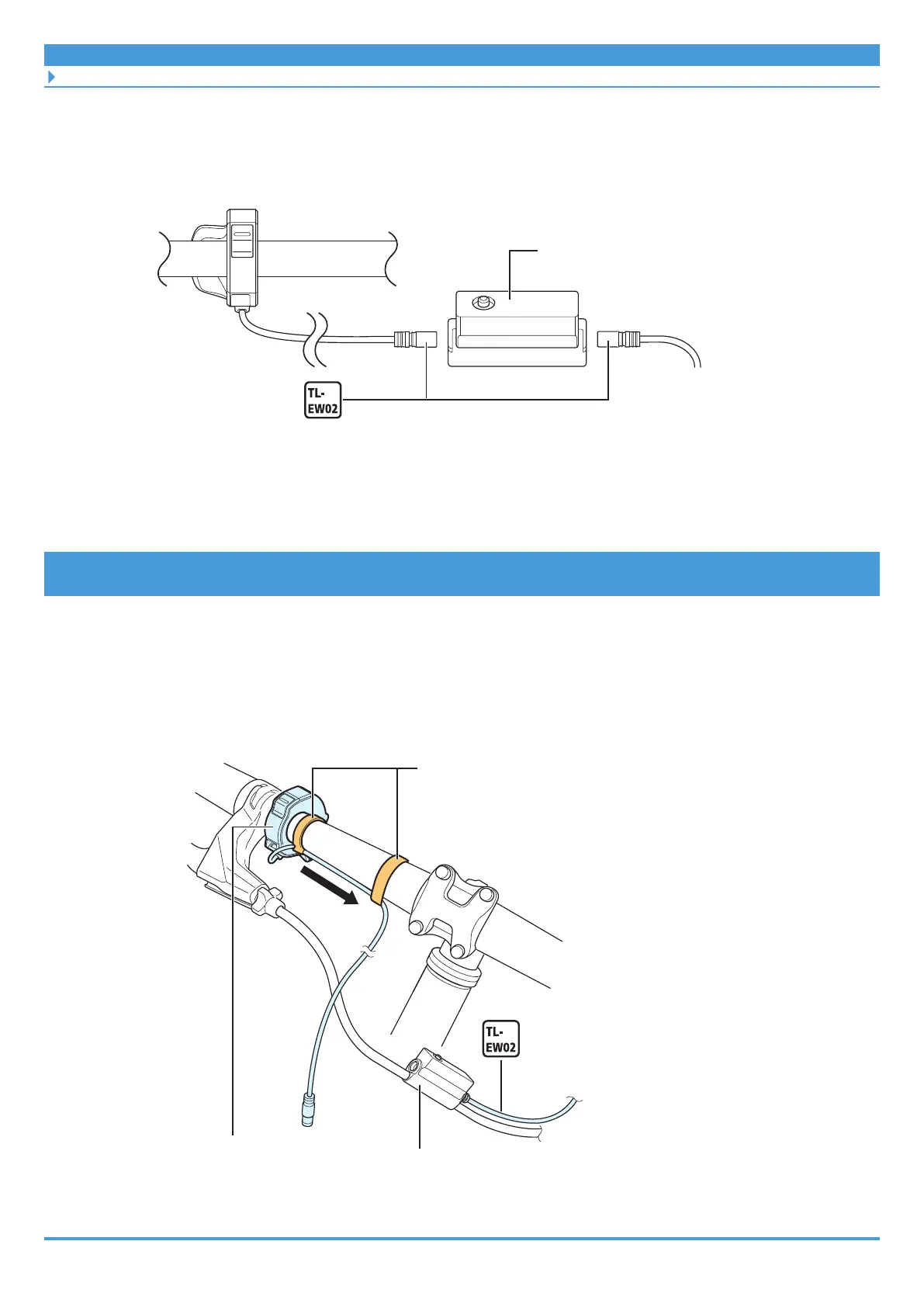

Use cord bands and a cord clip to organize the wiring around the cockpit.
1. Secure the switch unit's electric wire.
Determine the locations of the cord bands, then secure the electric wire in place along
the handlebar so that there is no slack.
Junction [A]
To drive unit
Switch unit
SM-EWE1 (EW-SD50 type)
EW-CB300 (EW-SD300 type)
