< BT-E8020 >
•
For the purposes of demonstration, these instructions take as an example a frame design where the battery is removed/
installed from below.
•
If using a battery cover manufactured by another company, remove the battery cover before removing the battery.

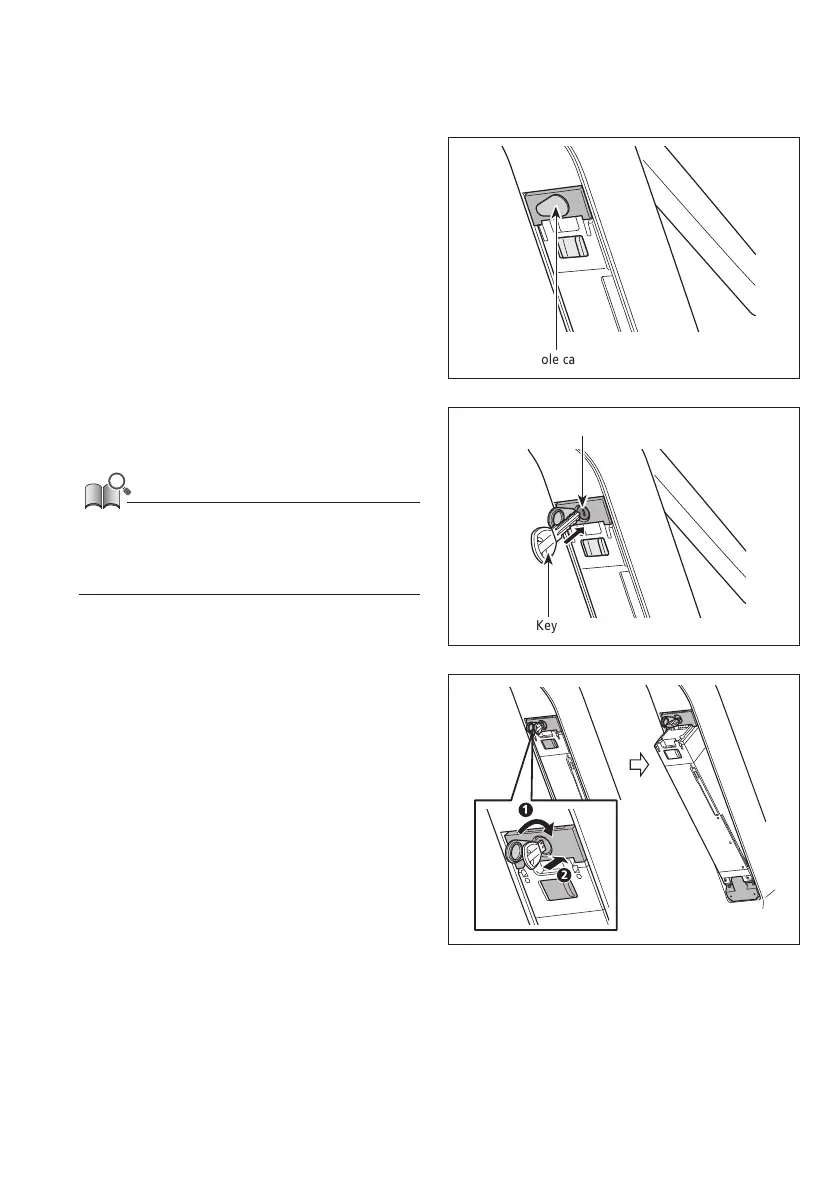

1.
Remove the keyhole cap.
Key hole cap
2.
Insert the key into the key cylinder in the battery
mount.
• The position of the key does not affect the insertion of the
battery. You can insert it regardless of the key position.
• You cannot remove the key when it is not in the inserting
position.
Key cylinder
Key
3.
To unlock the battery, turn the key clockwise and
push it in. When the battery lock is unlocked, the
plate spring holds the battery in place, preventing it
from falling out.
To Next Page
