14
Maintenance
Installing/removing the reflectors

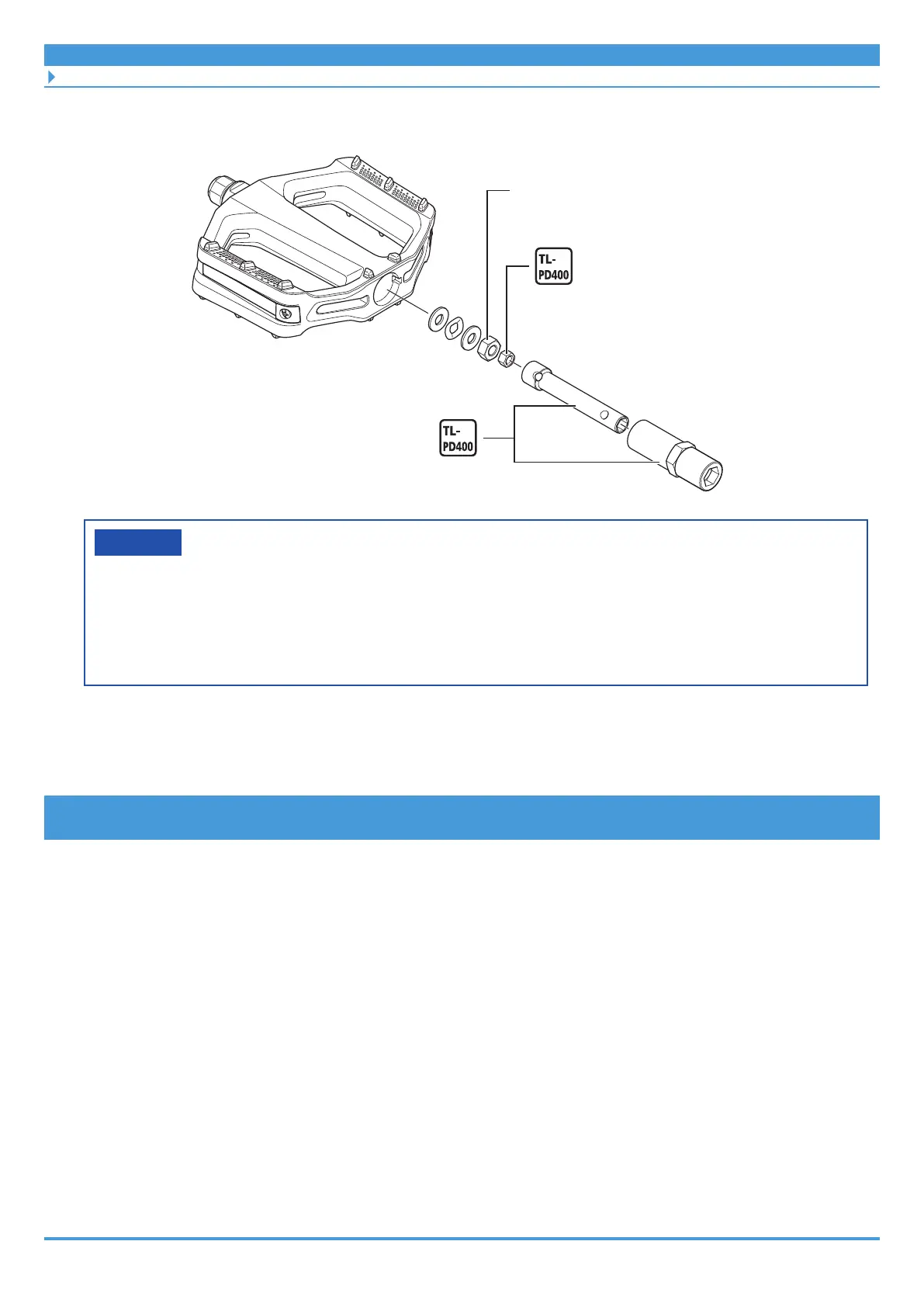

10.
With lock nut B locked, tighten the lock nut A.
5 - 7 N·m
Lock nut A
Lock nut B
NOTICE
• Both lock nut A and lock nut B are threaded right-hand for the left pedal and
threaded left-hand for the right pedal.
• Adjust lock nut B so as to achieve a smooth rotation without excess play when
the axle unit is set into the pedal.
Installing/removing the reflectors
PD-EF102/PD-EF202/PD-EF205
1. Install the reflector as shown in the figure.
(1) Remove using a cross head screwdriver.
To Next Page
