Shimano PD-MX80 - Axle Unit Adjustment

8
 Axle unit
Adjustment is required if the rotating parts are not functioning properly. Follow the procedure shown below.
1. Using a 20 mm wrench, loosen the lock bush to pull out the axle unit.
• The right pedal has a left-hand thread; the left pedal has a right-hand thread.
2. Use TL-PD63 or TL-PD33 special tool, or 7 mm or 10 mm open wrench to turn the cone (10 mm) to adjust the rotation.
3. With the cone locked, tighten the lock nut (7 mm).
Note:
• Cones and lock nuts are right-hand threads on both right and left pedals.
• Adjust the cone so as to achieve a smooth rotation without looseness when the axle unit is set into the pedal.
• The rotating parts are fastened when the axle unit is set into the pedal. Adjust them slightly loose before setup.
4. Remove old grease and apply an appropriate amount of new grease to the bottom of the pedal body.
• Apply grease to the extent that it does not flow out when the axle is set into the pedal (about 1.5 g).
5. Tighten the lock bush and insert the axle unit.

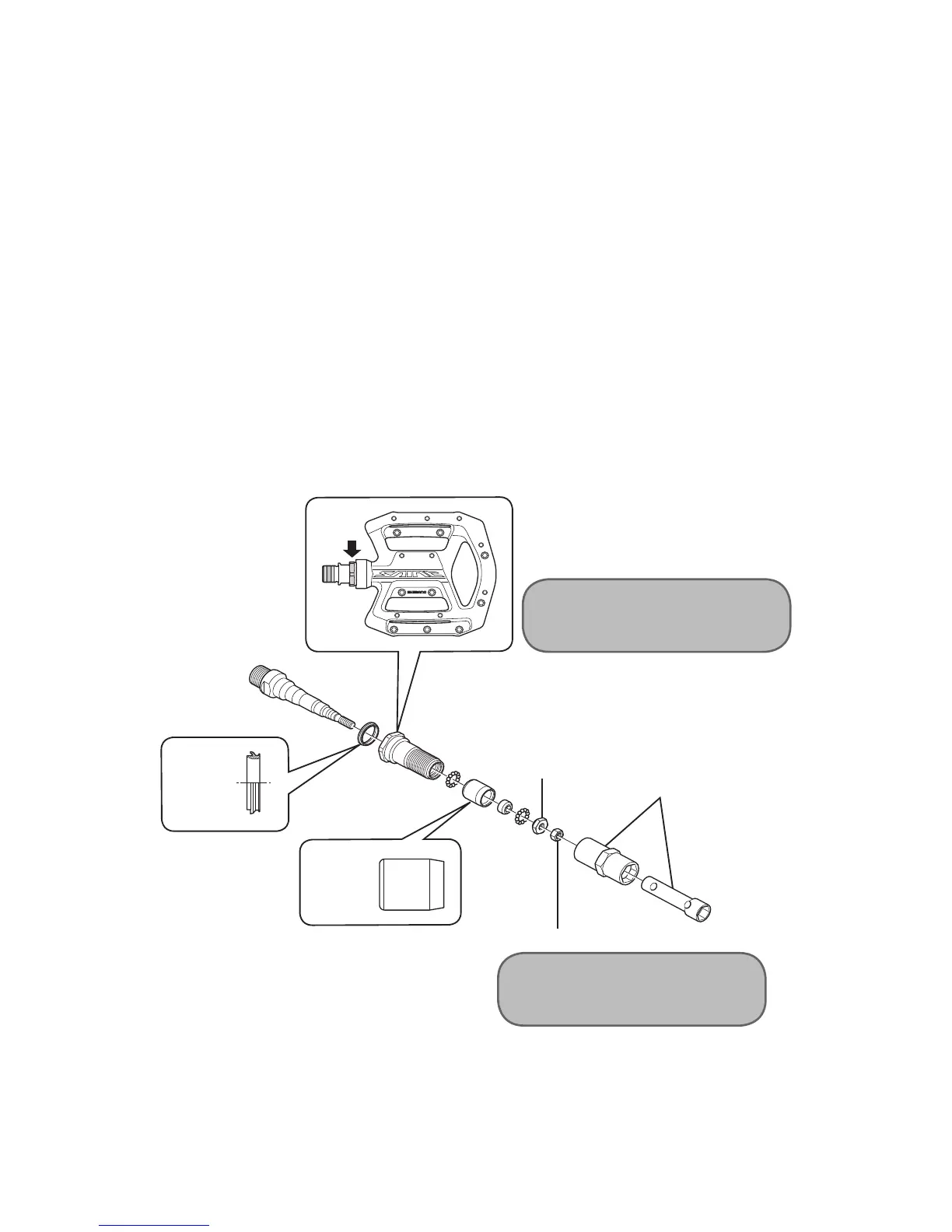

1. Lock Bush
Body cup
2. Cone
3. Lock nut
2. TL-PD63/33
When assembling the rubber seal and body
cup, please note the direction of the parts.
Rubber seal
Crank side
Crank side
Lock Bush
Tightening torque:
10 - 12 N·m {88 - 104 in. lbs.}
Lock nut
Tightening torque:
5 - 7 N·m {44 - 61 in. lbs.}
