Installation/removal
Installing satellite shifters
Installation
1. Install the SM-CB90.

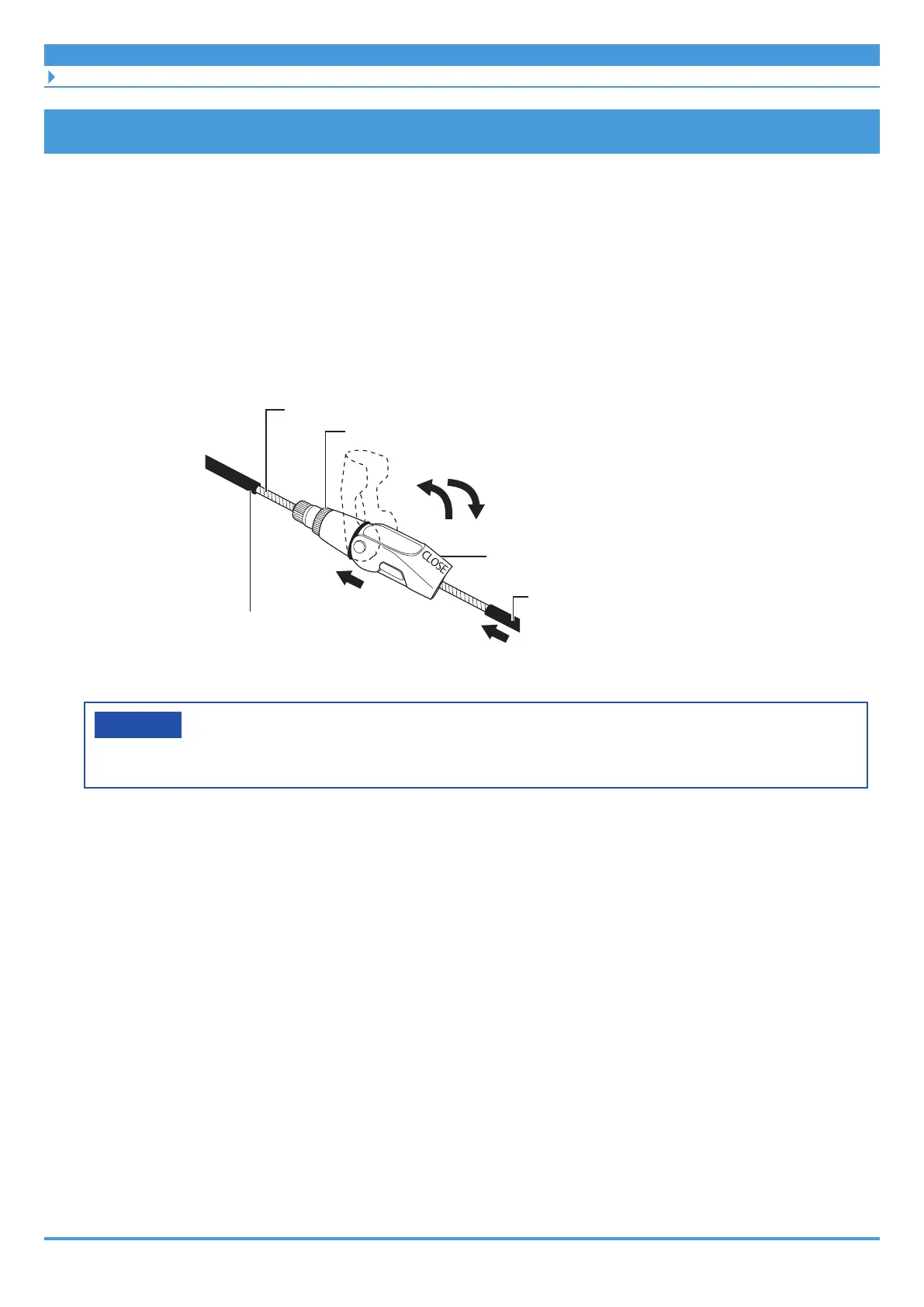

(1) Pass the inner cable through the SM-CB90 and install it to the outer casing on the
brake lever side.
(2) Move the quick release lever to the “Open” position.
(3) Install the outer casing on the brake caliper side to the SM-CB90.
(4) Move the quick release lever to the “Close” position.
Inner cable
Self-locking nut
(1)
(3)
Open
Close
Outer casing on
the brake caliper
side
Outer casing on
the brake lever side
Quick release lever
(2)
(4)
NOTICE
• Ensure the orientation of the SM-CB90 is the same as is illustrated in the figure.
Installing satellite shifters
This section describes how to add a satellite shifter.
