Adjustment
Adjusting the reach

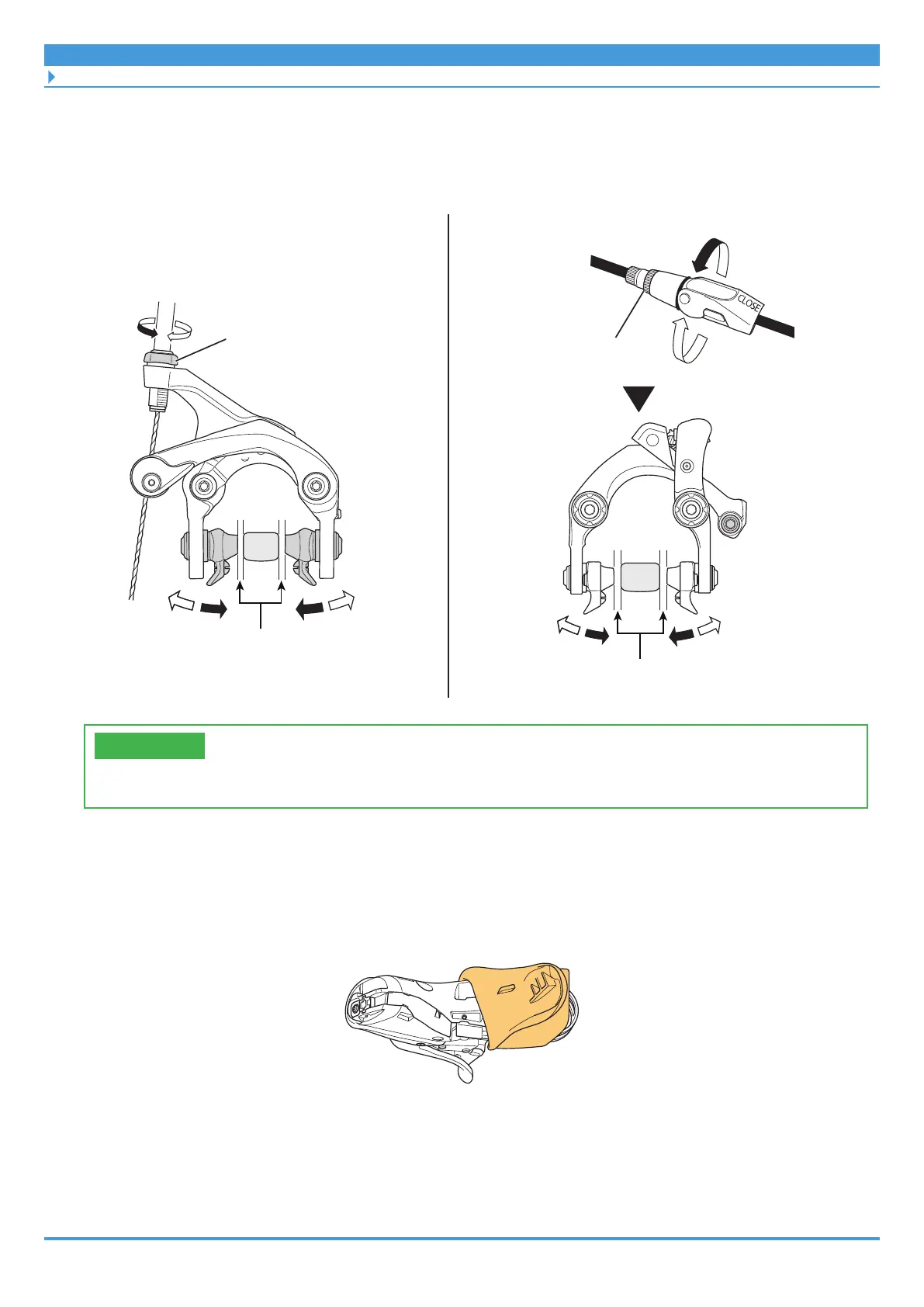

1. Turn the cable adjustment nut / self-locking nut to readjust the shoe
clearance.
Adjust the shoe clearance to be the same on the left and right (1.5 - 2 mm).
BR-R9200 / BR-R9210-F / BR-R9210-RS /
BR-R8100 / BR-R8110-F / BR-R8110-RS
BR-RS811-R
Shoe clearance
Shoe clearance
Cable adjustment nut
Self-locking nut
TECH TIPS
• When the grooves of brake shoe are worn away, replace the brake shoe.
Adjusting the reach
1. Turn over the bracket cover from the front side.
