Shimano ST-R8150 - Cable Outer Stopper Position and Appropriate Outer Casing Length (BR-RS811-R)

42
Installation/removal
Securing the BC-9000 cable

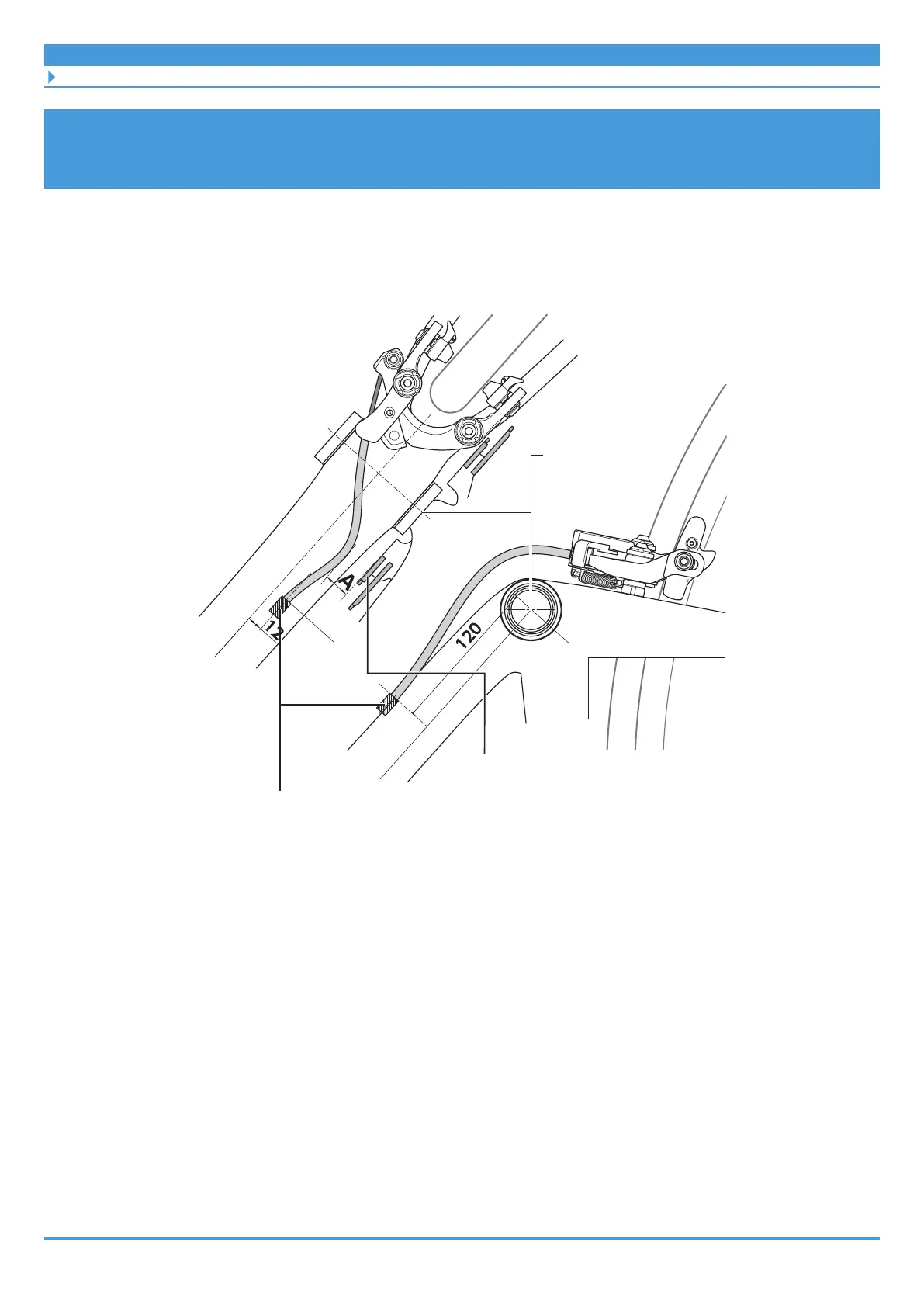

Cable outer stopper position and appropriate outer casing
length (BR-RS811-R)
` When caliper brake is open
When the caliper brake is in its resting position, ensure the edge of the outer casing is at least
15 mm from the smallest chainring. (A ≥ 15 mm)
Non drive side
Cable outer stopper
Smallest chainring
Drive side
Drive side
BB center
