48
Adjustment
Readjustment of shoe clearance (when brake shoes are worn)

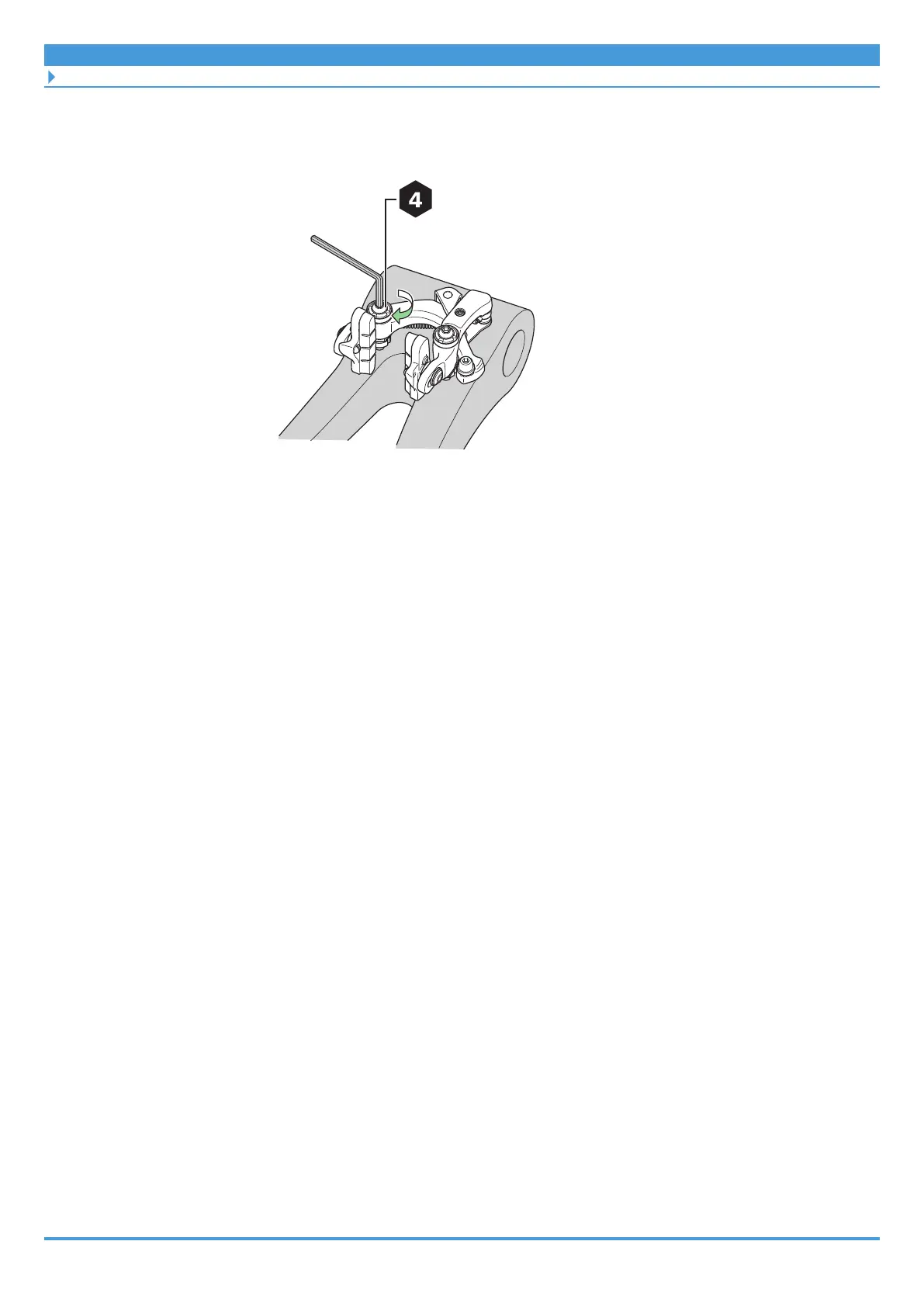

4. Secure the brake caliper.
Brake fixing screw
5 - 7 N·m
Readjustment of shoe clearance (when brake
shoes are worn)
If the clearance with the rim widens due to wear in the brake shoe, readjust the shoe clearance.
