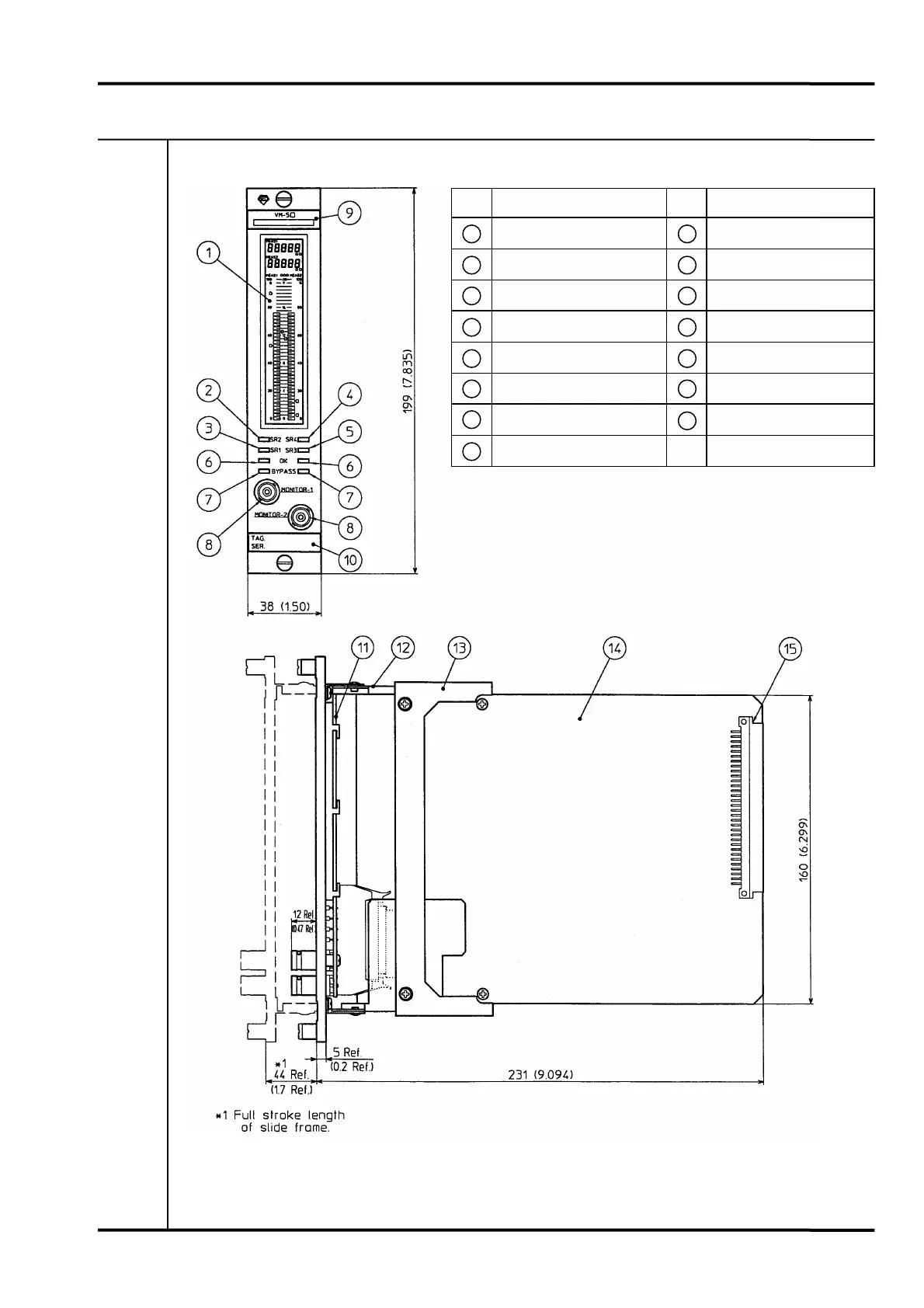

3. OUTLINE DRAWING VM-5S
-3-
No. Name No. Name
1 LCD display 9 Name plate
2 Speed relay (2) lamp 10 Tag, Ser.No. plate
3 Speed relay (1) lamp 11 LCD board
4 Speed relay (4) lamp 12 Slide frame
5 Speed relay (3) lamp 13 Main board frame
6 OK lamp 14 Main board
7 BYPASS lamp 15 DIN connector (64pin)
8 Monitor output connector --- ---------------
Finish Face plate : Munsell N-4.0 (equiv.)
Mass Max. 0.7kg (Max. 1.6lb REF.)
Unless otherwise specified, units are in millimeters (mm) and grams (g).
Reference dimensions in parentheses are in inches (in) and pounds (lb)
