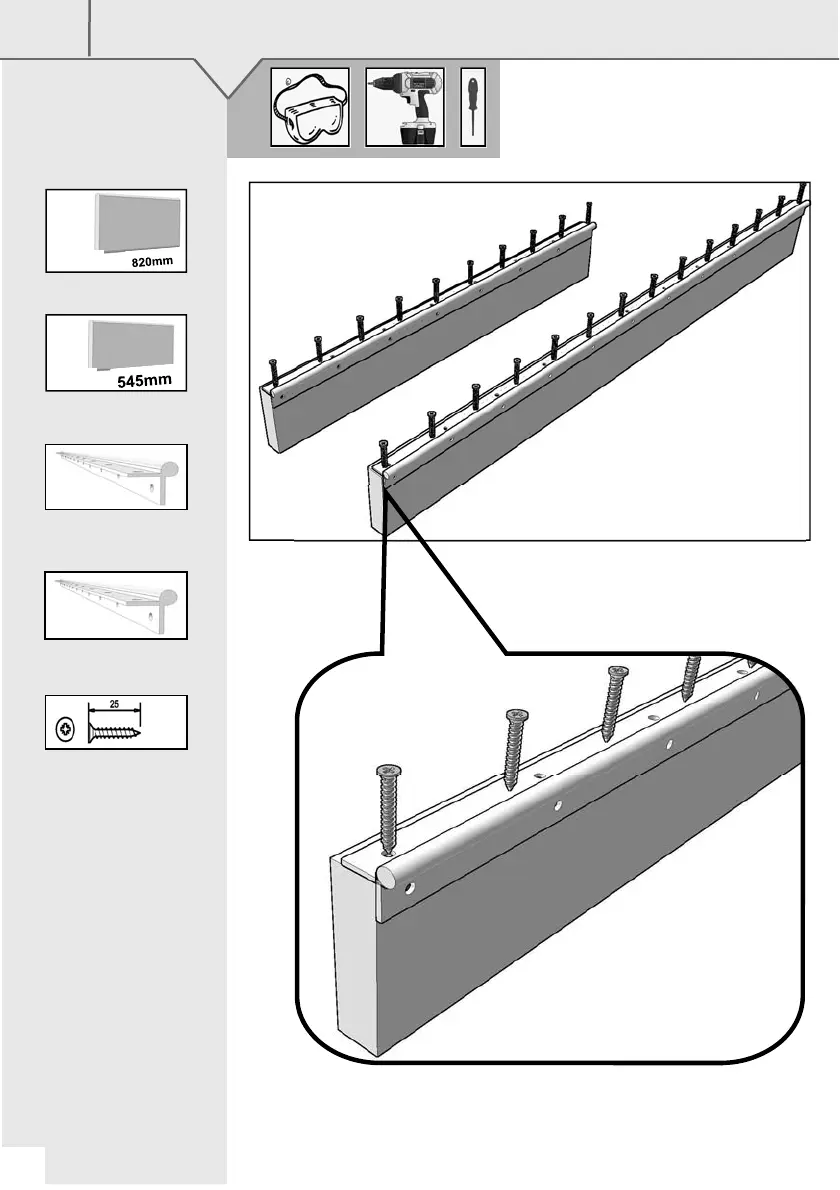

Match the continuous hinges to the view port shutters.
Fix the shorter hinge with 10 screws and the longer one with 14 screws.
18
3mm
80mm
20mm
LG view port shutter
(A0096)x01
80mm
20mm
SM view port shutter
(A0093)x01
32mm x 535mm
Continuous hinge
(A0101)x01
25mmScrew
(A0032)x24
32mm x 810mm
Continuous hinge
(A0102)x01
