Shire Command post - Page 22

08

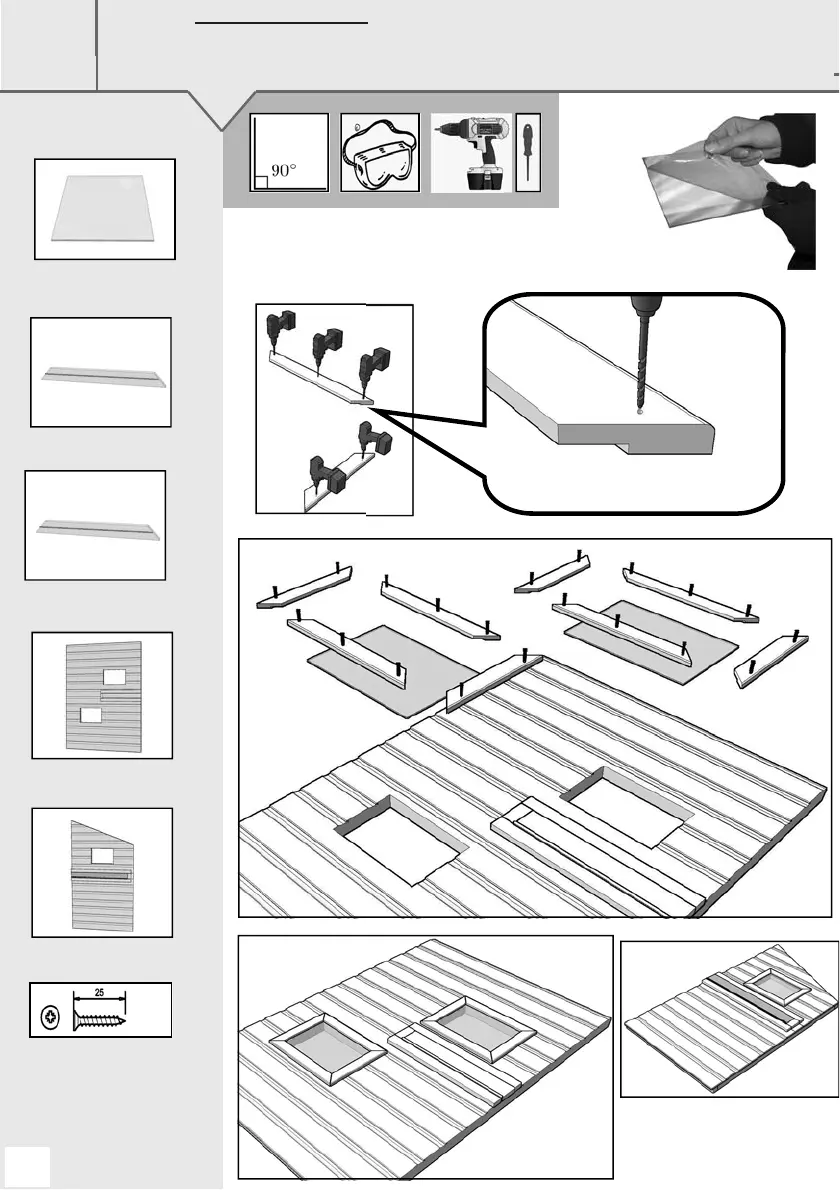

Drill 3 holes through the thicker part (not where the step for the glazing to go is) of each of the
“A0098” and 2 holes in each of the “A0099” window frame parts.
Remove the protective film from both sides of the plastic glazing.
Align the plastic glazing and the window frame over the apertures and attach with 25mm screws.
GB-IE
3mm
Step 14
Step 14
25mmScrew
(A0032)x30
Window frame
(A0098)x06
416mm
44x12mm
Window frame
(A0099)x06
309mm
44x12mm
Plastic Glazing
(A0100) x03
22
