07

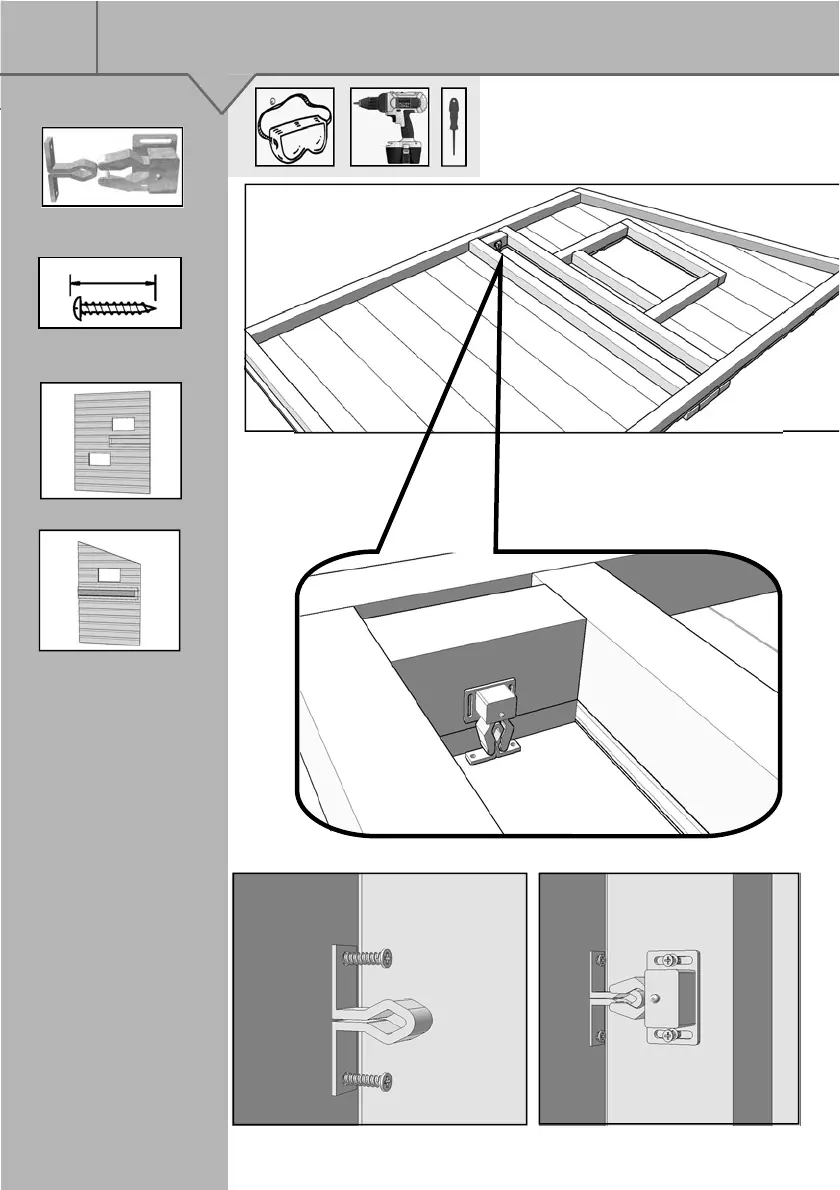

Fix the roller catch “A0090” receiving clip to the shutter then clip the roller catch to the receiver and
screw to the aperture framework
GB-IE
3mm
Roller catch
(A0090)X02
12mmScrew
(A0027) x08
