61

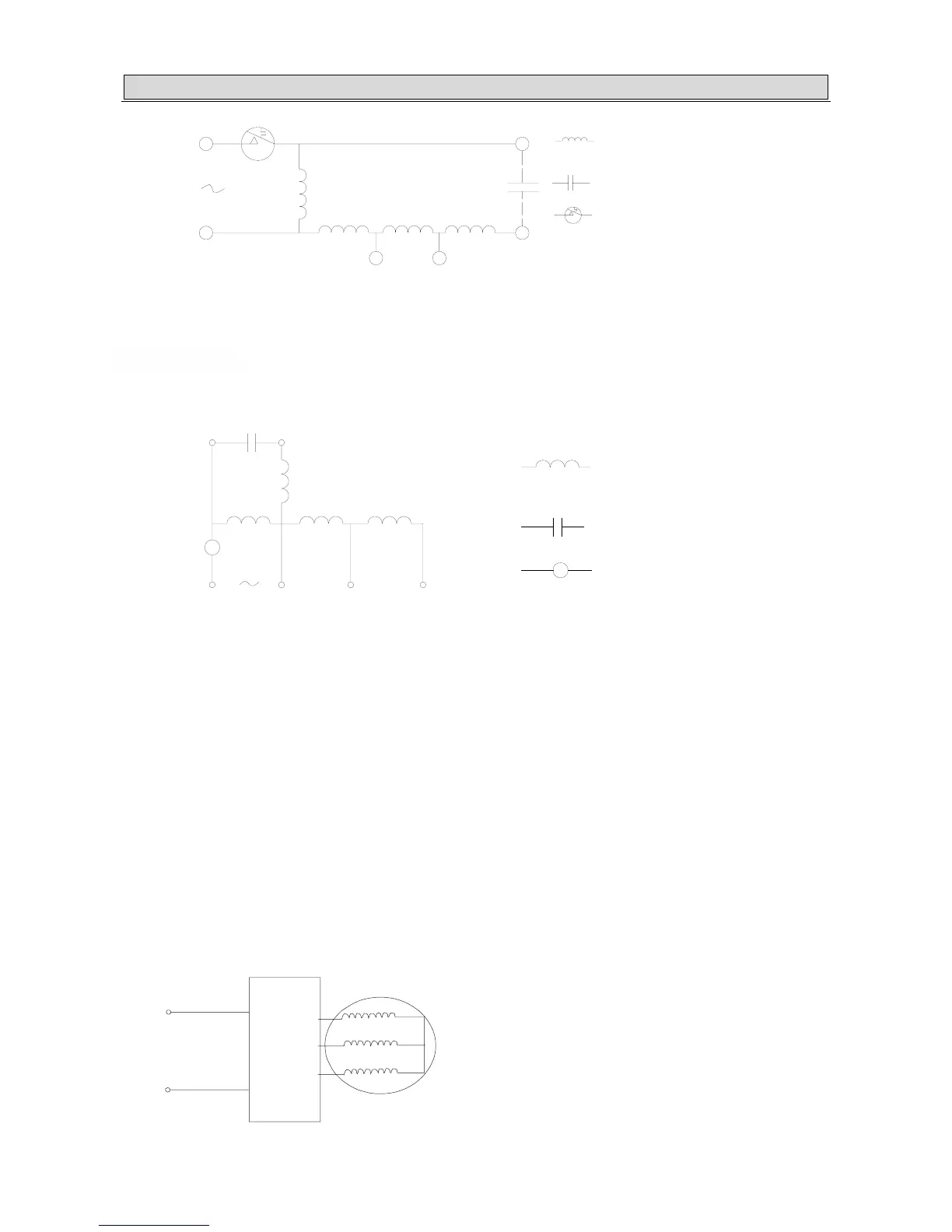

Hot Protector 130℃
Capacitor
"A"-The Auxiliary Winding
"M"-The Main Winding
TP
Winding
C
PINK
YELLOW
PURPLE
WHITE
BROWN
A3A2A1
M
Winding resistance ( at 20℃)
M: 283.5Ω A: 180Ω
AMW4-36U4SAC
4) YDK95-6-9043
P
M1 M2 M3
A
BROWN
YELLOW
WHITE BLACK BLUE RED
WINDING
M: Main winding
A: Auxiliary winding
Capacitor
P
Hot protector
Winding resistance ( at 20℃)
M1:59.1Ω M2:20.3Ω M3:15.3Ω A: 85.8Ω
Test in resistance.
TOOL: Multimeter.
Test the resistance of the main winding. The outdoor fan motor is fault if the resistance of
main winding 0(short circuit)or∞（open circuit）.
Notes:
1) Please don’t hold motor by lead wires.
2） Please don’t plug IN/OUT the motor connecter while power ON.
3） Please don’t drop hurl or dump motor against hard material. Malfunction may not be observed at
early stage after such shock. But it may be found later, this type of mishandling void our
warranty.
3. COMPRESSOR
COMPRESSOR EXAMINE AND REPAIR
DC
INVERTER
CONTROLLER
&
RU
()
SV
()
TW
()
POWER
