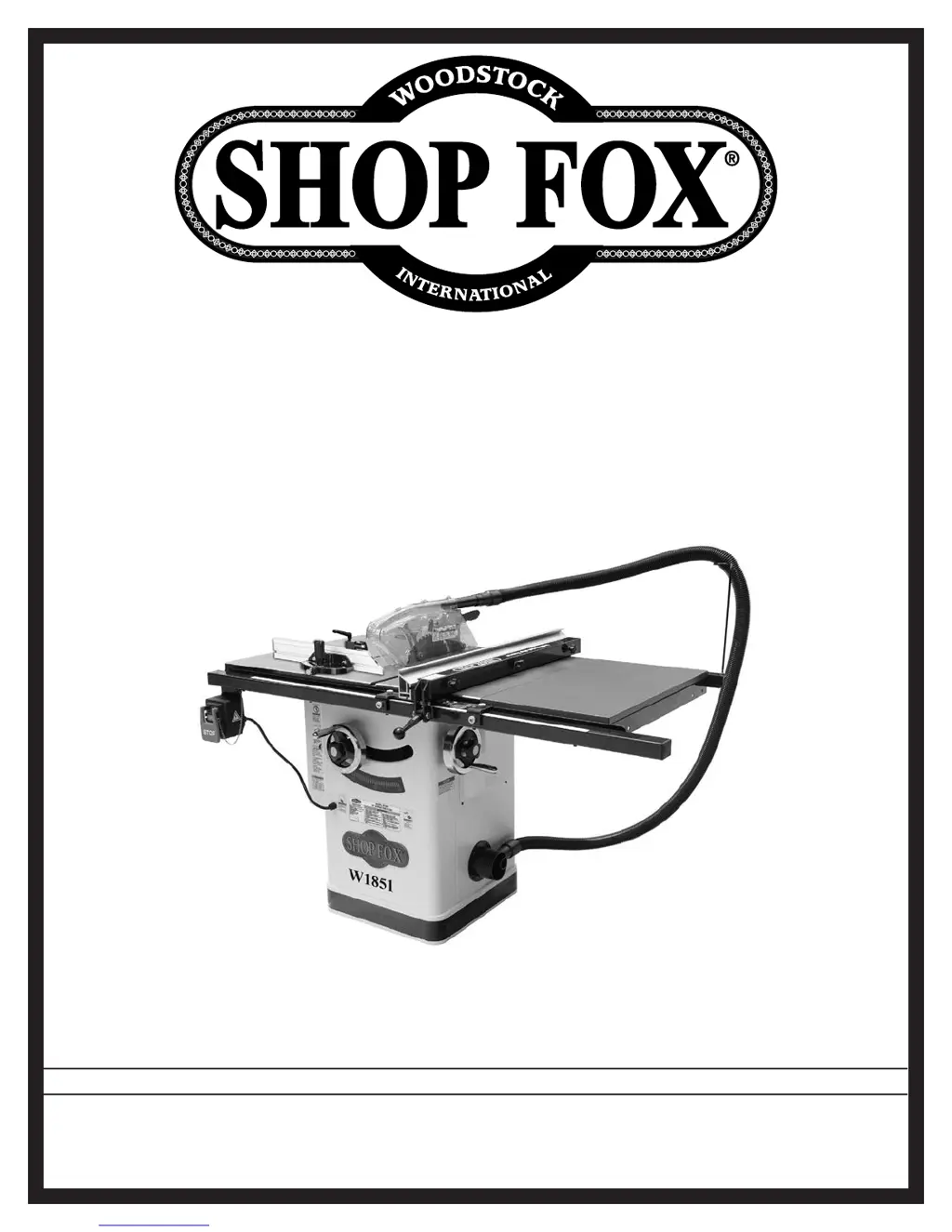

Shop fox W1851 - User Manual

Questions and Answers

S
scott42Nov 1, 2025
What to do if my Shop fox Saw does not start?
- J
  Jeffrey HenryNov 1, 2025
  If your Shop fox Saw doesn't start, there are several potential causes: * The locking pin may be installed in the switch. Remove it from the START button. * The machine circuit breaker or power supply circuit breaker may have tripped. Reset the circuit breaker on the switch, or ensure the circuit is correctly sized and free of shorts. Replace the fuse if it's blown. * The plug/receptacle could be faulty or wired incorrectly. Test for good contacts and correct the wiring. * Motor wires may be connected incorrectly. Correct the motor wiring connections. * The wiring may be open or have high resistance. Check and fix any broken, disconnected, or corroded wires. * The START/STOP switch or circuit breaker may be faulty. Replace the switch or circuit breaker. * The start capacitor...
K
Kaitlyn SalasNov 11, 2025
Why does my Shop fox Saw stall or feel underpowered?
- L
  Logan WaltersNov 11, 2025
  Your Shop fox Saw might stall or feel underpowered due to several reasons: * The feed rate or cutting speed may be too fast. Decrease it. * The workpiece material may be unsuitable for the machine. Only cut wood and ensure its moisture content is below 20%. * The motor may be overheated, tripping the machine circuit breaker. Clean the motor, let it cool, and reduce the workload. Reset the breaker. * The blade may be dull or incorrect for the type of cut. Use the correct, sharp blade and reduce the feed rate. * The belts might be slipping. Tension or replace the belts. * The motor may be wired incorrectly. Ensure it is wired correctly. * The pulleys might be slipping on the shaft or misaligned. Tighten or replace the loose pulley and ensure the pulleys are aligned. * The ru...
E
Edward HorneNov 21, 2025
How to fix vibration or noisy operation in Shop fox Saw?
- S
  Steven YoderNov 21, 2025
  If your Shop fox Saw is vibrating or operating noisily, consider these potential causes: * A motor or component might be loose. Inspect and replace any damaged bolts or nuts, and retighten them with thread-locking fluid. * The blade could be at fault. Replace a warped or bent blade, or sharpen a dull blade. * Belts or pulleys might be worn, loose, or misaligned. Inspect and replace belts with a new matched set. Re-align or replace the shaft, pulley, set screw, and key. * The motor mount could be loose or broken. Tighten or replace it. * The machine may be incorrectly mounted or resting on the floor. Tighten the mounting bolts and relocate or shim the machine. * The arbor pulley might be loose. Retighten or replace it. * The motor fan could be rubbing on the fan cover. Fix or...

Summary

INTRODUCTION

Contact Information

Details for reaching Woodstock International for support and inquiries.

Manual Accuracy and Feedback

Information on manual accuracy and how to provide feedback for improvement.

MACHINE SPECIFICATIONS

Product and Shipping Dimensions

Physical and packaging dimensions of the table saw, including weight.

Electrical Specifications

Details on power requirements, voltage, current, and circuit needs.

Motor and Main Technical Details

Specifications for the motor, arbor, blade tilt, and cut depths.

Blade, Table, Fence, and Miter Gauge Details

Detailed specifications for table, fence, and miter gauge components.

Construction and Features

Information on machine construction materials and key features.

SAFETY

Standard Machinery Safety Instructions

General safety guidelines for operating machinery safely.

Additional Safety for Table Saws

Specific safety precautions and warnings related to table saw operation.

CONTROLS & COMPONENTS

Identification of Controls and Features

Locating and understanding the function of all machine controls and features.

ELECTRICAL

Circuit and Grounding Requirements

Specifications for power supply circuits, grounding, and connectors.

Extension Cords and Voltage Conversion

Guidelines for using extension cords and converting voltage for the machine.

SETUP

Unpacking and Item Inventory

Steps for unpacking the machine and verifying all included parts.

Hardware and Component Identification

Guides for recognizing and inventorying hardware and machine components.

Machine Preparation and Placement

Instructions for cleaning, preparing, and positioning the machine.

Assembly Procedures

Step-by-step instructions for assembling the table saw.

OPERATIONS

General Operation and Workpiece Inspection

Overview of typical operations and how to inspect workpieces before cutting.

Blade and Safety Component Setup

Procedures for blade selection, installation, and safety components like guards.

Specific Cutting Operations

Detailed guides for various cutting tasks: ripping, crosscutting, dadoes, etc.

SHOP-MADE SAFETY ACCESSORIES

Featherboards and Push Devices

Instructions for making and using featherboards, push sticks, and push blocks.

Auxiliary Fences, Sleds, and Tables

Guides for creating and using jigs like auxiliary fences, crosscut sleds, and tables.

ACCESSORIES

Available Table Saw Accessories

List and descriptions of optional accessories for the table saw.

MAINTENANCE

General Maintenance Schedule

Daily, weekly, monthly, and periodic maintenance tasks for optimal performance.

Cleaning and Lubrication Procedures

Instructions for cleaning the machine and lubricating moving parts.

SERVICE

Blade Adjustments

Procedures for adjusting blade tilt stops for accurate cuts.

Alignment and Parallelism Adjustments

Steps to ensure proper alignment of miter slots, fences, and safety components.

Component Adjustments and Calibration

Adjusting fence, table inserts, miter gauge, and belt tension for optimal performance.

Troubleshooting

Guide to diagnosing and resolving common machine problems.

Electrical Safety and Wiring

Safety guidelines, component identification, and wiring diagrams for electrical systems.

PARTS

Major Assembly and Component Breakdowns

Diagrams and lists of parts for major machine assemblies like the body and trunnions.

WARRANTY

Warranty Registration Form

Form for registering the product's warranty.

Warranty Terms and Conditions

Details of the product's warranty coverage and limitations.

Shop fox W1851 Specifications

General

Type	Table Saw
Blade Diameter	10 inches
Arbor Size	5/8 inches
Max Cutting Depth at 90 Degrees	3-1/8 inches
Max Cutting Depth at 45 Degrees	2-1/4 inches
Maximum Rip Capacity Left of Blade	12 inches
Table Height	34 inches
Motor	1.75 HP
Table Size	27 x 20 inches
Maximum Rip Capacity Right of Blade	30 inches
Dust Port	4 inches
