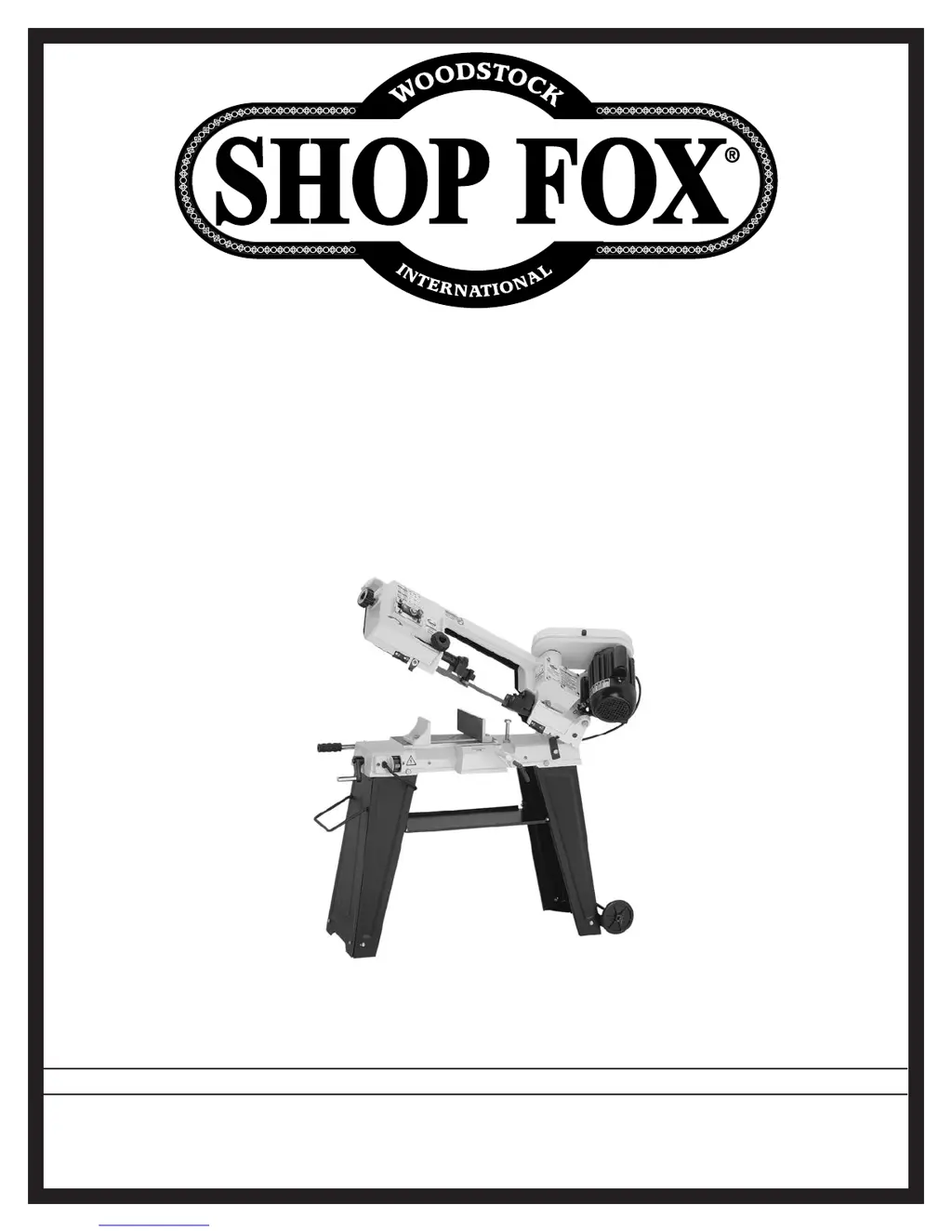

MODEL W1715
4" X 6" Metal Cutting
Bandsaw
Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@woodstockint.com
COPYRIGHT © July, 2003 BY WOODSTOCK INTERNATIONAL, INC., REVISED DECEMBER, 2013 (ST)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China#5435JT
OWNER'S MANUAL
(FOR MODELS MANUFACTURED AFTER 2/08)

Table of Contents

Questions and Answers

  • A
    Autumn CarrAug 20, 2025
    What to do if my Shop Fox Saw does not start?
    • E
      emily18Aug 20, 2025
      If your Shop Fox Saw doesn't start or the breaker trips, there are several potential causes. It could be a faulty or incorrectly wired plug/receptacle, in which case you should test for good contact or correct the wiring. The start capacitor might be at fault, requiring testing and replacement if necessary. Incorrect motor connection wiring should be corrected. Ensure your power supply is operational with the correct voltage. A faulty ON/OFF switch should be replaced. Check for open or high resistance wiring, repairing or replacing as needed. Finally, the motor itself could be at fault, requiring testing, repair, or replacement.
  • B
    Bill GatesAug 21, 2025
    Why is my Shop fox W1715 Saw stalling?
    • B
      Brianna AndersonAug 22, 2025
      If your Shop Fox Saw stalls or seems under-powered, consider these possibilities. You might be using the wrong blade for the workpiece material; ensure you use a blade with the correct properties for your cutting task. A feed rate that's too fast can also cause this issue, so try decreasing it. Slipping V-belts should be replaced and re-tensioned. If the blade is slipping on the wheels, adjust the blade tracking and tension. A pulley or sprocket slipping on the shaft should be replaced. Faulty motor bearings, indicated by rotational grinding or a loose shaft, require bearing replacement. Finally, the motor itself could be at fault, needing testing, repair, or replacement.
  • S
    Sheila DonovanAug 25, 2025
    Why do Shop fox W1715 blades break so often?
    • E
      Elizabeth JuarezAug 25, 2025
      If blades break often on your Shop Fox Saw, it could be due to several reasons. Ensure the workpiece is tightly clamped in the vise, using a jig if necessary. Starting the bandsaw with the blade resting on the workpiece can cause breakage, so start the saw first, then slowly lower the headstock by setting the feed rate. The blade may be too thick or of low quality, so try using a higher quality blade.
  • S
    Stacy PetersonAug 26, 2025
    How to fix vibration in my Shop fox W1715?
    • M
      Michael JonesAug 26, 2025
      If your Shop Fox Saw is vibrating or operating noisily, check these potential causes. A V-belt slapping against the belt cover might be the issue, so inspect the belt cover for proper installation. A worn or loose V-belt should be inspected and replaced with a new one. Also, a loose pulley can cause vibration, so realign or replace the shaft, pulley, setscrew, and key as required.
  • A
    Alexander HoffmanAug 27, 2025
    What causes a Shop fox W1715 Saw blade to dull quickly?
    • S
      Sheila GrantAug 27, 2025
      If the blade on your Shop Fox Saw dulls prematurely, it could be due to several factors. The workpiece might have hard spots, welds, or scale on the material; try increasing the feed pressure and reducing the cutting speed. A twisted blade should be replaced.
  • S
    stevensrodneyAug 29, 2025
    Why are teeth ripping from my Shop Fox Saw blade?
    • J
      Jamie MontgomeryAug 29, 2025
      If teeth are ripping from the blade on your Shop Fox Saw, it could be because the workpiece is vibrating in the vise; re-clamp the workpiece and use a jig if needed. The blade gullets might be loading up with chips, so try using a coarser-tooth blade.
  • A
    Amber BeltranAug 31, 2025
    Why does my Shop Fox Saw blade wear on one side?
    • L
      Linda ReedSep 1, 2025
      If the blade on your Shop Fox Saw wears on one side, the blade guide slide bracket might be loose, so tighten it.
  • M
    Megan ClarkSep 5, 2025
    Why is my Shop fox Saw stalling or under-powered?
    • C
      Cynthia PhillipsSep 5, 2025
      Your Shop fox Saw might be stalling or under-powered due to: 1. Using the wrong blade for the workpiece material. Use a blade with the correct properties for your type of cutting. 2. A feed rate that's too fast. Decrease the feed rate. 3. A slipping V-belt. Replace the bad V-belt and re-tension it. 4. The blade slipping on the wheels. Adjust blade tracking and tension. 5. A pulley or sprocket slipping on the shaft. Replace the loose pulley or shaft. 6. Faulty motor bearings. Test by rotating the shaft; rotational grinding or a loose shaft requires bearing replacement. 7. A faulty motor. Test, repair, or replace it.
  • J
    Joseph HunterSep 7, 2025
    What causes vibration or noisy operation in my Shop fox Saw?
    • C
      Cheryl HallSep 7, 2025
      If your Shop fox Saw is vibrating or operating noisily, consider these potential causes: * The V-belt is slapping the belt cover. Inspect the belt cover for proper installation. * The V-belt is worn or loose. Inspect and replace the belt with a new one. * The pulley is loose. Realign or replace the shaft, pulley, setscrew, and key as required.
  • W
    walkersamanthaSep 12, 2025
    Why is my Shop fox Saw blade dulling prematurely?
    • J
      Jeffrey FrederickSep 12, 2025
      A Shop fox Saw blade might be dulling prematurely because: 1. The cutting speed is too fast. Refer to Blade Speed on Page 24 and adjust as required. 2. The blade TPI is too coarse. Refer to Blade Selection on Page 26 and adjust as required. 3. The blade feed pressure is too light. Refer to Feed Rate on Page 23, and adjust as required. 4. The workpiece has hard spots, welds, or scale on the material. Increase the feed pressure and reduce the cutting speed. 5. The blade is twisted. Replace the blade. 6. The blade is slipping on the wheels. Refer to Blade Tension on Page 32, and adjust as required.

Summary

Machine Specifications Overview

Controls and Features Identification

Safety Information and Precautions

Standard Safety Instructions

General safety guidelines to follow before and during machine operation.

Additional Safety Instructions

Specific safety advice tailored for bandsaw operation.

Avoiding Potential Injuries

Electrical Setup and Operation

Electrical Specifications

Required electrical parameters such as voltage, amperage, and circuit size.

Setup and Unpacking Procedures

Machine Placement Guidelines

Recommendations for selecting a suitable and safe location for the bandsaw.

Assembly Instructions

Step-by-step guide for assembling the bandsaw stand and components.

Test Run Procedures

Steps to verify the machine operates correctly after assembly.

Operations Guide for Bandsaw

Operation Tips for Bandsaw Use

Using the Vise for Cutting

Blade Guides Adjustment

Feed Rate Control

Blade Speed Adjustment

Blade Selection Guide

Recommendations for choosing the correct blade based on material and TPI.

Maintenance Procedures

Service and Troubleshooting Guide

Blade Change Procedure

Step-by-step instructions for replacing the bandsaw blade.

Blade Tracking Adjustment

How to align the blade for proper tracking on the wheels.

Blade Tensioning Instructions

Proper methods for setting blade tension for optimal performance.

Squaring the Blade to Table

Procedure to ensure the blade is perpendicular to the table surface.

Blade Guide Bearings Adjustment

How to adjust guide bearings for accurate cuts.

Electrical Safety Instructions

Critical safety warnings and guidelines for working with electrical systems.

Wiring Diagram Explained

Troubleshooting Common Issues

Parts List and Identification

Shop fox W1715 Specifications
