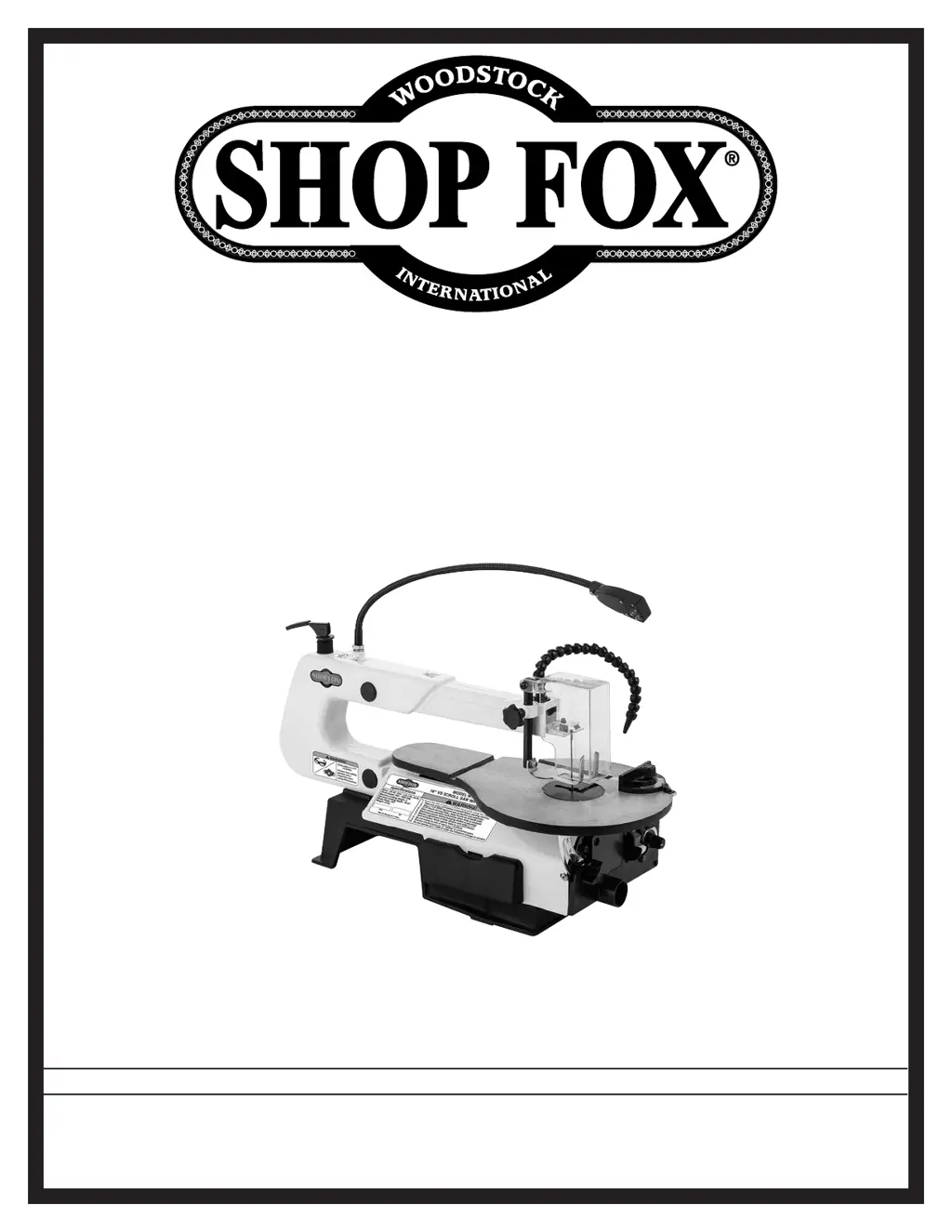

Shop fox W1872 - User Manual

Questions and Answers

J
James KnightJul 29, 2025
What to do if my Shop Fox Saw does not start?
- R
  Randall HaysJul 30, 2025
  If your Shop Fox Saw doesn't start, several issues could be the cause. It could be a faulty variable-speed potentiometer (test or repair it), a missing switch disabling key (install it), a tripped circuit breaker or blown fuse (ensure the circuit is correctly sized and free of shorts, then reset the breaker or replace the fuse), incorrect power supply voltage or circuit size (ensure they are correct), a faulty circuit board (inspect or replace it), or a problem with the motor (test, repair, or replace it).
K
Katherine RodriguezAug 4, 2025
Why does my Shop fox W1872 Saw stall or seem underpowered?
- J
  John BridgesAug 4, 2025
  Your Shop Fox Saw might stall or seem underpowered due to a blown fuse (replace it and ensure there are no shorts), incorrect workpiece material (inspect and replace if needed), a feed rate or cutting speed that's too fast (decrease it), the machine being undersized for the task (use the correct blade or reduce the feed rate or depth of cut), faulty motor brushes (remove and replace them), or an overheated motor (let it cool and reduce the workload).
Y
yzamoraAug 10, 2025
What to do if my Shop Fox Saw has excessive blade breakage?
- W
  William ColeAug 10, 2025
  Excessive blade breakage in your Shop Fox Saw can occur if the blade isn't correctly tensioned (properly tension the blade), you're not using relief cuts when cutting tight curves and are twisting the blade (use more relief cuts, reduce the feed rate, and don't twist the blade), the wrong blade is used for the operation (select the correct blade for the operation), or there's too much pressure on the blade (reduce pressure on the workpiece as it passes through the blade).
W
wheelerrobertAug 17, 2025
Why does my Shop fox W1872 have vibration or noisy operation?
- B
  bethbarreraAug 17, 2025
  Vibration or noisy operation in your Shop Fox Saw could be due to a loose motor or component (replace damaged or missing bolts/nuts or tighten if loose), a faulty blade (replace a warped or bent blade), the saw being incorrectly mounted to the workbench (tighten mounting hardware), or a loose or broken motor mount (tighten or replace it).
N
Nichole BrownAug 23, 2025
How to keep the blade on the layout line on my Shop fox W1872?
- R
  Robert SmithAug 23, 2025
  If the blade won't stay on the layout line on your Shop Fox Saw, it could be due to the blade not being tensioned correctly (properly tension the blade), too much pressure applied to the workpiece (reduce feed rate and pressure), or the blade holders not aligned correctly (re-adjust blade holders so they are aligned in a straight line with the saw).

Summary

INTRODUCTION

Woodstock Technical Support

Contact information for technical assistance and support for the machine.

MACHINE SPECIFICATIONS

Product, Shipping, and Electrical Specs

Details on machine dimensions, shipping information, and electrical requirements.

Capacities and Blade Specifications

Information on cutting capacities, blade size, and stroke per minute.

Rotary Tool, Construction, and Features

Specifications for rotary tool, construction materials, and machine features.

Identification

Component Identification

Visual guide to identify machine controls and features for better understanding.

Controls & Components

Power and Speed Controls

Details on operating the power switch, disabling key, and variable speed dial.

Workpiece Support and Tension Controls

Adjustments for the hold-down shoe, lock knob, and blade tension knob.

SAFETY

General Safety Instructions

Essential safety guidelines covering general machinery operation and warnings.

Additional Safety for Scroll Saws

Specific safety precautions and warnings unique to operating scroll saws.

ELECTRICAL

Circuit Requirements

Necessary power supply circuit specifications for safe machine operation.

Grounding and Extension Cords

Guidelines for proper grounding and recommended extension cord usage.

SETUP

Unpacking and Inventory Check

Procedures for unpacking the machine and verifying all included parts.

Machine Placement and Clearance

Guidelines for selecting a safe and appropriate location for the machine.

Workbench Mounting Options

Methods for securely attaching the machine to a workbench.

Initial Assembly Steps

Instructions for assembling basic components of the scroll saw.

Flex-Shaft Installation

Procedure for connecting and securing the flex-shaft tool to the machine.

Dust Collection Setup

Steps to connect a dust collection hose to the machine's dust port.

Test Run Procedure

Steps to verify machine functionality and safety after setup.

OPERATIONS

General Operation Overview

A summary of typical steps for operating the scroll saw.

Workpiece Inspection and Cutting Tips

How to inspect workpieces and general advice for cutting.

Hold-Down Shoe and Blade Guard Adjustment

Adjusting the shoe and guard for safe operation and debris management.

Blade Tension and Bevel Cuts

Adjusting blade tension and performing bevel cuts.

Inside Cuts Procedure

Steps for performing internal cuts by threading the blade through a hole.

Blade Speed and Selection

Adjusting blade speed and choosing the appropriate blade type.

Installing Pin-End Blades

Detailed steps for fitting pin-end blades into the saw's holders.

Installing Plain-End Blades

Instructions for using adapters to install plain-end blades.

Using the Flex-Shaft Tool

How to operate the flex-shaft rotary tool accessory.

ACCESSORIES

Scroll Saw Accessories

Information on optional accessories available for the scroll saw.

MAINTENANCE

General Maintenance and Cleaning

Routine checks, cleaning, and protecting the machine for optimal performance.

Lubrication Procedure

Steps for lubricating the sleeve bearings on the machine.

SERVICE

Calibrating Table Tilt

Adjusting the table to ensure accurate bevel cuts.

Replacing Fuse and Motor Brushes

Procedures for replacing common wear items like fuses and brushes.

Replacing the Timing Belt

Steps for replacing the internal timing belt of the machine.

Troubleshooting

Troubleshooting Common Problems

Solutions for typical issues encountered with the scroll saw.

Electrical Safety Instructions

Electrical Safety Warnings and Guidelines

Crucial safety information regarding electrical systems and modifications.

Electrical Components

Electrical Component Identification

Visual guide to locate and identify electrical parts of the machine.

Wiring Diagram

Machine Wiring Diagram

Schematic showing the electrical connections within the machine.

PARTS

Main Parts Diagram

Illustrated view of the machine's main components with part numbers.

Main Parts List

Detailed list of all parts with reference numbers and descriptions.

Labels & Cosmetics

Labels and Cosmetic Parts

Identification of warning labels and cosmetic parts on the machine.

WARRANTY

Warranty Information

Details on the product warranty coverage, terms, and registration.

Shop fox W1872 Specifications

General

Brand	Shop fox
Model	W1872
Category	Saw
Language	English
