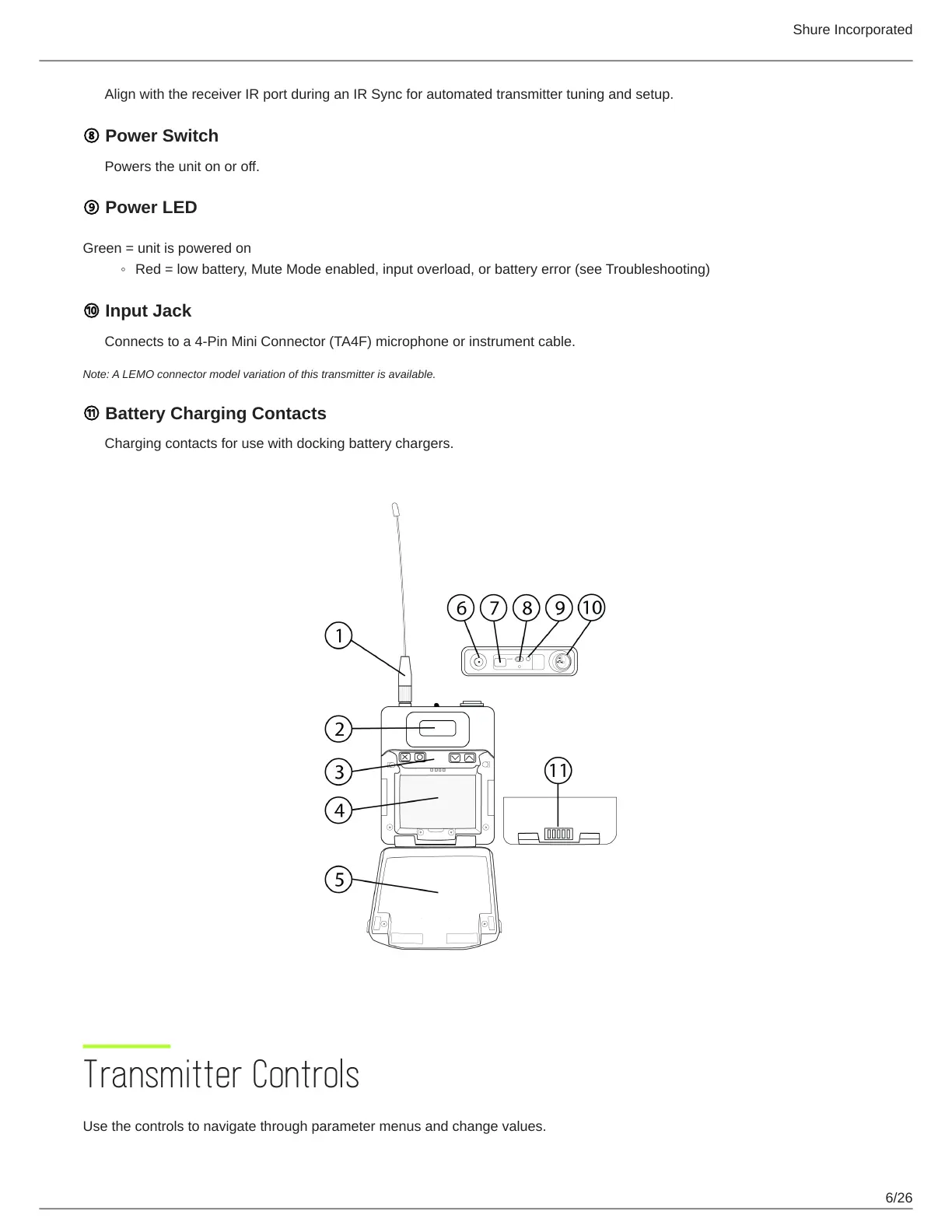

Align with the receiver IR port during an IR Sync for automated transmitter tuning and setup.
⑧ Power Switch
Powers the unit on or off.
⑨ Power LED
Green = unit is powered on
Red = low battery, Mute Mode enabled, input overload, or battery error (see Troubleshooting)
⑩ Input Jack
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
Note: A LEMO connector model variation of this transmitter is available.
⑪ Battery Charging Contacts
Charging contacts for use with docking battery chargers.
Transmitter Controls
Use the controls to navigate through parameter menus and change values.
