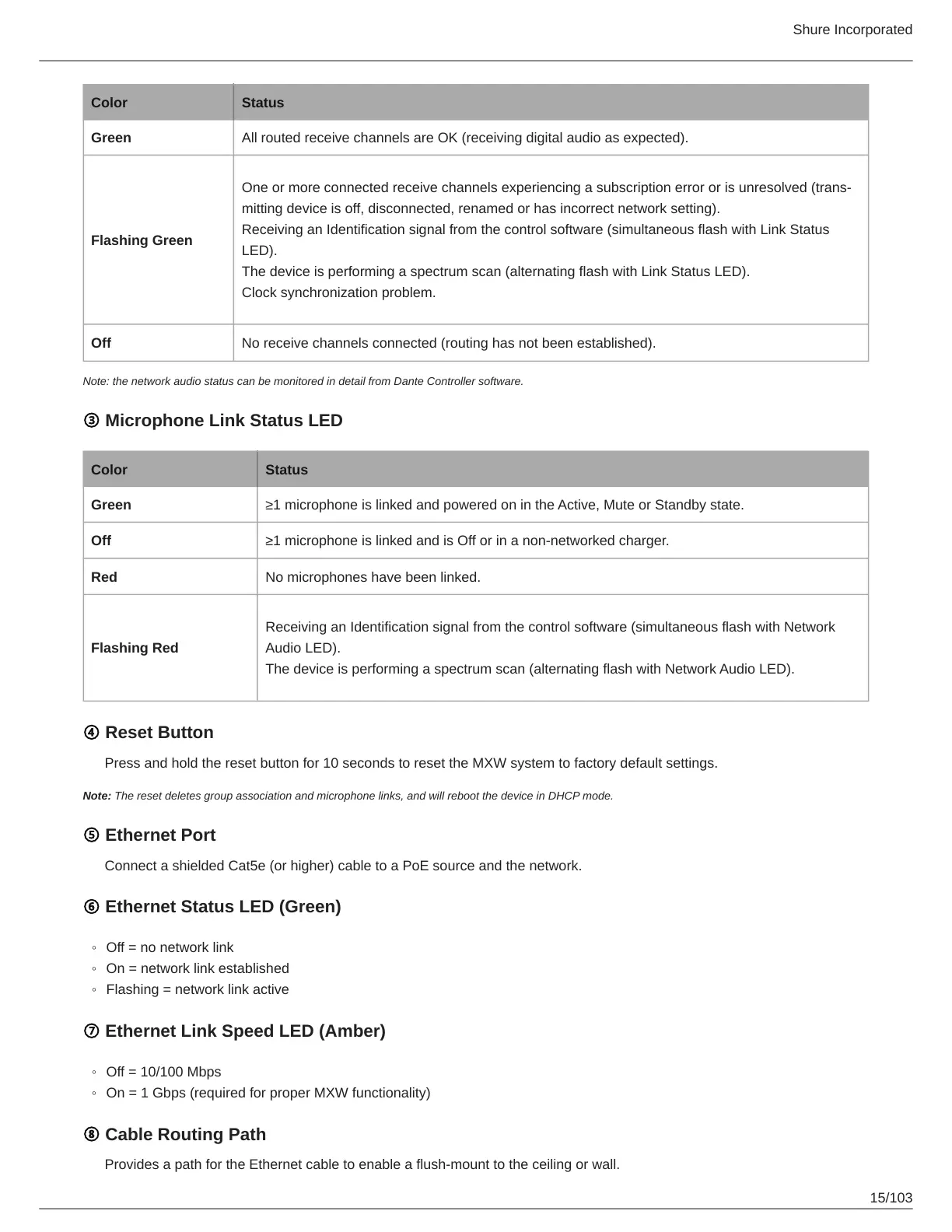

Shure Incorporated
15/103
◦
◦
◦
◦
◦
Color Status
Green All routed receive channels are OK (receiving digital audio as expected).
Flashing Green
One or more connected receive channels experiencing a subscription error or is unresolved (trans
mitting device is off, disconnected, renamed or has incorrect network setting).
Receiving an Identification signal from the control software (simultaneous flash with Link Status
LED).
The device is performing a spectrum scan (alternating flash with Link Status LED).
Clock synchronization problem.
Off No receive channels connected (routing has not been established).
Note: the network audio status can be monitored in detail from Dante Controller software.
③ Microphone Link Status LED
Color Status
Green ≥1 microphone is linked and powered on in the Active, Mute or Standby state.
Off ≥1 microphone is linked and is Off or in a nonnetworked charger.
Red No microphones have been linked.
Flashing Red
Receiving an Identification signal from the control software (simultaneous flash with Network
Audio LED).
The device is performing a spectrum scan (alternating flash with Network Audio LED).
④ Reset Button
Press and hold the reset button for 10 seconds to reset the MXW system to factory default settings.
Note: The reset deletes group association and microphone links, and will reboot the device in DHCP mode.
⑤ Ethernet Port
Connect a shielded Cat5e (or higher) cable to a PoE source and the network.
⑥ Ethernet Status LED (Green)
Off = no network link
On = network link established
Flashing = network link active
⑦ Ethernet Link Speed LED (Amber)
Off = 10/100 Mbps
On = 1 Gbps (required for proper MXW functionality)
⑧ Cable Routing Path
Provides a path for the Ethernet cable to enable a flush-mount to the ceiling or wall.
