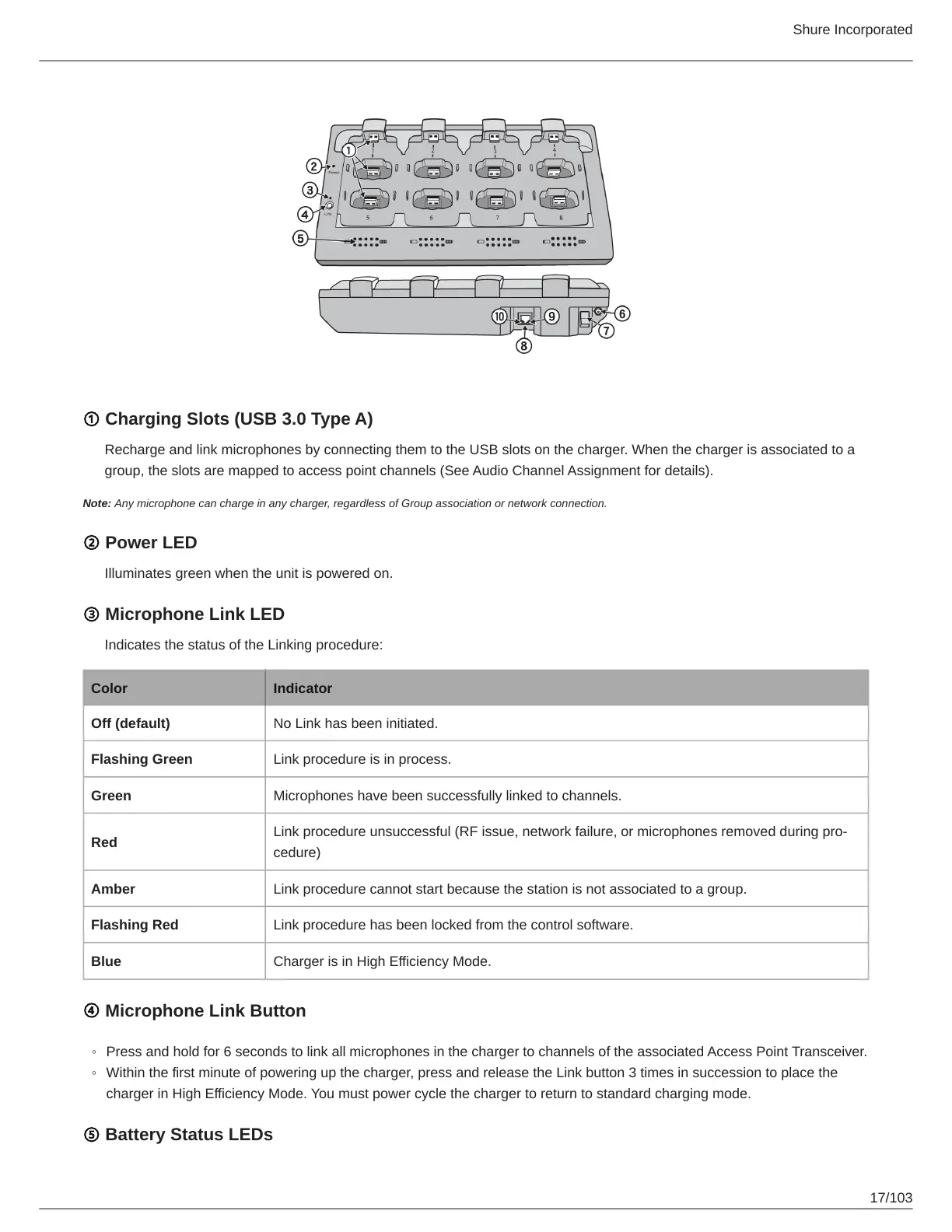

Shure Incorporated
17/103
◦
◦
① Charging Slots (USB 3.0 Type A)
Recharge and link microphones by connecting them to the USB slots on the charger. When the charger is associated to a
group, the slots are mapped to access point channels (See Audio Channel Assignment for details).
Note: Any microphone can charge in any charger, regardless of Group association or network connection.
② Power LED
Illuminates green when the unit is powered on.
③ Microphone Link LED
Indicates the status of the Linking procedure:
Color Indicator
Off (default) No Link has been initiated.
Flashing Green Link procedure is in process.
Green Microphones have been successfully linked to channels.
Red
Link procedure unsuccessful (RF issue, network failure, or microphones removed during pro
cedure)
Amber Link procedure cannot start because the station is not associated to a group.
Flashing Red Link procedure has been locked from the control software.
Blue Charger is in High Efficiency Mode.
④ Microphone Link Button
Press and hold for 6 seconds to link all microphones in the charger to channels of the associated Access Point Transceiver.
Within the first minute of powering up the charger, press and release the Link button 3 times in succession to place the
charger in High Efficiency Mode. You must power cycle the charger to return to standard charging mode.
⑤ Battery Status LEDs
