Shure Incorporated
20/103

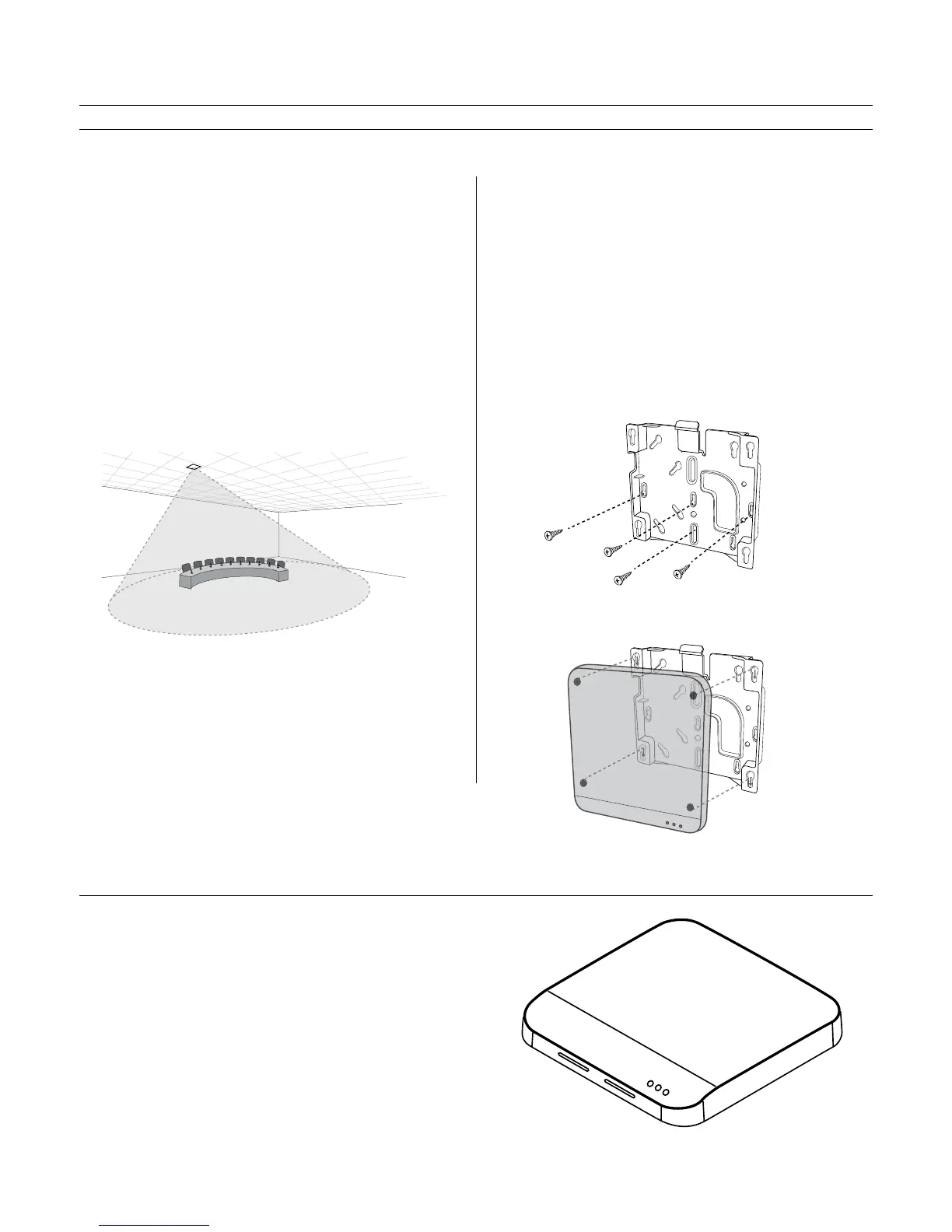

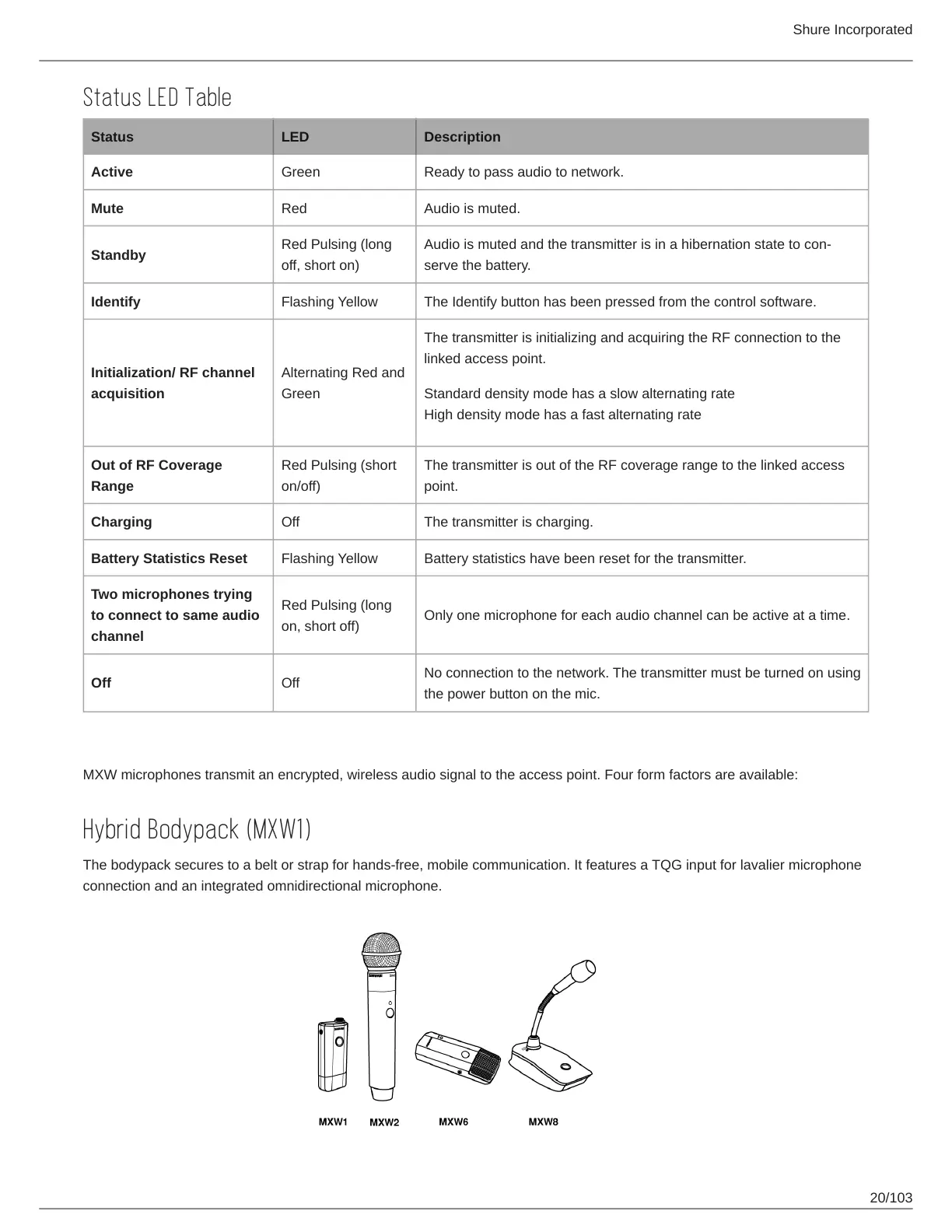

Status LED Table
Status LED Description
Active Green Ready to pass audio to network.
Mute Red Audio is muted.
Standby
Red Pulsing (long
off, short on)
Audio is muted and the transmitter is in a hibernation state to con
serve the battery.
Identify Flashing Yellow The Identify button has been pressed from the control software.
Initialization/ RF channel
acquisition
Alternating Red and
Green
The transmitter is initializing and acquiring the RF connection to the
linked access point.
Standard density mode has a slow alternating rate
High density mode has a fast alternating rate
Out of RF Coverage
Range
Red Pulsing (short
on/off)
The transmitter is out of the RF coverage range to the linked access
point.
Charging Off The transmitter is charging.
Battery Statistics Reset Flashing Yellow Battery statistics have been reset for the transmitter.
Two microphones trying
to connect to same audio
channel
Red Pulsing (long
on, short off)
Only one microphone for each audio channel can be active at a time.
Off Off
No connection to the network. The transmitter must be turned on using
the power button on the mic.
Microphone Transmitters
MXW microphones transmit an encrypted, wireless audio signal to the access point. Four form factors are available:
Hybrid Bodypack (MXW1)
The bodypack secures to a belt or strap for hands-free, mobile communication. It features a TQG input for lavalier microphone
connection and an integrated omnidirectional microphone.
