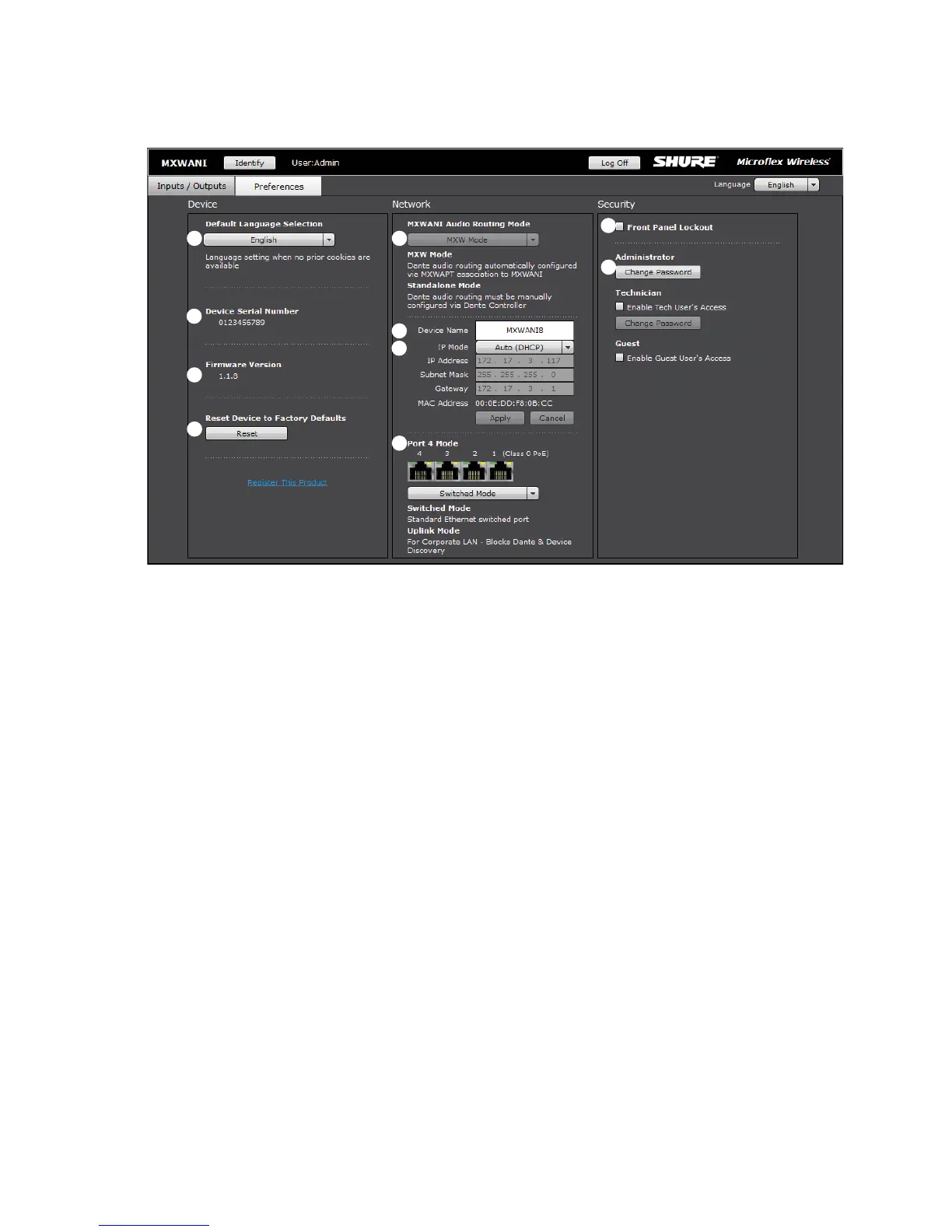

Perform a factory reset on the devices (see the Factory Default section).
On the front panel of the ANI, press both input level selection buttons at the same time and hold for five seconds. The
Channel Select LEDs will illuminate green and the audio meter will flash to indicate that the association is successful.
Channel Routing between Devices
Channels are routed when charging stations and output devices are selected to fill the APT group (2-, 4-, or 8-channels). Once
the devices are selected for the group, the channels are mapped between the charging slots, audio outputs and the wireless
receiver.
Group selections are made from the Configuration tab of the control interface.

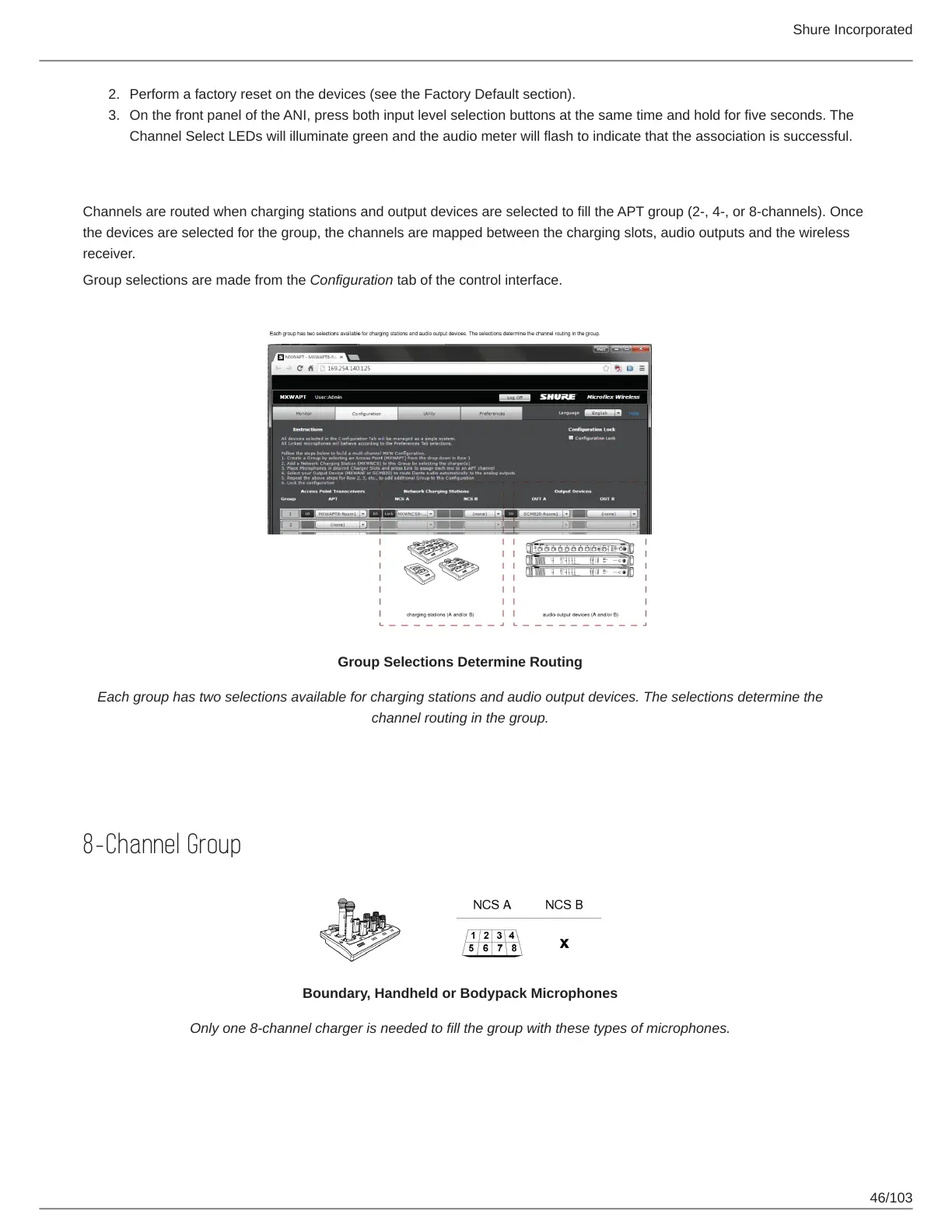

Group Selections Determine Routing
Each group has two selections available for charging stations and audio output devices. The selections determine the
channel routing in the group.
Charging Station Examples
8-Channel Group
Boundary, Handheld or Bodypack Microphones
Only one 8-channel charger is needed to fill the group with these types of microphones.
