Shure Incorporated
49/103

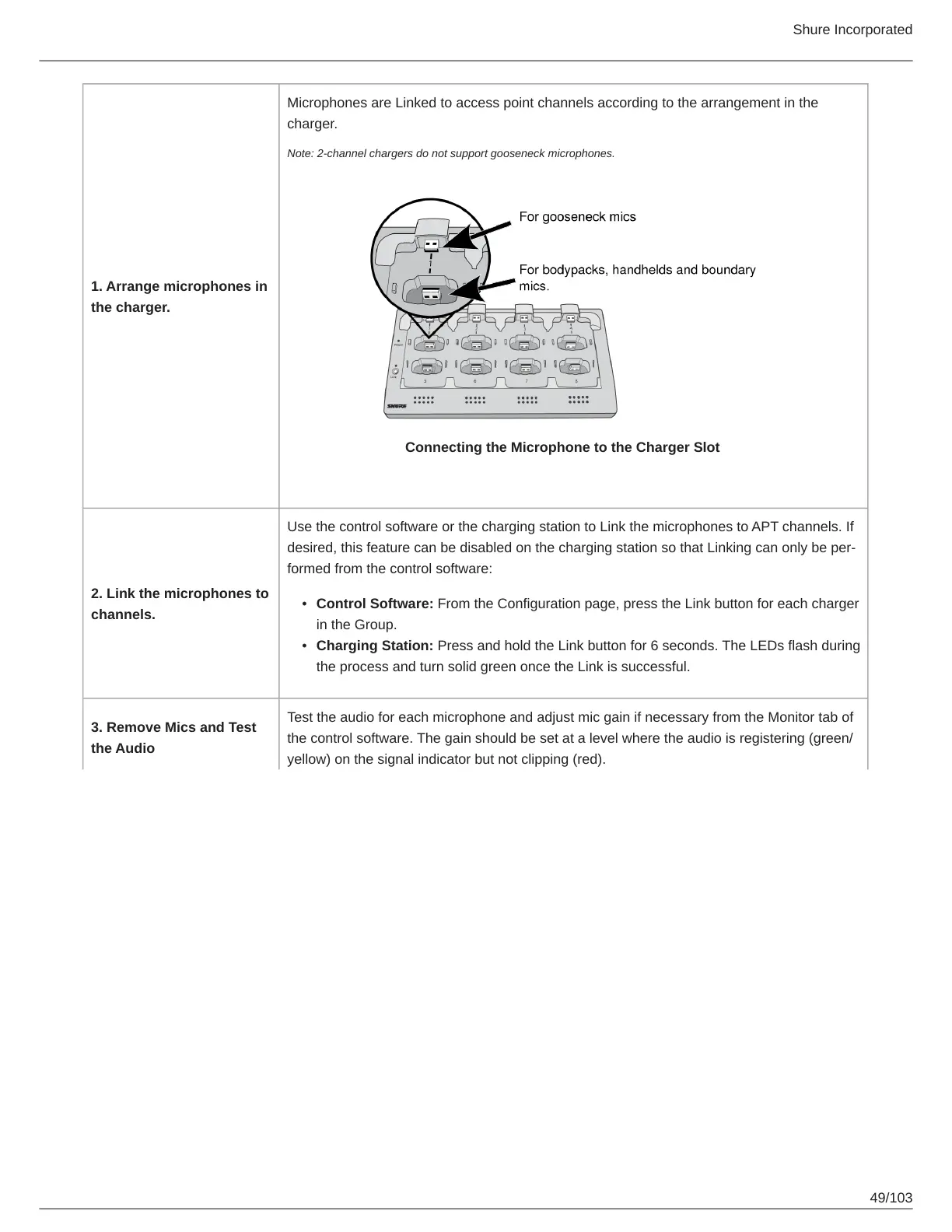

1. Arrange microphones in
the charger.
Microphones are Linked to access point channels according to the arrangement in the
charger.
Note: 2-channel chargers do not support gooseneck microphones.
Connecting the Microphone to the Charger Slot
2. Link the microphones to
channels.
Use the control software or the charging station to Link the microphones to APT channels. If
desired, this feature can be disabled on the charging station so that Linking can only be per
formed from the control software:
Control Software: From the Configuration page, press the Link button for each charger
in the Group.
Charging Station: Press and hold the Link button for 6 seconds. The LEDs flash during
the process and turn solid green once the Link is successful.
3. Remove Mics and Test
the Audio
Test the audio for each microphone and adjust mic gain if necessary from the Monitor tab of
the control software. The gain should be set at a level where the audio is registering (green/
yellow) on the signal indicator but not clipping (red).
