Shure MVL - Product Specifications; Technical Performance Metrics; Electrical and Physical Characteristics; Audio Input Connections

Signal-To-Noise Ratio
65 dB
Maximum SPL
124 dB SPL
Dynamic Range
95 dB typical
Sensitivity
-44.0 dBV at 1 kHz (Pa=94 dB SPL)
Equivalent Output Noise
29 dB A-weighted
Microphone Connector
3.5 mm (1/8") TRRS (Tip=No Connection, Ring1=No Connection, Ring2=Ground, Sleeve=Audio Output and Bias Voltage)
Microphone Bias
2.7 V DC through 2.2 K Ω resistor
Current Drain
245 µA, typical
Housing
Cast Zinc
Dimensions
15.2 mm x 5.5 mm x 132cm H x W x D
Cable Diameter
1.6 mm
Net Weight
with cable
8.0 g (0.282 oz.)
2.2K
1uF
2.7 VDC
BIAS VOLTAGE
2K
MVL
SLEEVE (Audio Output and Bias Voltage)
RING2 (Ground)
RING1 (No Connection)
SLEEVE
GND
AUDIO INPUT
RING2
TIP (No Connection)

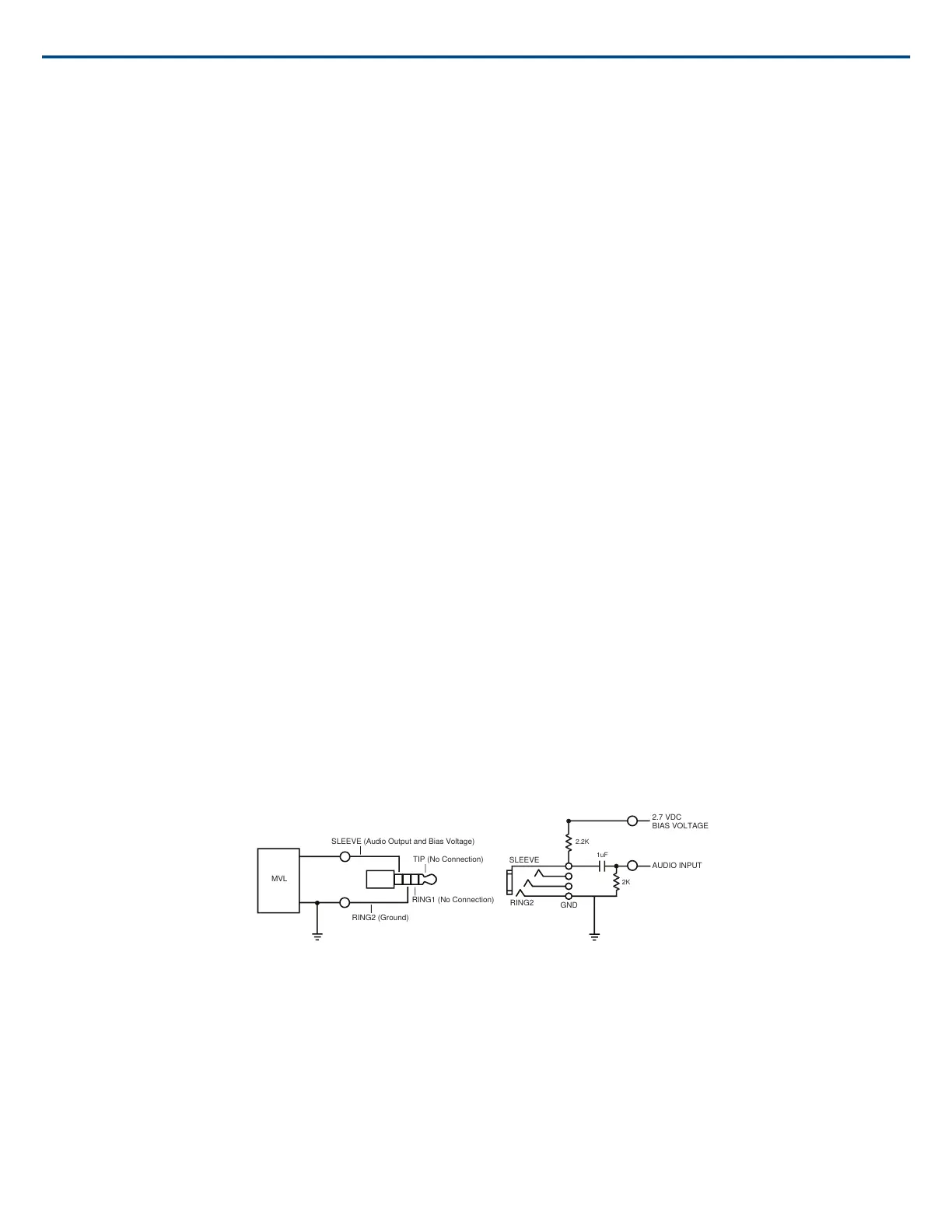

Microphone and Audio Input Connections for a Typical Device
Shure IncorporatedMVL Omnidirectional Condenser Lavalier Microphone
2018/01/032/3
