Shure PSM 300 P3T User Manual

7

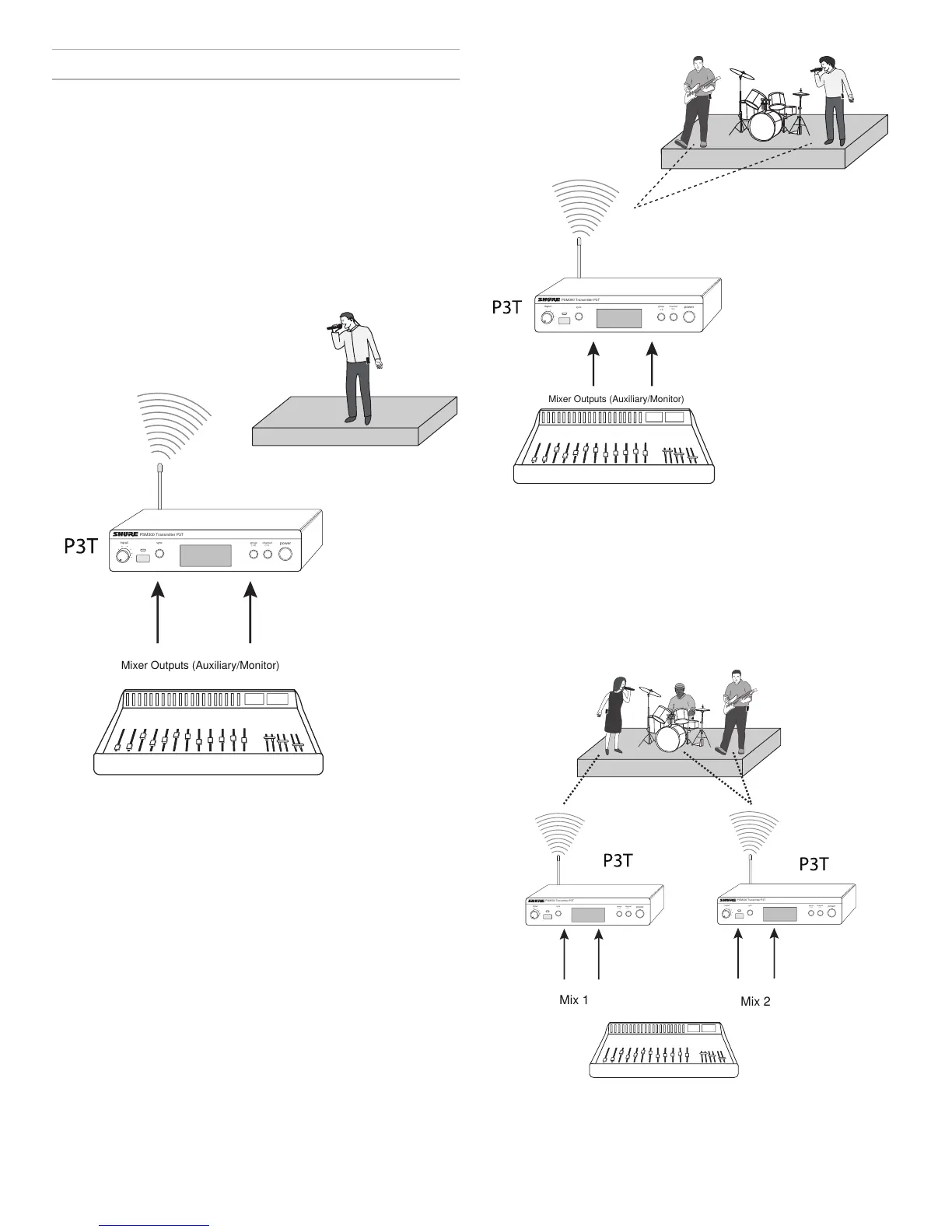

System Applications
Refer to the following PSM300 system scenarios prior to installation.
Understanding the configuration options before setting up helps to iden-
tify signal routing requirements and plan for future expansion. Specific
information on how to set up the PSM300 system and create mixes for
monitoring can be found in the "System Setup and Configuration" and
"Operation" sections of this user guide.
Single System for an Individual Performer
This configuration provides in-ear monitoring in a solo performance, or in a
group performance in which only one person requires wireless monitoring.
This system can be expanded for multiple performers by using additional
P3R bodypack receivers tuned to the same transmitter.
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Mixer Outputs (Auxiliary/Monitor)
Single Transmitter with Multiple Receivers
Multiple performers can monitor audio from the same transmitter and still
adjust the signal at their bodypack to personalize the mix. Simply tune
each bodypack to the same frequency as the transmitter and use the
MixMode knob to adjust the mix.
MixMode or Stereo Operation:
Each performer has the option of setting their bodypack to MixMode or
Stereo when the transmitter is set to Stereo-MX. When the bodypack is
powered on, it is set to stereo by default. To operate in MixMode, hold the
GROUP button when turning the power on. For information on these modes,
see "MixMode and Stereo Monitoring".
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Mixer Outputs (Auxiliary/Monitor)
Multiple Transmitters with Separate Mixes
When several performers in a group have different monitoring require-
ments, multiple PSM300 systems may be used simultaneously to send
different mixes through each transmitter. This setup requires a mixer with
two monitor/auxiliary outputs for each transmitter.
Tip: To simplify setup in applications that involve multiple transmitters,
Shure offers the P3AC antenna and power distribution system, which sup-
plies up to four PSM transmitters with power and RF from a single source.
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Mix 1
Mix 2
