Shure PSM 300 P3T User Manual

4
PSM
®
300
The PSM300 Personal Monitor System delivers wireless stereo monitoring
for improved clarity and reduced feedback over traditional stage wedges.
Performers can create their own custom mixes by adjusting the stereo
blend and overall volume level at the bodypack, resulting in lower volume
on stage and enhanced audio detail. Easy to set up and operate, PSM300
features one-touch frequency syncing and solid wireless RF stability be-
tween transmitters and receivers. With rugged, dependable hardware and
hard-working technology, Shure PSM300 Personal Monitor Systems deliv-
er a greatly improved monitoring experience on stage.
Features
• Send two channels of audio wirelessly to performers onstage
• Solid RF connection over a 300 foot (90 meter) range
• Create a personal mix on each bodypack with adjustable stereo bal-
ance or MixMode
®
two-channel mono blend.
• Up to 90 dB signal-to-noise ratio provides clear, detailed audio at any
volume
• Systems available with Shure Sound Isolating™ earphones
• One-touch scan and IR sync quickly and easily assigns a clean wireless
channel
• No complicated menus, just simple volume and mix controls that focus
on the performance
• All-metal half-rack transmitter
• Slim, lightweight bodypack attaches easily to a belt or guitar strap

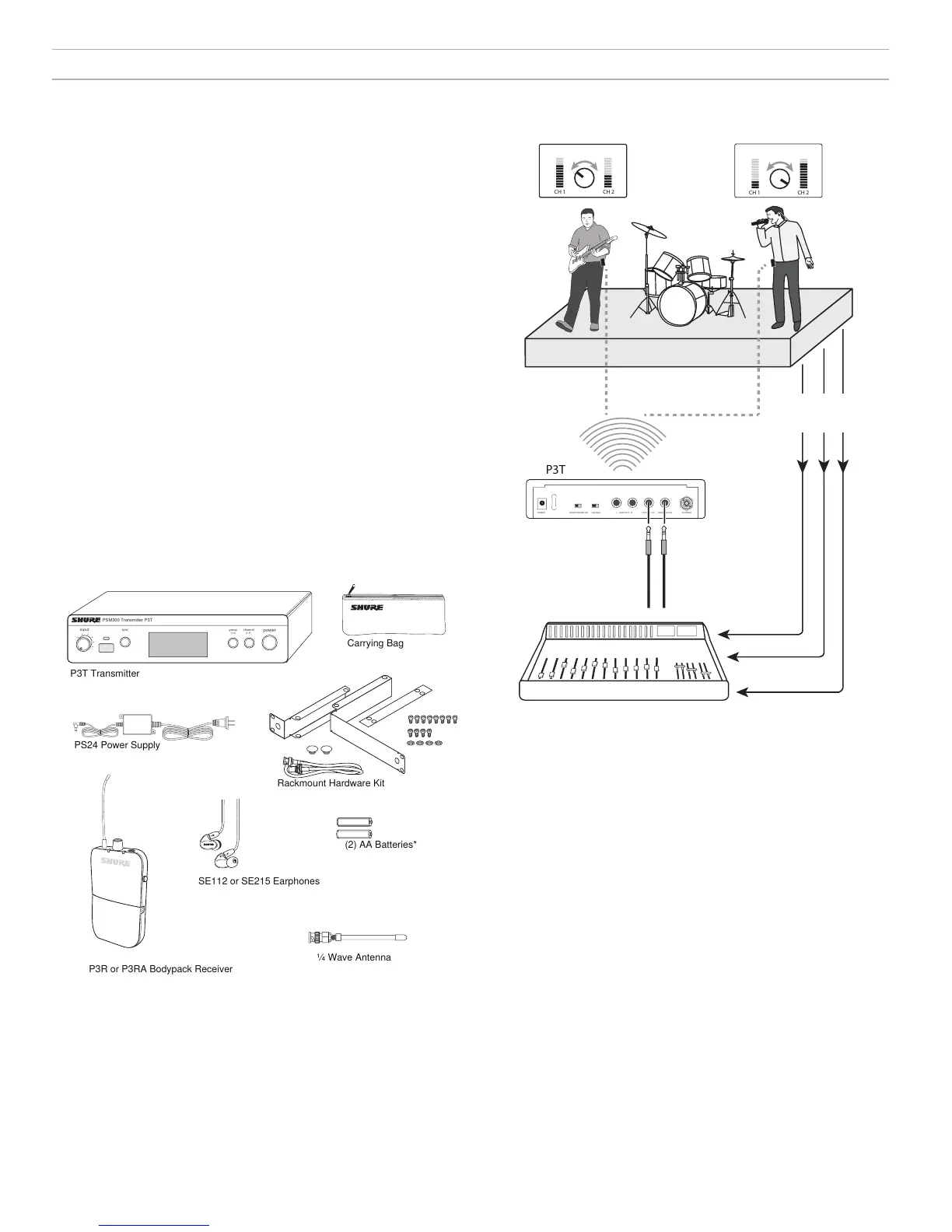

Included Components
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
P3T Transmitter
P3R or P3RA Bodypack Receiver
¼ Wave Antenna
SE112 or SE215 Earphones
Rackmount Hardware Kit
Carrying Bag
PS24 Power Supply
(2) AA Batteries*
*Not included in Argentina
① Route audio signals
Send Instrument and microphone signals from the stage to a mixer or
PA system.
② Create monitor mixes
From the mixer, create two mixes: one of just the instruments, and a
second with just the vocals. Route each of these to separate mixer
outputs and connect them to the P3T inputs.
③ Send wireless audio to the performers
Sync the bodypacks to the P3T transmitter to send the mixes to the
performers for in-ear monitoring.
④ Adjust personal mixes
Each performer uses the MixMode knob on the bodypack to control
their own mix between the instruments and vocals .
System Overview
Instrument Mix
(Channel 1)
Vocal Mix
(Channel 2)
CH 1 CH 2
CH 1 CH 2
P3T
Mixer Outputs
MONO/STEREO-MX LINE/AUX LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNAPOWER
②
①
③
④
This example shows a typical setup for musical performance. See the
System Applications section for additional examples.
