Shure PSM 300 - System Setup and Configuration; Rack Mounting; Power, Audio, and RF Connections; Scanning for the Best Open Channel

8

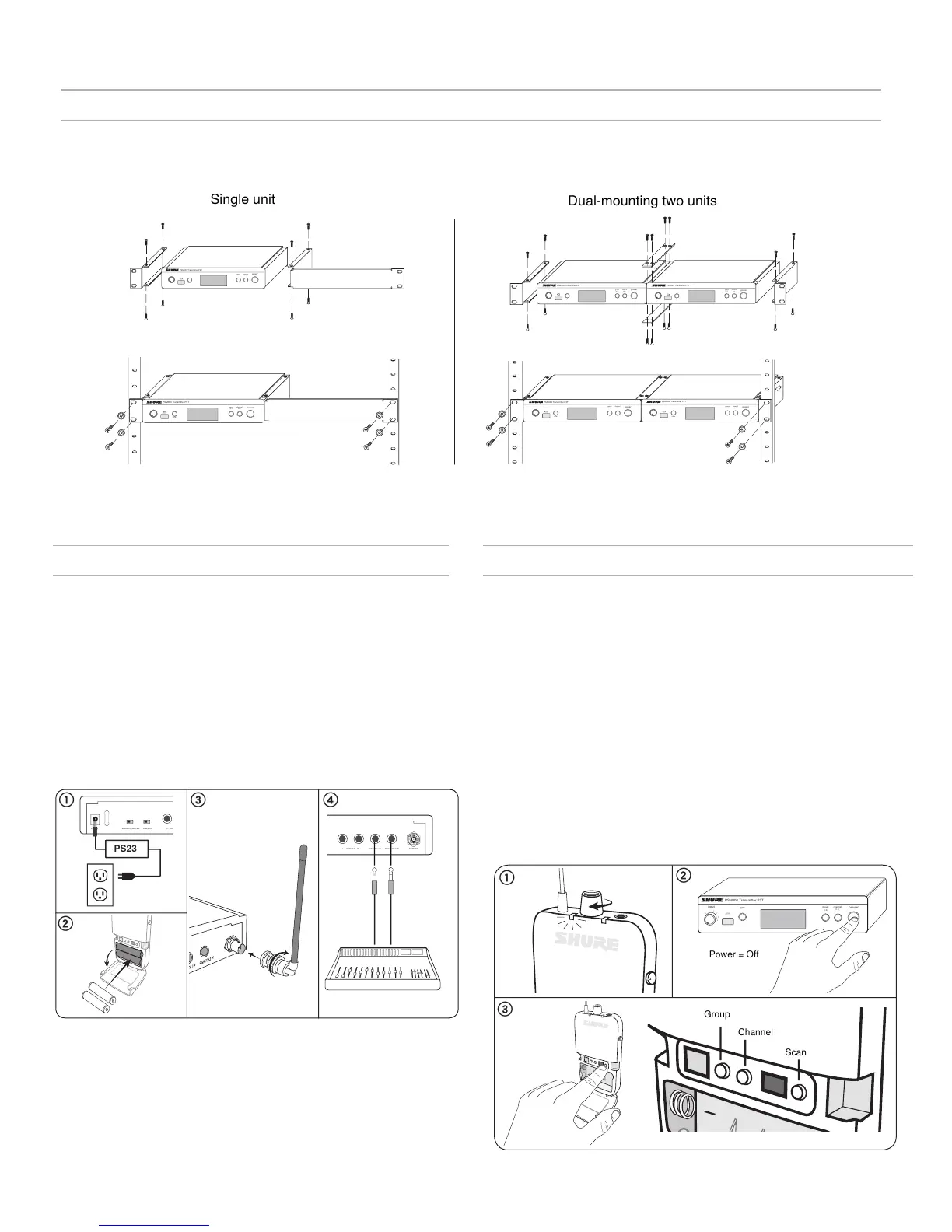

Power, Audio, and RF Connections
1. Use the power adapter to connect the P3T to an AC power source.
2. Install 2 AA batteries in the bodypack receiver.
3. Attach the antenna to the BNC antenna
connector on the P3T rear panel.
4. Connect the mixer or audio source to the P3T
audio inputs using ¼ inch balanced cables.
Important: When connecting to only one transmitter input, use the LEFT/
CH1
input. Set the transmitter to MONO to hear audio on both channels of the
receiver.
Rack Mounting
Scanning for the Best Open Channel
Follow these steps to scan the RF environment and find the best available
frequency for operation:
1. Turn on the bodypack receiver and any potential sources of
interference, including wireless systems, computers, audio
equipment, cellular phones, LED panels, and other electronic
devices that will be in use during a performance.
2. Make sure the P3T transmitter is OFF.
3. Position the receiver in the performance area and press SCAN to
survey the available channels within the current group setting.
If using several PSM300 systems or operating in a location with a high
volume of wireless devices, perform a group scan first, followed by a
channel scan:
Group Scan: Press and hold the SCAN button on the receiver.
Channel Scan: Press the SCAN button on the receiver.
௖ ௗ
௕
MONO/STEREO-MX LINE/AUX
LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNA
POWER
PS23
௔
MONO/STEREO-MX LINE/AUX
LEFT/CH.1 IN RIGHT/CH.2 INL - LOOP OUT - R ANTENNA
POWER
௖
௕
௔
power
group channel
sync
PSM300 Transmitter P3T
(1-F)
(1-9)
input
Power = Off
Group
Channel
Scan
The P3T Transmitter can be mounted in a standard 19-inch rack. Up to two units can be mounted in a single rack space. If using multiple P3T
transmitters, the Shure PA411 Antenna Combiner system can be used to consolidate and distribute all RF and power for up to four transmitters.
▇ System Setup and Configuration
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
power
group
(A-Y)
channel
(0-9)
sync
PSM300 Transmitter P3T
Single unit
Dual-mounting two units
Note: Always use both straddle bars when mounting two units.
